YZKJ-Y1-FC One-Button Mirror Touch Switch with Plug, 12W
Make plug-in make-up and dressing mirrors with one part behind the glass. YZKJ-Y1-FC takes mains through its own plug and feeds 12V to the light, so small mirrors need no separate driver and your customers dim from 10% to 100% with one button.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose YZKJ-Y1-FC
AC200-240V in, 12V DC out, supplied with the plug, so your assembly is just switch plus strip.
One touch button handles on/off and dimming from 10% to 100% on a 12W load.
At 7.4 x 4.7 x 1.3 cm it fits slim mirror backs, and it works on mercury mirrors 1-6 mm thick.
YZKJ-Y1-FC is an integrated one-button touch switch for LED mirrors: it takes AC200-240V mains through its plug and outputs 12V DC to the mirror light, so small mirrors need no separate driver. One button covers on/off and dimming from 10% to 100% with a 12W load. It is made for mercury mirrors 1-6 mm thick and measures 7.4 x 4.7 x 1.3 cm.
Key features
- Integrated supply: AC200-240V in, 12V DC out
- One touch button for on/off and dimming
- Dimming range 10%-100%
- 12W load
- For mercury mirrors 1-6 mm thick
- IP21; ABS, PVC and copper parts
- 7.4 x 4.7 x 1.3 cm, supplied with plug
Specifications
| Model | YZKJ-Y1-FC |
| Type | Integrated mirror touch switch |
| Input voltage | 220V |
| Output voltage | 12V DC |
| Max load | 12W / 60W |
| Sensing range | For 1-6 mm |
| IP rating | IP21 |
| Material | ABS, PVC, Copper |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Plug-in make-up mirrors
- Small bathroom LED mirrors
- Dressing table mirrors
OEM options for this model

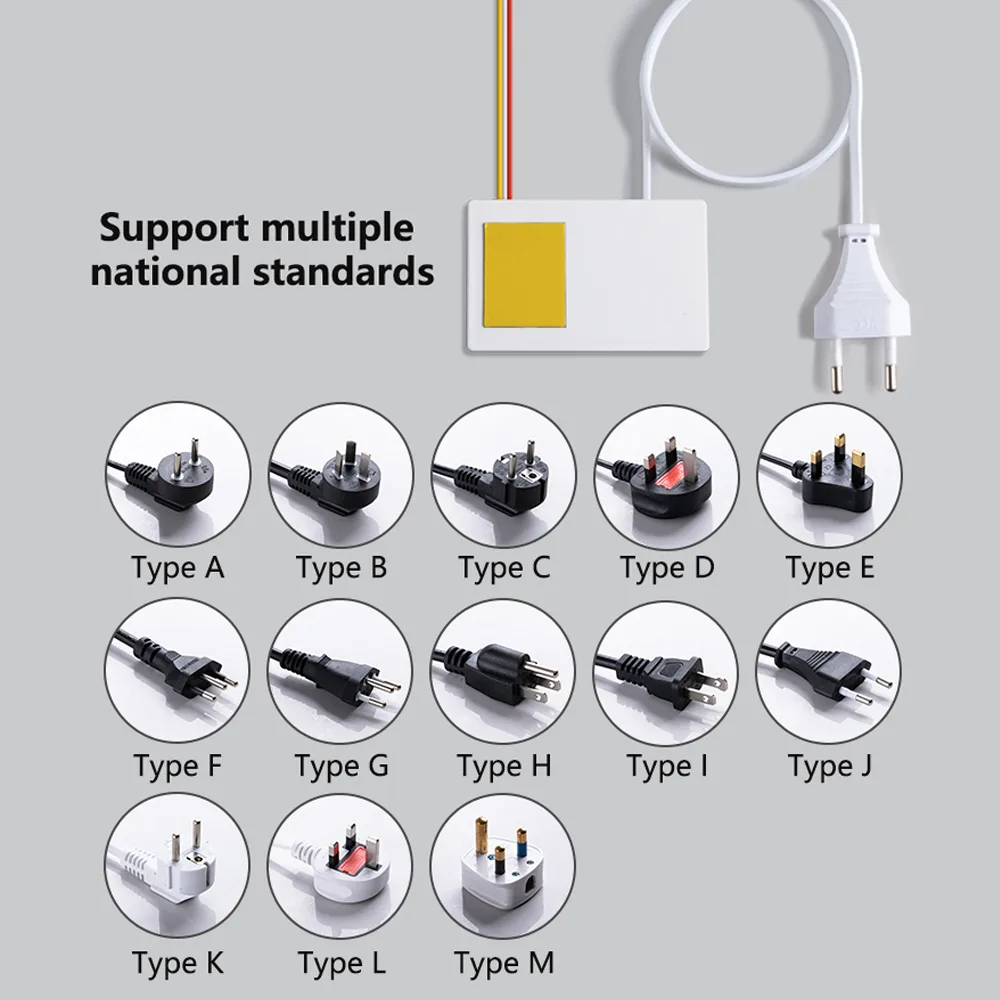

- Plug type (EU / US / UK / AU)
- Output power
- Logo and packaging
- Single-colour or 3-colour (CCT) function
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Do I need a separate LED driver?
No. The switch takes AC200-240V and supplies 12V DC to the strip, for loads up to 12W.
Which mirrors does it suit?
It is listed for mercury (silver-backed) mirrors 1-6 mm thick. Send your glass details if they differ and we confirm.
Can it run a larger mirror?
It is rated 12W. Tell us your strip wattage and, if it is higher, we suggest a switch and driver combination.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
Other mirror switches with built-in power supply
Featured▶ VideoSingle-Button Three-Colour Mirror Touch Switch, 12W Driver
▶ VideoTSP-001TSP-001 / TSP-001D Mirror Touch Switch, 12V 12W
TSP-001TSP-001 Mirror Touch Dimmer, 110V/220V Input, 12W
Featured▶ Video12V 12W One-Colour Mirror Touch Dimmer Switch
Ask about YZKJ-Y1-FC
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
