TD100 / TD100D Mirror Touch Dimmer Switch, 12-24V DC
Give your LED mirrors a clean touch control without drilling the glass. TD100 sits behind the mirror and reads a fingertip through the glass, so your customers get a modern touch point and you skip the cut-out, the wall switch and the extra wiring.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TD100
It senses through 1-5 mm mirror glass from behind, so there is no drilling step on your line and no visible switch on the finished mirror.
TD100 (single colour) and TD100D (3-colour CCT) share the same 49 x 49 x 10 mm module and wiring, so you can offer both versions from one installation layout.
SM connector and a 1.2 m lead reach the driver directly. Order from 2 pcs to test it on your mirror before you place a production order.

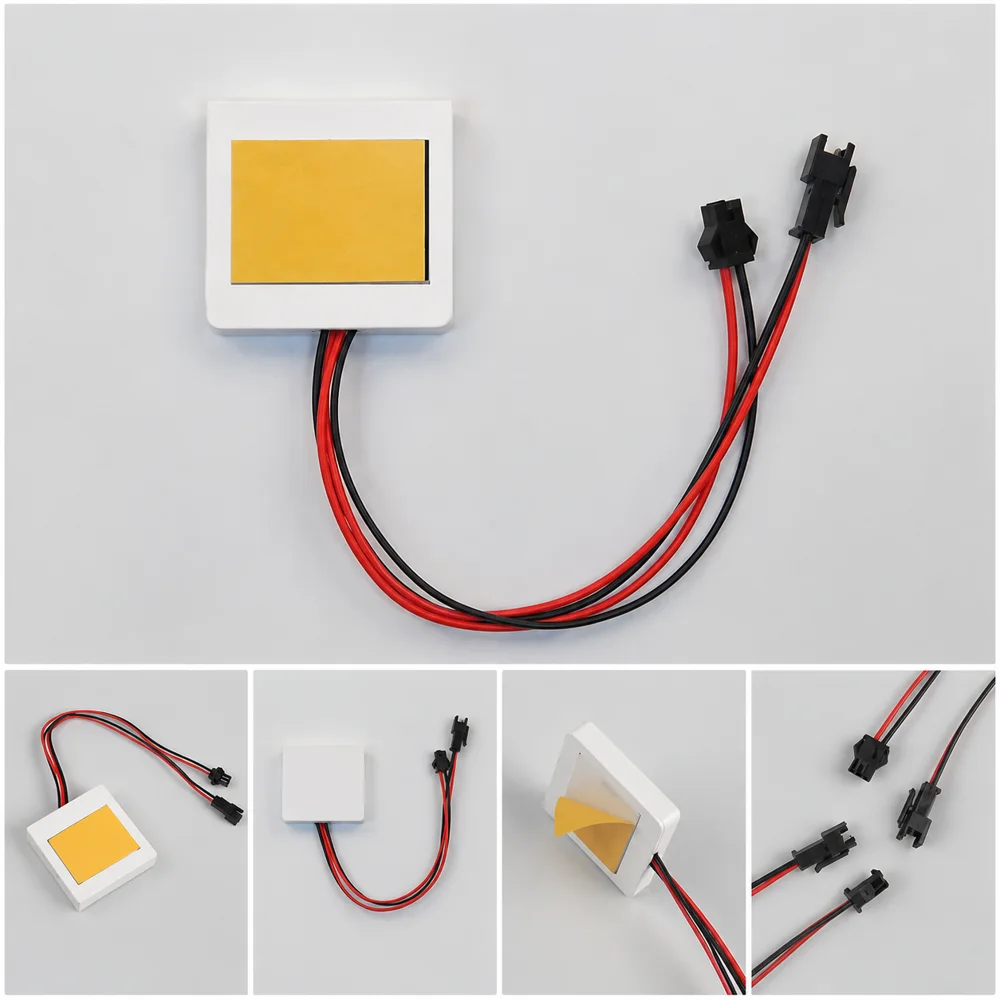

TD100 is a capacitive touch dimmer that sticks to the back of an LED mirror and senses a finger through 1-5 mm of glass, so the mirror needs no hole. It runs on 12-24V DC and switches and dims loads up to 5A. Two versions share the same 49 x 49 x 10 mm module: TD100 for single-colour dimming and TD100D for 3-colour (CCT) switching plus dimming.
Key features
- Works through 1-5 mm mirror glass; mount it behind the glass, no drilling
- TD100: touch on/off and dimming for single-colour LED strips
- TD100D: one touch steps through three colour temperatures, plus dimming
- 12-24V DC input, rated up to 5A
- White and blue indicator light shows the touch point and on/off state
- 49 x 49 x 10 mm module with SM connector; 1.2 m and 20 cm leads
- Listed at 50,000 presses mechanical life
Specifications
| Model | TD100/TD100D |
| Function | On/off + dimming |
| Input voltage | 12V-24V DC |
| Max load | 5A |
| Mirror thickness | 1-5 mm |
| IP rating | IP22 |
| Dimensions | 49 x 49 x 10 mm |
| Cable length | 1.2 m / 20 cm |
| Indicator | White light / Blue light |
| Mechanical life | 50,000 presses |
| Housing colour | Black |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Back-lit and front-lit bathroom LED mirrors
- Make-up and vanity mirrors
- Mirror cabinets with LED lighting
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
What is the difference between TD100 and TD100D?
Both use the same module and wiring. TD100 turns a single-colour LED strip on and off and dims it. TD100D also switches between three colour temperatures, for mirrors fitted with a CCT (tunable white) strip.
Will it work behind my mirror glass?
It is specified for glass 1-5 mm thick. Send us your glass thickness and coating if it is outside that range and we will confirm a suitable model.

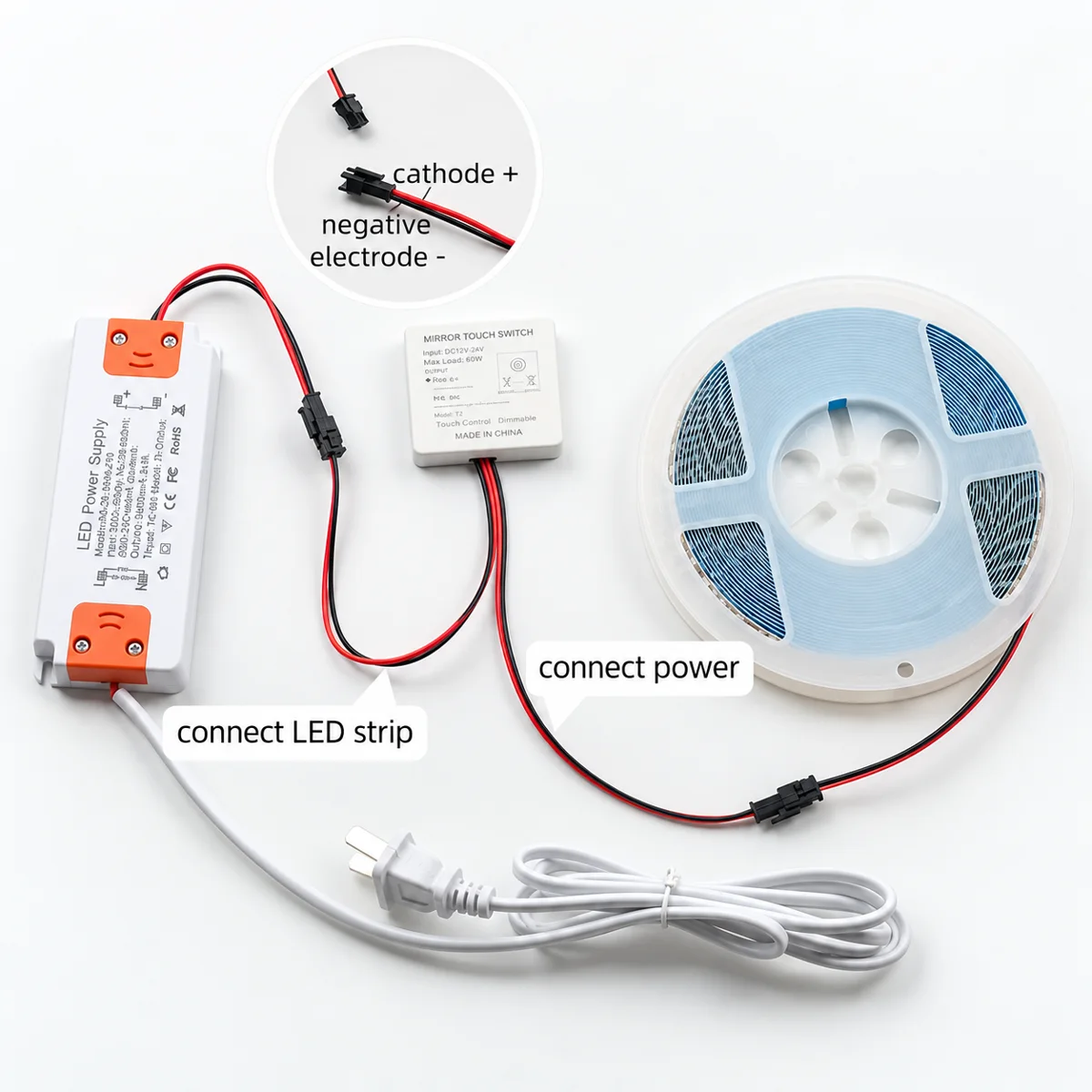

What power supply do I need?
A 12V or 24V DC constant-voltage supply that matches your LED strip. The switch itself handles up to 5A, so size the supply for the strip, not the switch. Our slim 12V supplies are listed under LED Power Supplies.
Can you put our logo on the switch or box?
Logo, packaging and lead length changes are common requests for mirror makers. Tell us your quantity and the change you need and we confirm it for this model.
