TSP-3030 Mirror Defogger Pad, 300 x 300 mm
Add an anti-fog feature that buyers notice after the first hot shower. TSP-3030 sticks to the back of the mirror and keeps a 300 x 300 mm area clear, so the mirror still works when the bathroom is full of steam.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-3030
The self-adhesive PET pad bonds straight to the mirror back with a 20 cm lead, so fitting it is one step on your line.
It warms the glass by 10-20 °C at 1.5-2.5 W/dm², roughly 13.5-22.5 W for this size, enough to stop condensation on the heated area.
Versions for 230V AC, 120V AC, 12V DC and 24V DC match mains or low-voltage mirrors. Custom sizes are available for other mirror formats.
TSP-3030 is a 300 x 300 mm heating pad that sticks to the back of a bathroom mirror and keeps that area clear of fog. The PET film warms the glass by 10-20 °C at a power density of 1.5-2.5 W/dm², which works out to roughly 13.5-22.5 W for this size. It is available for 230V AC, 120V AC, 12V DC or 24V DC supply.
Key features

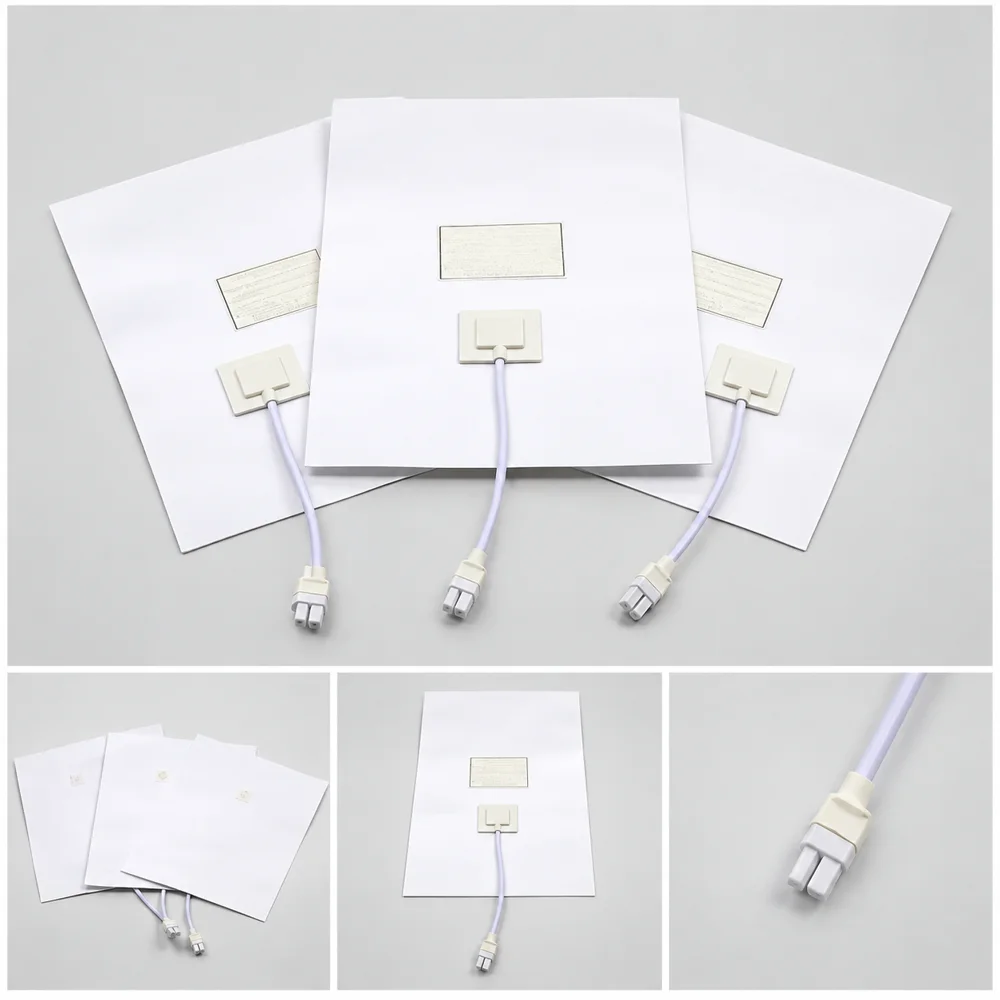

- 300 x 300 mm PET heating film, about 0.25 kg
- Raises the glass temperature by 10-20 °C to stop condensation
- 1.5-2.5 W/dm², about 13.5-22.5 W for a 300 x 300 mm pad
- Versions for 230V AC, 120V AC, 12V DC and 24V DC
- Self-adhesive: sticks directly to the back of the mirror
- 20 cm lead; custom sizes available
Specifications
| Model | TSP-3030 |
| Type | Mirror defogger pad |
| Material | Pet |
| Dimensions | 300 x 300 mm |
| Cable length | 20 cm |
| Housing colour | White |
| Supply voltage | AC 230V / AC 120V / DC 12V / DC 24V |
| Power density | 1.5-2.5 W/dm² |
| Temperature rise | 10-20 °C |
| Installation | Stick at the backside of mirror |
| Weight | 0.25 kg |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.

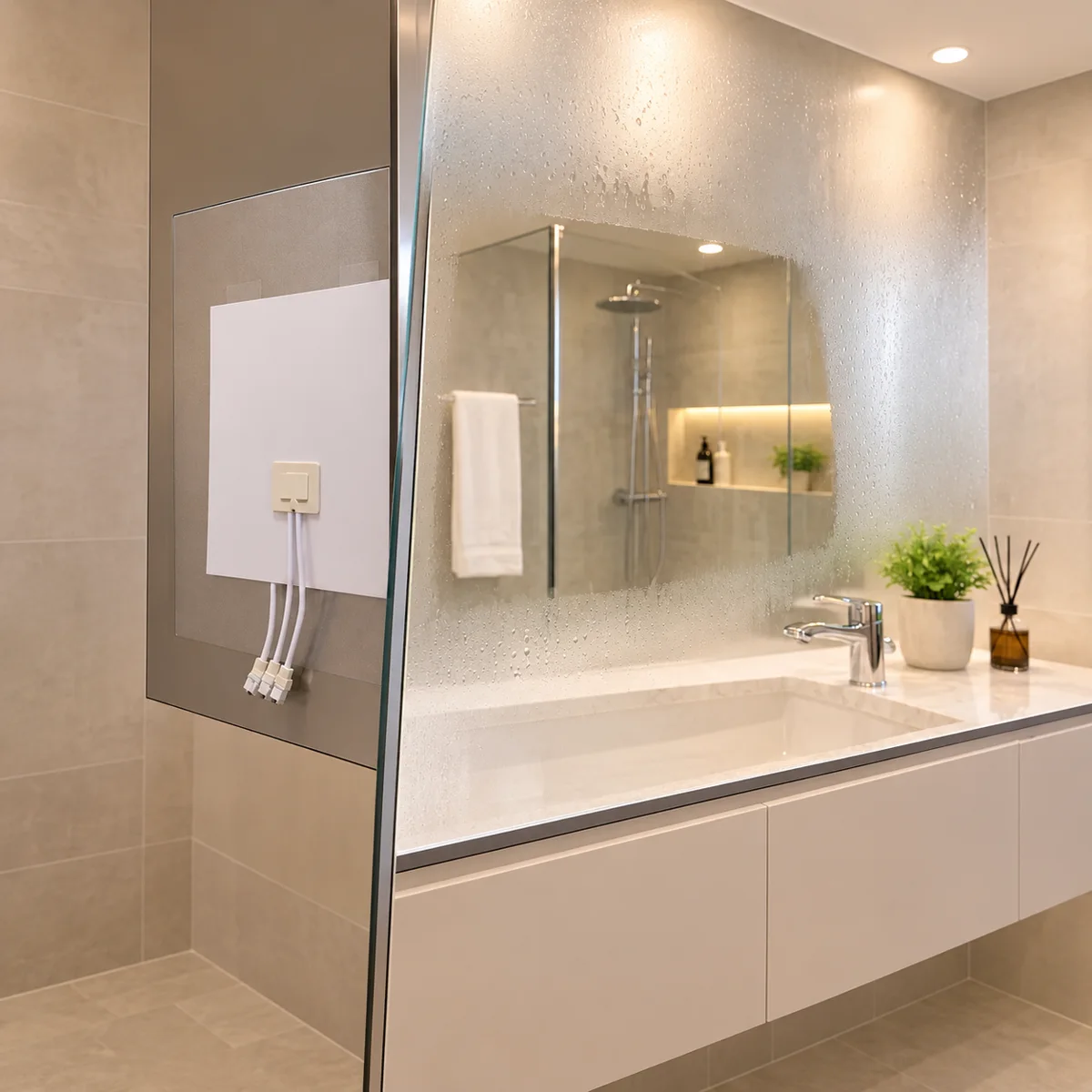

Where it is used
- LED bathroom mirrors
- Hotel bathroom mirrors
- Mirror cabinets
OEM options for this model
- Pad size and shape
- Supply voltage
- Lead length and connector
- Packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
How do I switch the defogger pad?
Most mirror makers wire it to a mirror touch switch with a defogger function, or to a relay, so it turns on with the mirror light or from its own button. See our Mirror Defogger Pads and mirror switch ranges for matching parts.
Which supply voltage should I order?
Match the voltage already used in your mirror: 230V or 120V AC for mains-powered mirrors, 12V or 24V DC if the mirror runs from an LED driver. Tell us the voltage when you ask for a quote.
Can you make other sizes?
Yes. Custom sizes are supported. Send the mirror size and the area that must stay clear and we propose a pad size.
How much power does it use?
The pad is rated 1.5-2.5 W per square decimetre. A 300 x 300 mm pad is 9 dm², so plan for roughly 13.5-22.5 W.
Other mirror defogger pads
TSP-Defogger Pad-ITSP-Defogger Pad-I Mirror Heating Pad, 300 x 400 mm
TSP-D30TSP-D30 Round Mirror Defogger Pad, 300 mm
TSP-Defogger PadTSP-Defogger Pad Custom-Size Mirror Heating Film
Ask about TSP-3030
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
