Shinechip

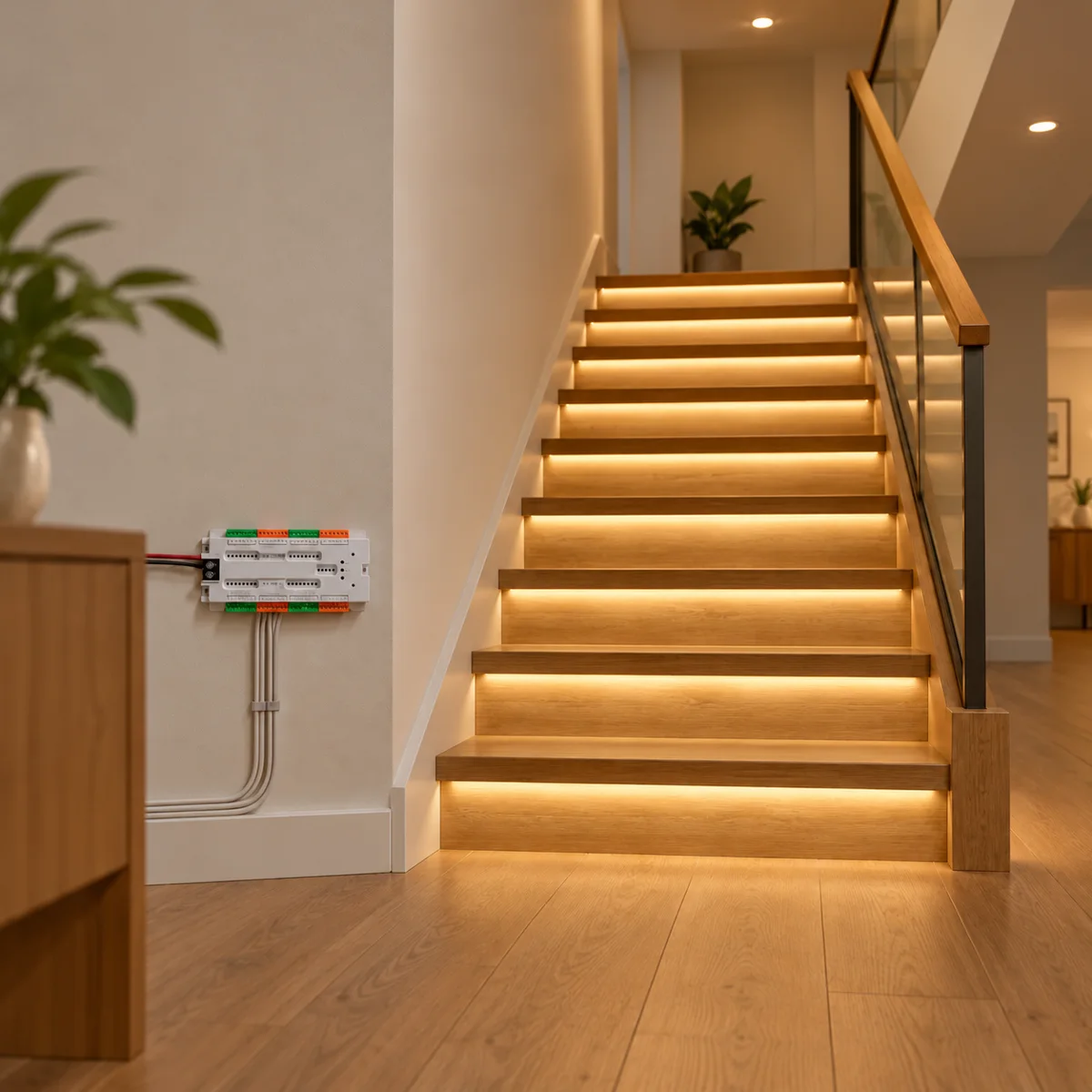

Illustration based on our product photo

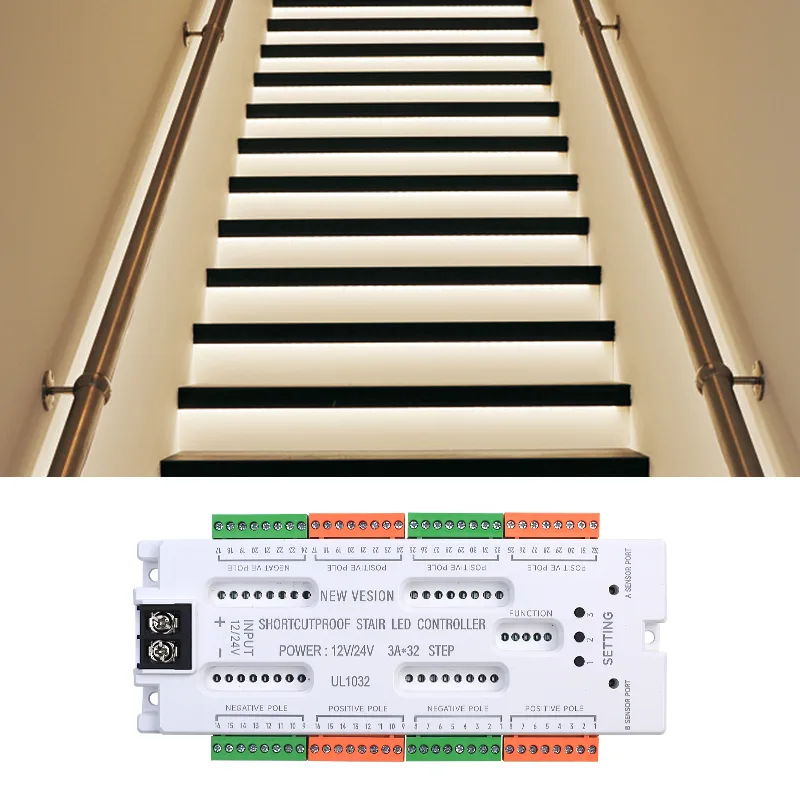

UL1032 32-Channel Stair Lighting Controller, 12/24V DC
Sell step-by-step stair lighting as a complete package. UL1032 drives up to 32 LED treads and lights them one by one when someone is detected, so your villa and hotel customers get a feature staircase without wall switches.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose UL1032
32 output channels, one per tread, so a single controller handles the whole flight on most homes and hotel stairways.
Two motion sensor heads (A and B) go at the top and bottom and detect at 1-3 m within a 120° angle, so either direction triggers the lights.
The 180 x 85 x 20 mm controller and 25 x 19 x 18 mm sensor heads hide easily. Runs on DC12V/24V, 3A; order from 1 set.
UL1032 is a stair lighting controller that drives up to 32 LED stair treads and lights them step by step when someone is detected. Two motion sensor heads (A and B) go at the top and bottom of the stairs and sense at 1-3 m within a 120° angle. It runs on DC12V or 24V at 3A, and the ABS controller measures 180 x 85 x 20 mm, IP22.
Key features
- 32 output channels, one per stair tread
- 2 motion sensor heads (A/B) for top and bottom of the stairs
- Sensing distance 1-3 m, sensing angle 120°
- DC12V/24V input, current 3A
- Controller 180 x 85 x 20 mm, sensor head 25 x 19 x 18 mm
- White ABS housing, IP22
Specifications
| Model | UL1032 |
| Type | Motion sensor |
| Input voltage | 12/24V DC |
| Sensing range | 1-3m(3.28-9.84ft) |
| IP rating | IP22 |
| Material | Abs |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Residential staircases with LED tread lights
- Hotel and villa stairways
- Basement and loft stairs
OEM options for this model
- Number of channels
- Sensor lead length
- Packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
How many steps can it control?
Up to 32 channels, so one channel per step on stairs of up to 32 treads. Tell us your step count and we confirm the set.
Where do the sensors go?
Mount sensor A at the bottom and sensor B at the top of the stairs, so the lights run upward or downward depending on where the user starts.
Which LED lights can I connect?
Low-voltage 12V or 24V LED strips or tread lights. Send us the wattage per step and we check it against the controller rating.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 1 sets for this model. Ask us about samples for testing before a volume order.
Other stair controllers
FeaturedV2-STEP-1002 32-Step Stair Light Controller with Remote, 500W
Ask about UL1032
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
