TSP-001 / TSP-001D Mirror Touch Switch, 12V 12W
Run single-colour and three-colour mirror ranges on the same switch footprint. TSP-001 and TSP-001D share one white housing and work behind 1-5 mm glass, so you change the light function without changing the mirror back layout.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-001
TSP-001 dims a single-colour strip; TSP-001D adds three-colour adjustment. Both use the same 73 x 46 x 13 mm housing.
A white and blue indicator light shows your customers where to touch, even in a dark bathroom.
12V DC with a 1A / 12W maximum load fits small mirrors and mirror cabinets. EU plug is standard, US plug on request.

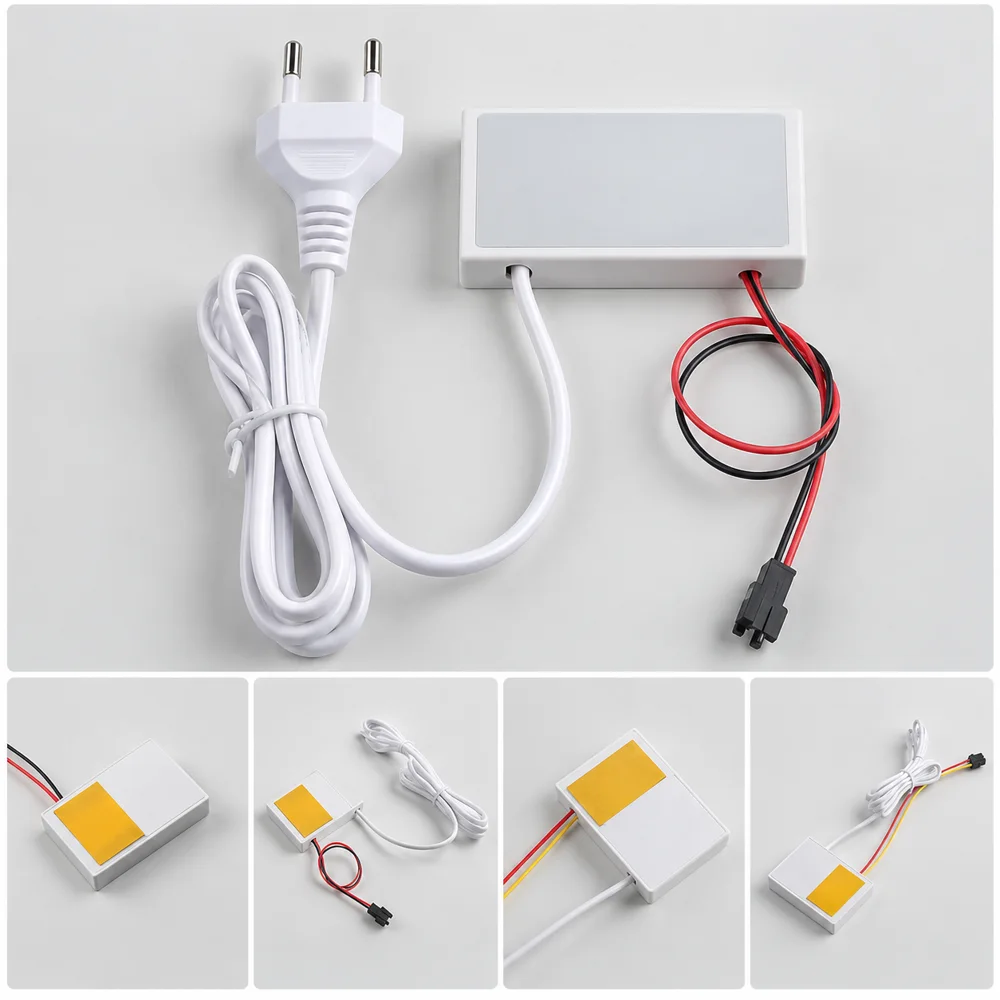

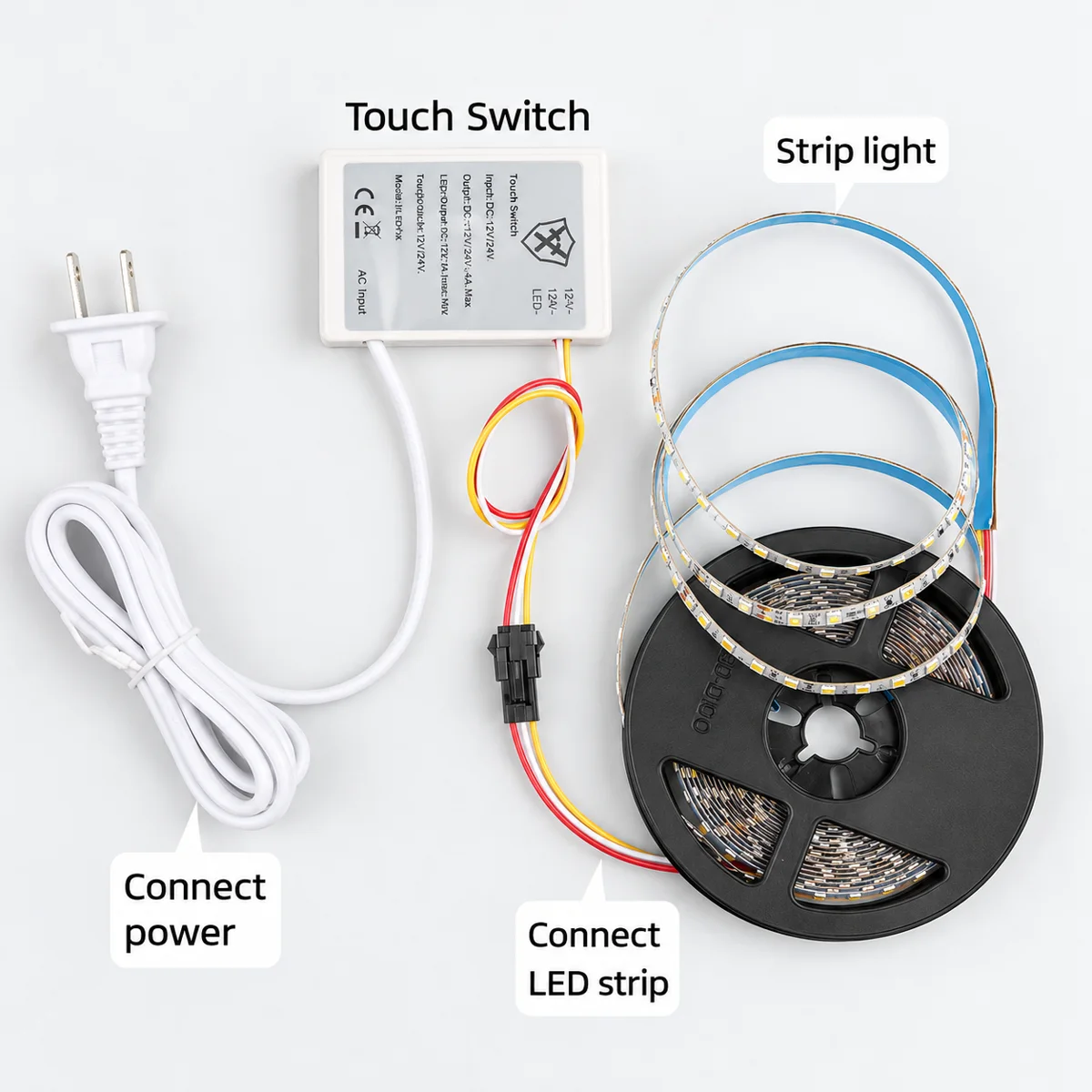

TSP-001 and TSP-001D are single-touch switches that mount behind bathroom mirror glass 1-5 mm thick and turn the mirror light on and off with one touch. Both run at 12V DC with a 1A / 12W maximum load and share a white 73 x 46 x 13 mm housing. TSP-001 dims a single-colour strip, while TSP-001D adds three-colour adjustment on the same touch point.
Key features
- Capacitive touch through 1-5 mm mirror glass
- TSP-001: on/off and dimming for single-colour strips
- TSP-001D: three-colour adjustment plus dimming
- 12V DC, 1A / 12W maximum load
- White and blue indicator light
- 73 x 46 x 13 mm white housing
- EU plug as standard, US plug on request
Specifications
| Model | TSP-001/TSP-001D |
| Function | On/off + dimming |
| Type | Capacitive touch switch |
| Input voltage | 12V DC |
| Max load | 12W |
| Mirror thickness | 1-5 mm |
| Dimensions | 73 x 46 x 13 mm |
| Indicator | White light / Blue light |
| Plug | EU plug as standard; US plug on request |
| Housing colour | White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Bathroom LED mirrors
- Make-up mirrors with short LED strips
- Mirror cabinets with one light zone
OEM options for this model
- Plug type (EU / US / UK / AU)
- Output power
- Logo and packaging
- Single-colour or 3-colour (CCT) function
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
What is the difference between TSP-001 and TSP-001D?
TSP-001 switches and dims a single-colour strip. TSP-001D also changes between three colour temperatures, so it needs a CCT strip.
Which plug comes with it?
An EU plug is standard. If you sell into the US, note US plug on your order and we supply that version.
Can you customise the switch for our mirrors?
Tell us the change you need, for example lead length, label or packaging, and your quantity, and we confirm what is possible for this model.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
