TSP001 Mirror Touch Switch with Built-in Power Supply, 12W
A mirror touch switch with the power supply built in, so a plug-in mirror needs no separate driver. TSP001 takes mains and puts out 12V for the strip, which keeps your small bathroom and make-up mirrors simple to assemble.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP001
AC110-240V in, 12V DC / 1A out for strips up to 12W, so there is one less part inside the mirror.
On/off with dimming, or on/off with dimming and colour adjustment, from a single button through 1-5 mm glass.
EU plug as standard, US plug on request; 73 x 46 x 13 mm ABS housing, IP22. MOQ 2 pcs.

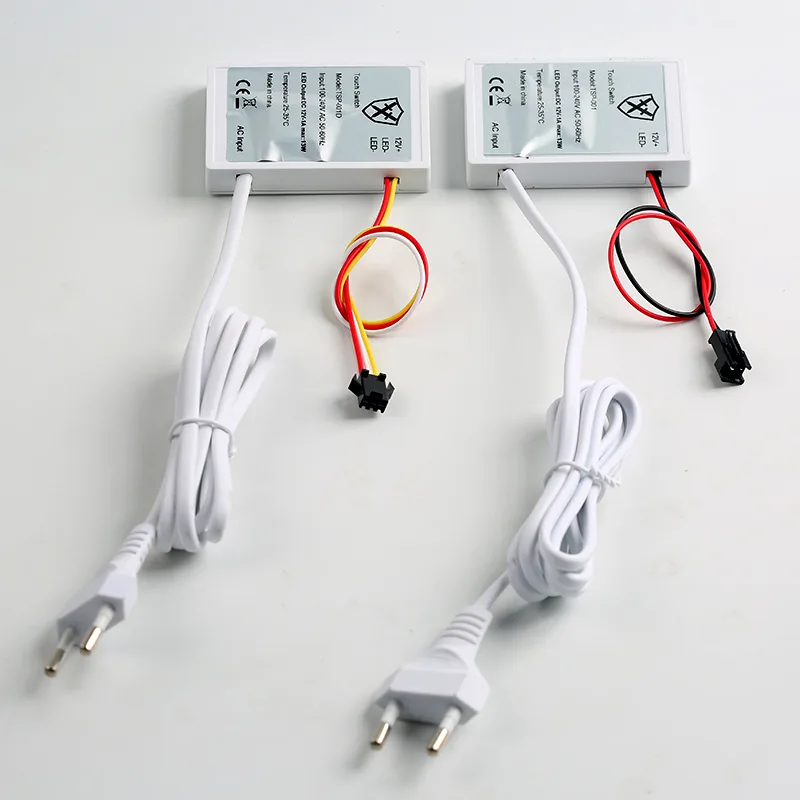

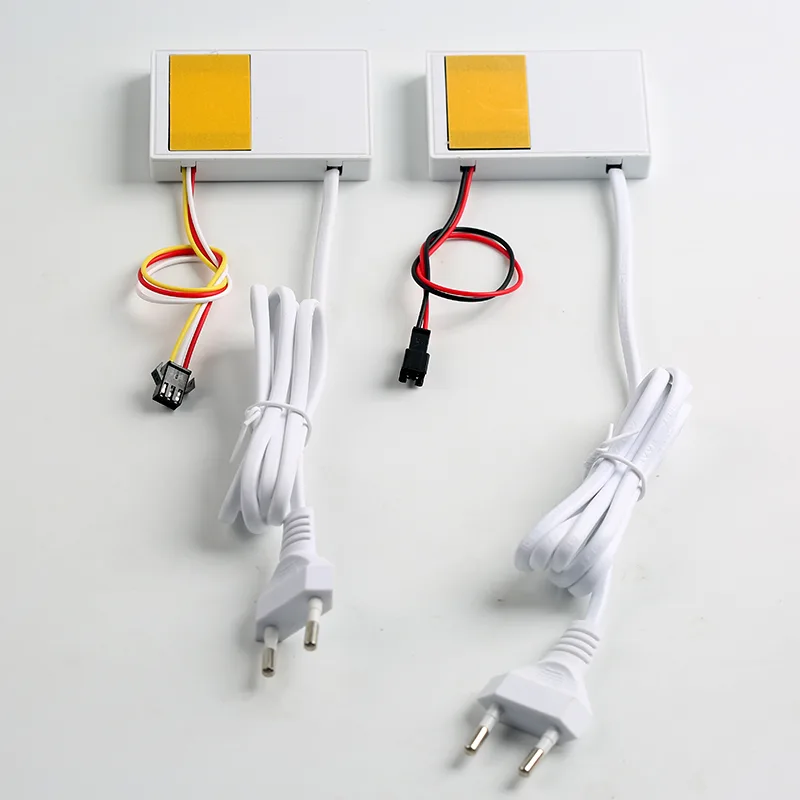

TSP001 is a single-button mirror touch switch with a built-in power supply: it takes AC110-240V input and outputs 12V DC at 1A for strips up to 12W. It works through mirror glass 1-5 mm thick and is offered in two functions, on/off with dimming, or on/off with dimming and colour adjustment. The 73 x 46 x 13 mm ABS housing is rated IP22.
Key features
- Built-in power supply: AC110-240V in, 12V DC / 1A out
- Single touch button
- On/off with dimming, or with colour adjustment as well
- Works through 1-5 mm mirror glass
- 73 x 46 x 13 mm ABS housing, IP22
- White and blue indicator light
- EU plug as standard, US plug on request
Specifications
| Model | TSP001 |
| Input voltage | 220V / 110V / 12V |
| Max load | 12W |
| Mirror thickness | 1-5 mm |
| IP rating | IP22 |
| Material | Abs |
| Indicator | White light / Blue light |
| Plug | EU plug as standard; US plug on request |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Plug-in bathroom LED mirrors
- Hotel bathroom mirrors
- Make-up mirrors
OEM options for this model
- Plug type (EU / US / UK / AU)
- Output power
- Logo and packaging
- Single-colour or 3-colour (CCT) function
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Do I need a separate LED driver?
No. It takes AC110-240V and supplies 12V DC to strips up to 12W.
Which function should I choose?
Choose on/off with dimming for a single-colour strip, or the colour-adjustable function for a CCT strip.
Which plug comes with it?
EU plug as standard; note US plug on your order if you need it.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
