TSP-003D Mirror Switch with Time & Temperature Display, 12V
Sell a smart vanity mirror without sourcing a separate clock, driver and switch. TSP-003D shows time and temperature on the glass, adjusts three colours and dims, and takes mains power directly, so the mirror needs just this panel and a CCT strip.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-003D
A time and temperature readout on the mirror gives your model a visible smart-mirror feature in the showroom.
110-240V AC input with 12V DC output at 1A / 12W, so small mirrors need no separate driver.
Two touch buttons in a 140 x 78 x 13 mm IP22 white panel; a single-colour version is also listed. EU plug standard, US on request.

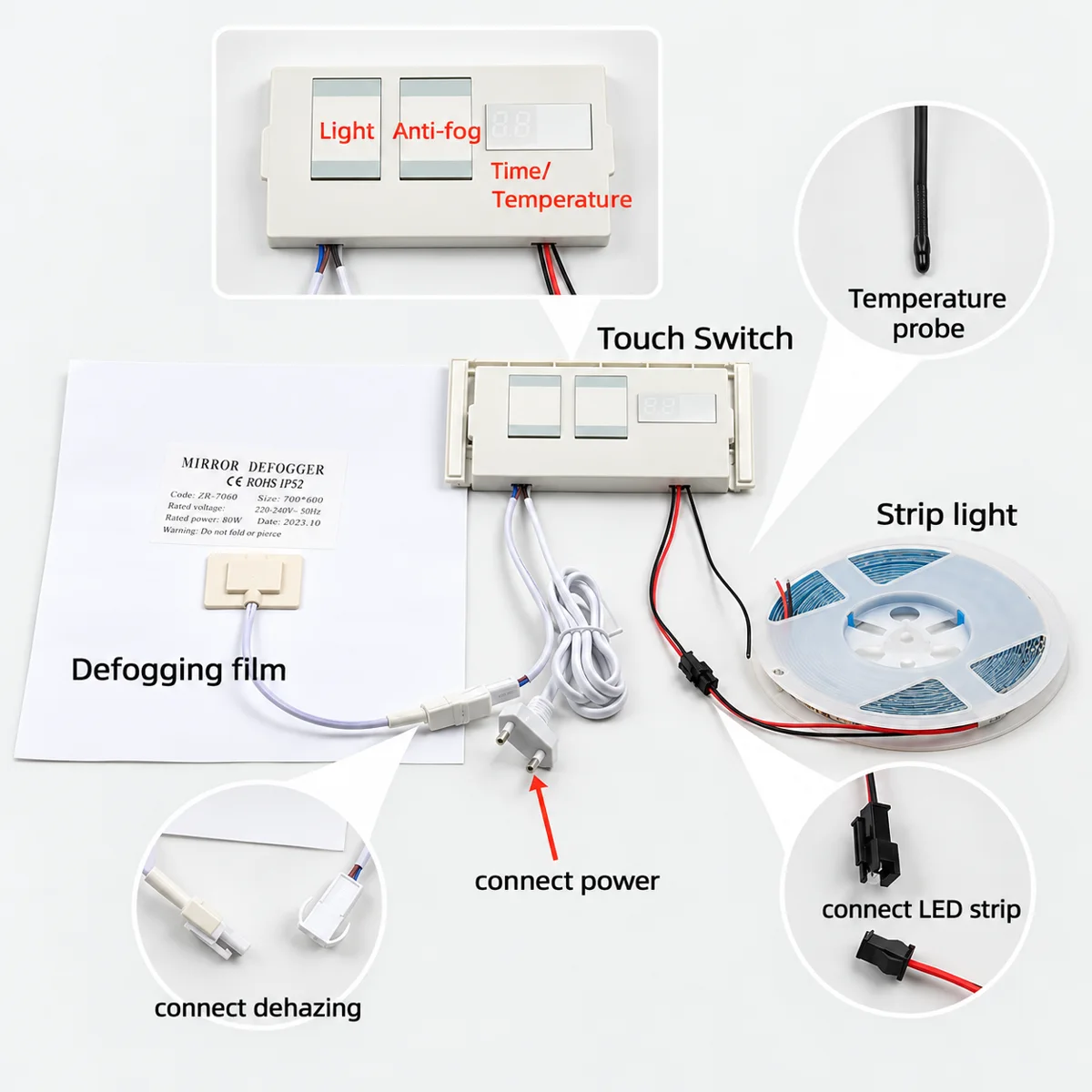

TSP-003D is a two-button mirror touch switch with a built-in time and temperature display, made for bathroom mirrors with glass 1-5 mm thick. It takes 110-240V AC and outputs 12V DC to the LED strip, with a 1A / 12W maximum load, three-colour adjustment and dimming. The white panel measures 140 x 78 x 13 mm and is rated IP22.
Key features
- Time and temperature display on the mirror
- Two touch buttons
- Three-colour adjustment and dimming; single-colour version listed
- 110-240V AC input, 12V DC output, 1A / 12W
- Works through 1-5 mm mirror glass
- 140 x 78 x 13 mm, IP22
- EU plug as standard, US plug on request
Specifications
| Model | TSP-003D |
| Function | 3-colour (CCT) + dimming |
| Type | Capacitive touch switch |
| Input voltage | 12V DC |
| Output voltage | 12V DC |
| Max load | 12W |
| Mirror thickness | 1-5 mm |
| IP rating | IP22 |
| Dimensions | 140 x 78 x 13 mm |
| Indicator | White light / Blue light |
| Plug | EU plug as standard; US plug on request |
| Housing colour | White, White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Bathroom LED mirrors with a clock display
- Hotel bathroom mirrors
- Smart vanity mirrors
OEM options for this model
- Plug type (EU / US / UK / AU)
- Output power
- Logo and packaging
- Single-colour or 3-colour (CCT) function
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
How are the two buttons assigned?
The two touch buttons run the light functions. Send your mirror layout and we confirm the button assignment for your build.
Do I need a separate driver?
No. It takes 110-240V AC and supplies 12V DC to strips up to 12W.
Can it be customised?
The listing marks it as customisable. Tell us the change and quantity and we confirm what we can do.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
