Shinechip
TSP-002-2412 Mirror Touch Switch with Clock and Defogger, 12V
A compact mirror switch with clock, temperature and defogger control for small 12V bathroom mirrors. Two buttons handle light, dimming and anti-fog, giving your entry-level mirrors features buyers usually see on bigger models.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-002-2412

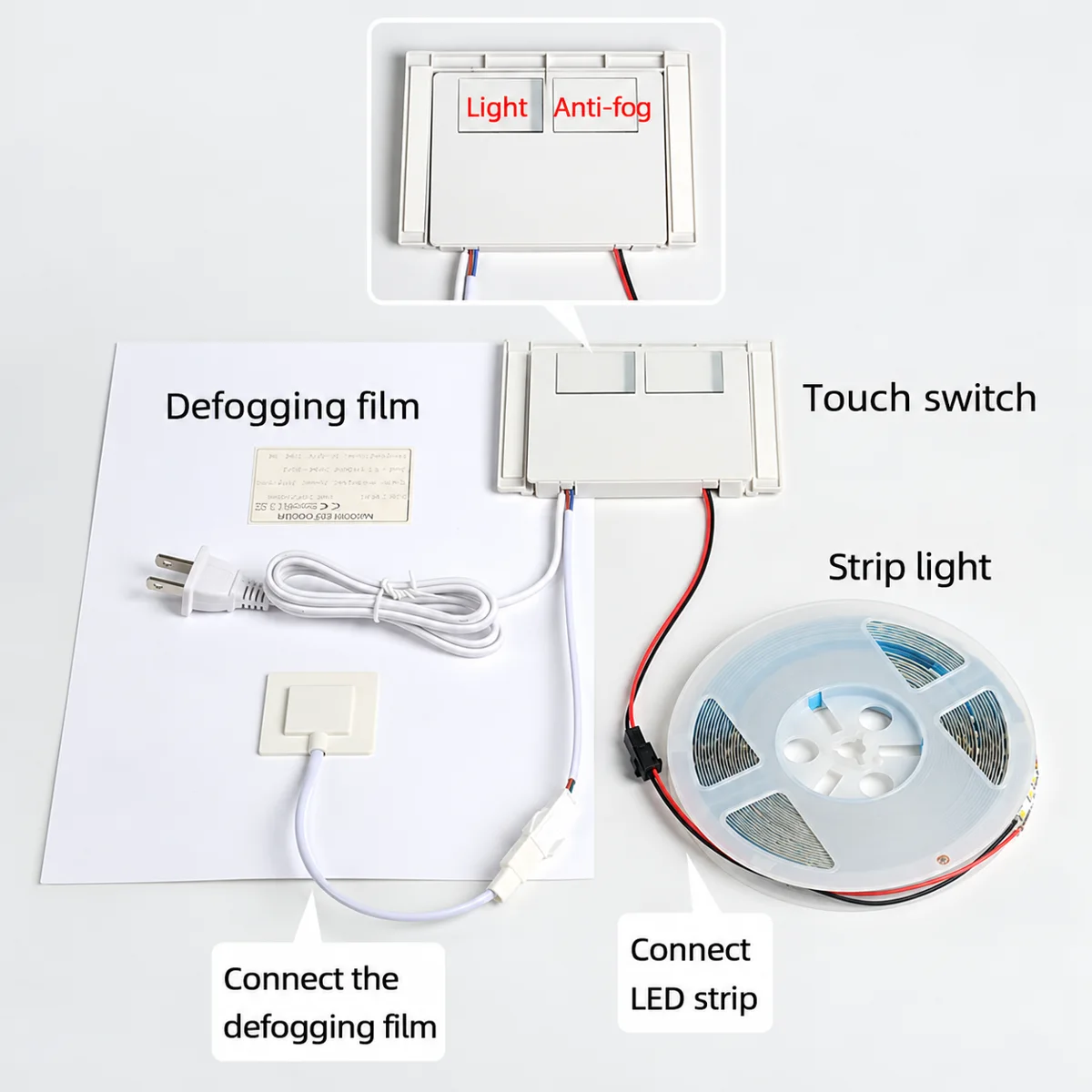

On/off, dimming and defogger control from two buttons, read through 1-5 mm of mirror.
A display behind the glass adds a selling point to compact and make-up mirrors.
12V DC at 1A / 13W, a 120 x 90 x 13 mm module, EU plug as standard or US on request. MOQ 2 pcs.
TSP-002-2412 is a two-button mirror touch switch with a clock and temperature display, for small 12V bathroom mirrors. It handles on/off, dimming and the defogger, and reads touch through 1-5 mm of mirror. The module measures 120 x 90 x 13 mm, is rated 12V DC at 1A / 13W, and ships with an EU plug as standard or a US plug on request.
Key features
- On/off, dimming and defogger control from two buttons
- Clock and temperature display behind the glass
- 12V DC, rated 1A / 13W: suits low-power mirror lighting
- Works through 1-5 mm mirror glass
- 120 x 90 x 13 mm module, IP22
- White and blue indicator light
- EU plug as standard, US plug on request
Specifications
| Model | TSP-002-2412 |
| Type | Mirror touch sensor switch |
| Input voltage | 12V DC |
| Max load | 13W |
| Sensing range | 1-5 mm |
| Mirror thickness | 1-5 mm |
| IP rating | IP22 |
| Dimensions | 120 x 90 x 13 mm |
| Indicator | White light / Blue light |
| Plug | EU plug as standard; US plug on request |
| Housing colour | White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used

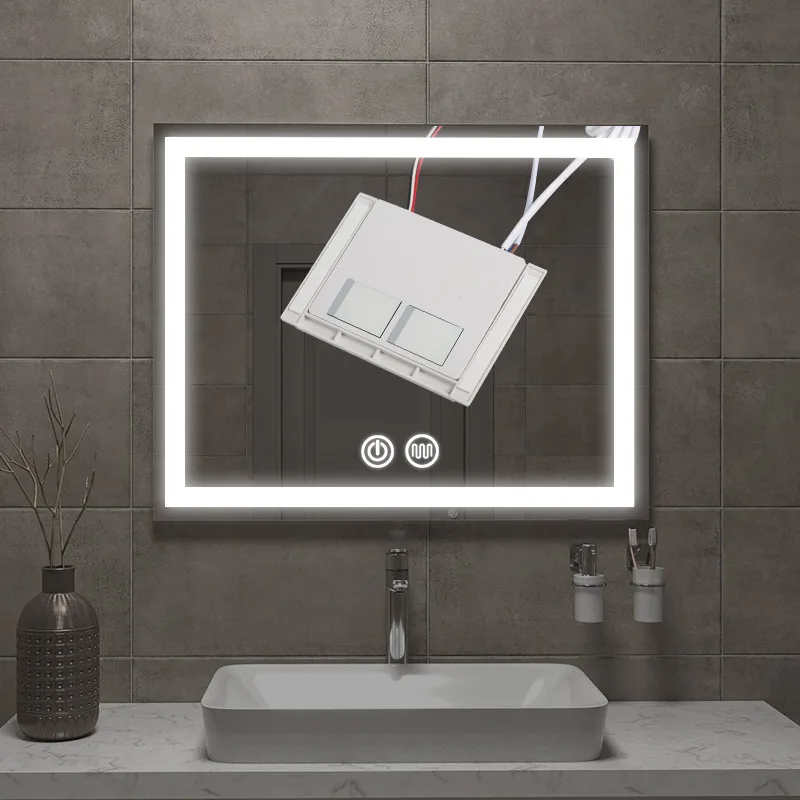

- Compact LED bathroom mirrors
- Make-up mirrors with a time display
- Hotel bathroom mirrors
OEM options for this model
- Plug type (EU / US / UK / AU)
- Output power
- Logo and packaging
- Single-colour or 3-colour (CCT) function
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is 13W enough for my mirror?
It is rated 1A / 13W at 12V, so it fits small mirrors with short strips. For larger mirrors, send us the strip and pad wattage and we suggest a higher-rated mirror switch.
Which plug does it come with?
An EU plug is standard. Note US plug in your order and we supply that instead.
Will it read through my mirror?
It is specified for 1-5 mm mirror glass. Tell us your glass thickness if it differs and we confirm.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
