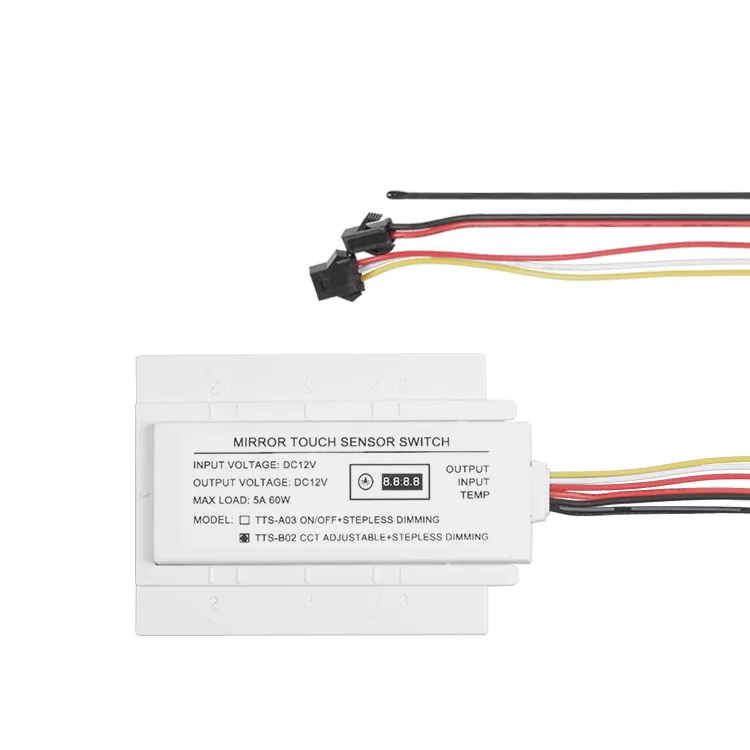

TTS-A03 / TTS-B02 Mirror Touch Dimmer with Clock, 12V 60W
Add a clock and temperature display to your bathroom mirrors with nothing more than a one-button dimmer. TTS-A03 / TTS-B02 build the display into the switch, so users see the time on the glass and you fit one slim unit.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TTS-A03
Clock and temperature display sit in the same unit as the one-button dimmer, so there is no extra display board to wire.
The white ABS unit is only 97 x 42 x 8 mm, with a 20 cm lead, for mirrors with little depth behind the glass.
12V DC up to 5A / 60W, through 1-5 mm mirror glass. Order from 2 pcs to check the display position.
TTS-A03 and TTS-B02 are one-button capacitive dimmers for bathroom mirrors with a clock and temperature display built into the switch. They run on 12V DC with a 5A / 60W maximum load and work through mirror glass 1-5 mm thick. The white ABS unit measures 97 x 42 x 8 mm, is rated IP20 and has a 20 cm lead.
Key features
- Clock and temperature display
- One touch button for on/off and dimming
- 12V DC, up to 5A / 60W
- Works through 1-5 mm mirror glass
- 97 x 42 x 8 mm white ABS housing, IP20
- White and blue indicator light; 20 cm lead
Specifications
| Model | TTS-A03/TTS-B02 |
| Type | Capacitive touch switch |
| Input voltage | 12V DC |
| Max load | 60W |
| Mirror thickness | 1-5 mm |
| IP rating | IP20 |
| Material | Abs |
| Dimensions | 97 x 42 x 8 mm |
| Cable length | 20 cm |
| Indicator | White light / Blue light |
| Housing colour | White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Bathroom LED mirrors with a clock display
- Hotel bathroom mirrors
- Vanity mirrors
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
What is the difference between TTS-A03 and TTS-B02?
The listing pairs an on/off and dimming version with a three-colour adjustable version. Tell us your strip type and we confirm which one to order.
Which power supply do I need?
A 12V DC supply sized for the strip, kept within 60W.
Can you change the lead length?
Tell us the length and connector you need with your quantity and we confirm.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 2 pcs for this model. Ask us about samples for testing before your first order.
Other mirror touch switches
Featured▶ VideoTD100TD100 / TD100D Mirror Touch Dimmer Switch, 12-24V DC
FeaturedTD102DTD102D 3-Colour Mirror Touch Dimmer, 12V 36W IP22
TD103TD103 / TD103D Mirror Touch Switch with Defogger, 12V 60W
TD102TD102 / TD102D Aluminium Mirror Touch Dimmer, 12-24V 36W
Ask about TTS-A03
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
