TSP-2835-5630-10 SMD5630 LED Strip, 12V 12W/m, 10000K
A high-output cold-white strip for counters, shelving and storage areas where brightness matters more than colour accuracy. It gives your project quotes plenty of light per watt at 12V.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-2835-5630-10
Listed at 100-110 lm/W with 60 SMD5630 LEDs per metre at 12W/m.
10000K cold white, CRI 70, suits display counters, garages and storage spaces.
Remote, Wi-Fi or manual button control, dimmable, on a 10 mm copper PCB. MOQ 50 m.

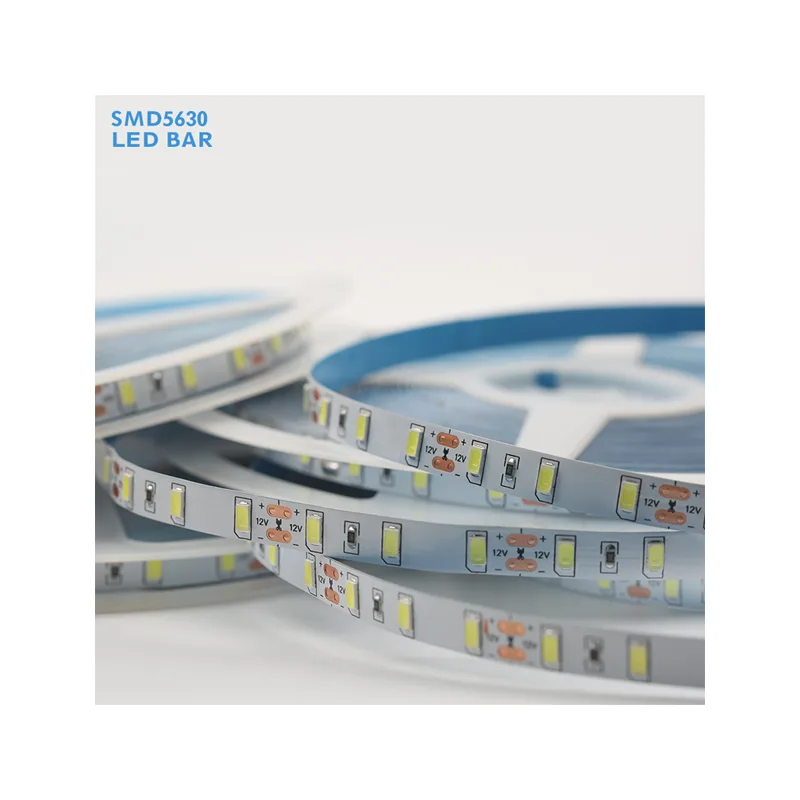

TSP-2835-5630-10 is a high-output 12V strip with 60 SMD5630 LEDs per metre on a 10 mm copper PCB, in a cold white 10000K. It draws 12W/m and is listed at 100-110 lm/W with CRI 70, for areas that need plenty of light rather than colour accuracy. The strip is IP20, dimmable, rated for 50,000 hours and supplied on 20 m rolls.
Key features
- 60 SMD5630 LEDs/m on 10 mm copper PCB
- 12V DC, 12W/m
- Cold white 10000K, CRI 70
- Listed at 100-110 lm/W
- Remote, Wi-Fi or manual button control options, dimmable
- IP20, 20 m per roll, rated life 50,000 hours
Specifications
| Model | TSP-2835-5630-10 |
| Type | SMD2835 flexible LED strip |
| Input voltage | 12V DC |
| Max load | 12W/M |
| IP rating | IP20 |
| Material | Copper |
| Colour temperature | 10000k(Cold White) |
| CRI | 70 |
| PCB width | 10mm |
| Dimmable | Yes |
| Lifespan | 50,000 hours |
| Working temperature | 20 - 50 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Display counters and shop shelving
- Ceiling coves needing high output
- Garage and storage lighting
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is a warmer colour available?
This listing is cold white 10000K. Ask us for warm or neutral white strips if you need them.
What supply size do I need?
Plan for 12W per metre of strip on a 12V DC supply, plus a safety margin.
Is it suitable for outdoor use?
No, it is IP20 for dry indoor locations.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 50 m for this model. Ask us about samples for testing before a volume order.
