Shinechip

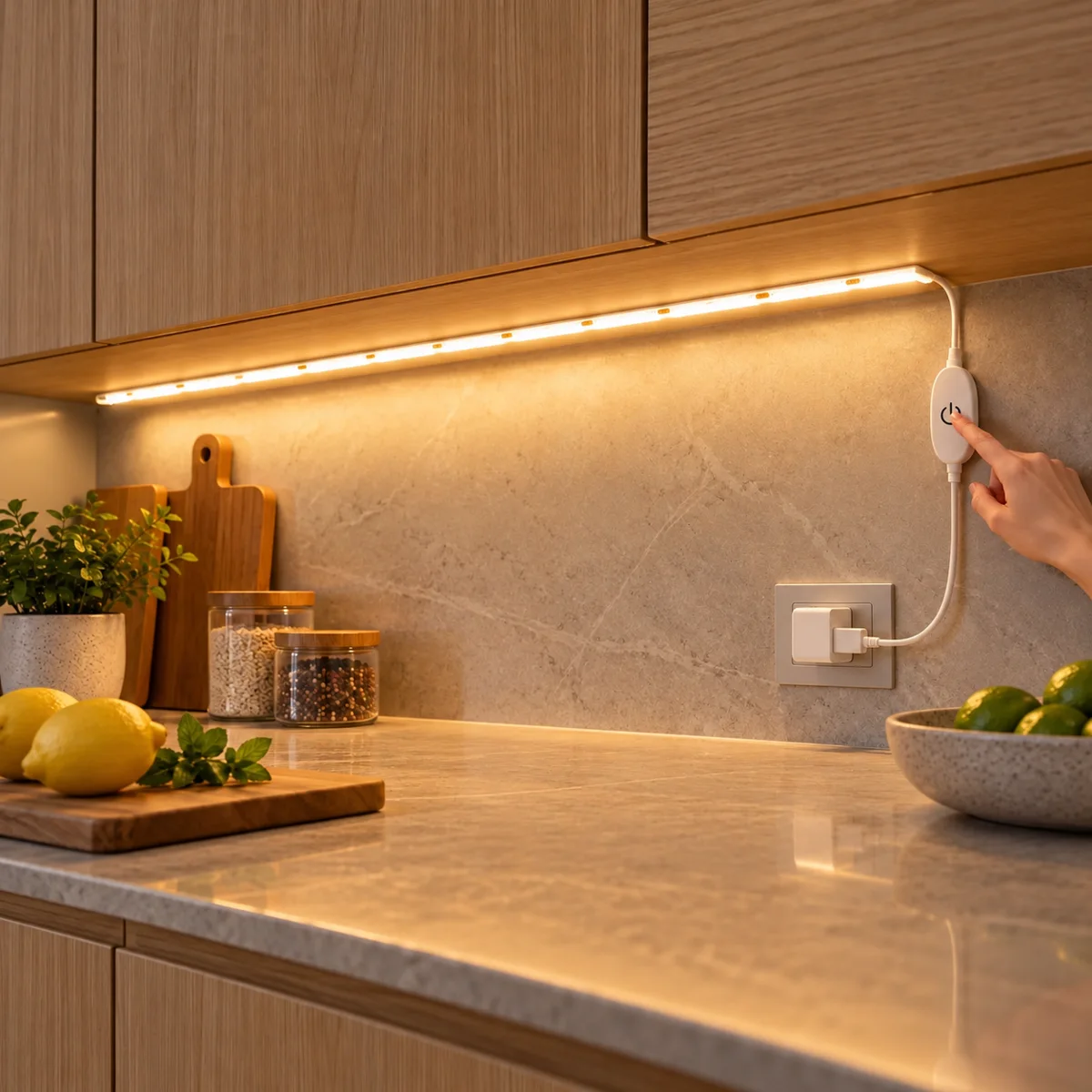

Illustration based on our product photo
DC5V-320 USB COB LED Strip, 320 LEDs/m, 5-6W/m
Sell a dense, dot-free light line that works from a USB port. DC5V-320 packs 320 LEDs/m of COB on an 8 mm PCB, so TV backlights and glass shelves glow evenly and your customers just plug it in, with no driver to buy.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose DC5V-320
320 LEDs/m COB with a 120 degree beam and CRI over 80 shows no dots, even on reflective shelves and TV walls.
5V DC through a 1.5 m USB lead with a manual button switch, so it suits retail kits and renovation jobs without wiring.
Choose 1 m, 2 m or 3 m in warm white 3000-3200K or natural white 4000-4500K. Orders start from 1 set.

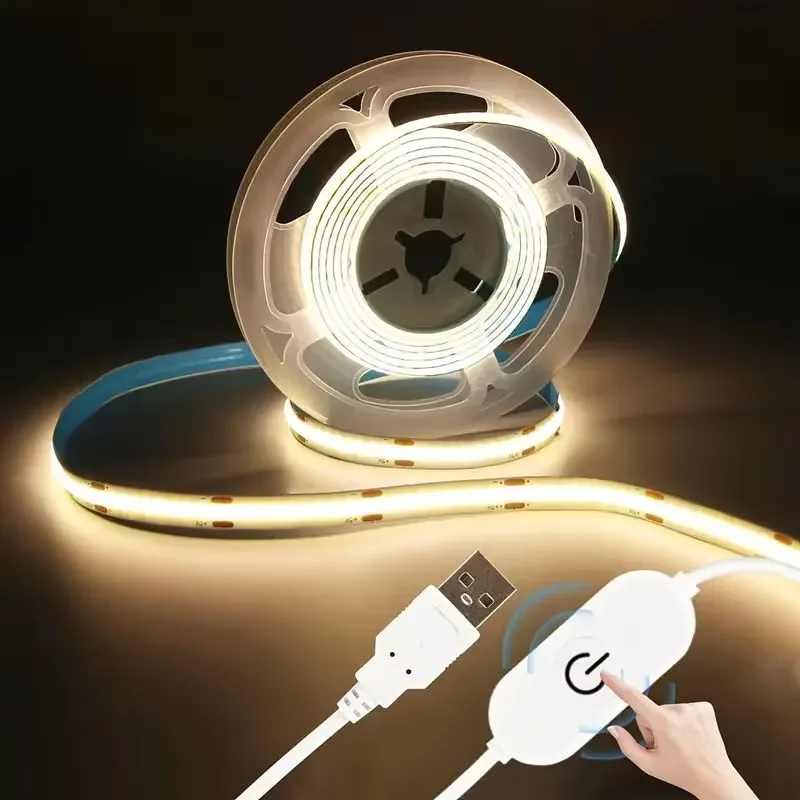

DC5V-320 is a high-density COB strip with 320 LEDs/m that runs from a USB plug at 5V DC, so it needs no separate driver. The 8 mm white PCB gives a continuous line of light at 5-6W/m with a 120 degree beam and CRI over 80. It comes in white or warm white, in 1 m, 2 m or 3 m lengths with a 1.5 m USB lead and a manual button switch.
Key features
- 320 LEDs/m COB on 8 mm white PCB
- 5V DC via USB, 1.5 m USB lead
- 5-6W/m, 120 degree beam
- Warm white 3000-3200K or natural white 4000-4500K, CRI over 80
- Manual button switch, dimmable
- 1 m, 2 m or 3 m lengths, IP33
Specifications
| Model | DC5V-320 |
| Type | COB LED light |
| Input voltage | 5V DC |
| Max load | 5-6W / m |
| IP rating | IP33 |
| Material | Pcb |
| Colour temperature | warm white (3000-3200K), natural white (4000-4500K |
| CRI | 80 |
| PCB width | 8mm(0.31in) |
| Control | Switch Control |
| Dimmable | Yes |
| Lifespan | 50,000 hours |
| Working temperature | 20 - 50 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- TV background lighting
- Display shelves and glass cabinets
- Decorative lighting in home renovation projects
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
How does it differ from SMD strips?
The COB chips sit so close together, 320 per metre, that the line of light looks continuous even without a diffuser.
Which USB adapter do I need?
A 5V USB adapter that supplies the strip power: a 3 m strip at 5-6W/m needs up to about 18W, calculated from the listed rating.
Can it be cut?
Tell us the length you need and we confirm cut points and kit length for this model.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 1 sets for this model. Ask us about samples for testing before a volume order.
