Shinechip

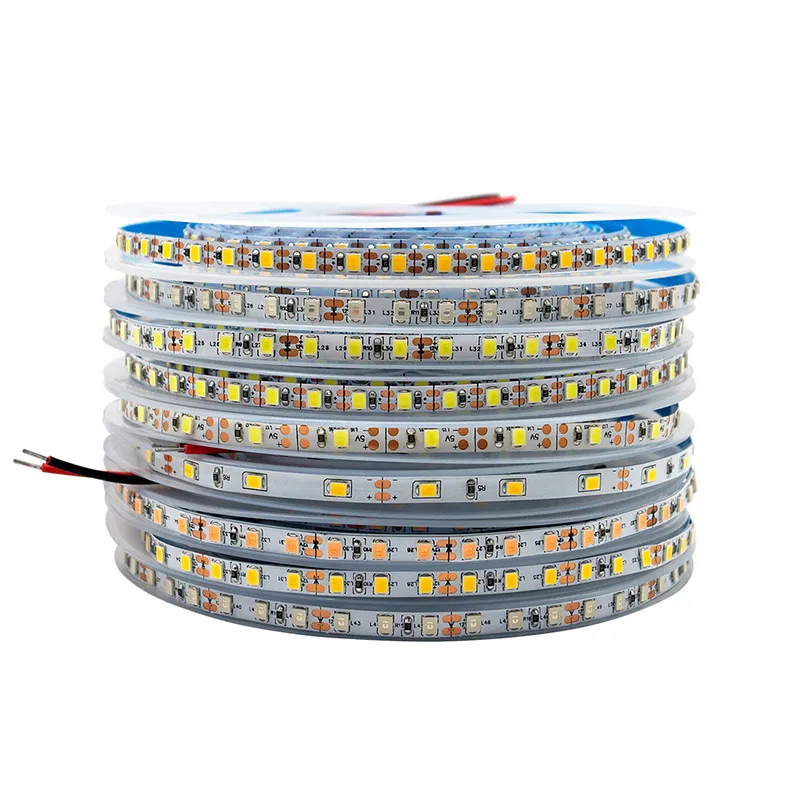

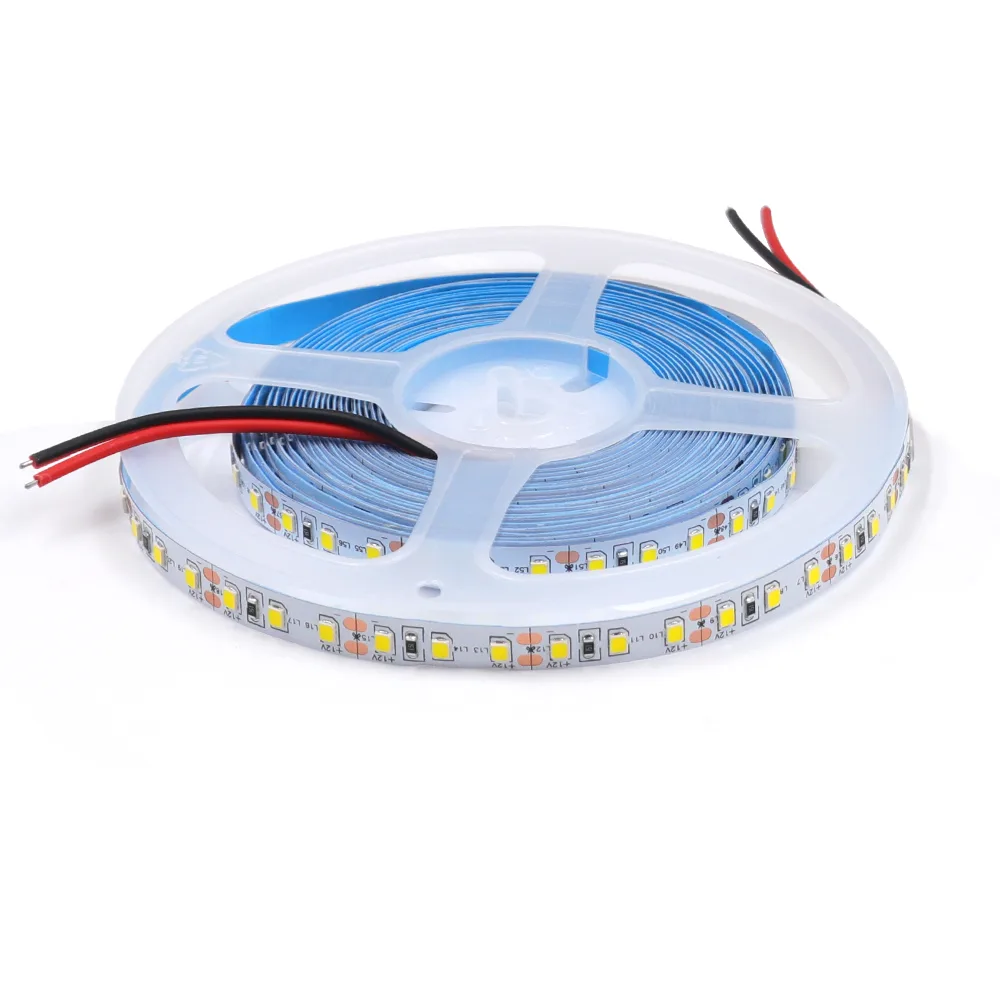

TSP-2835-120 SMD2835 LED Strip, 120 LEDs/m, 8 mm FPCB
Light long shelving runs and display counters with a strip your installers roll out fast. TSP-2835-120 puts 120 Sanan-chip LEDs per metre on an 8 mm FPCB, giving even 12V light along warehouse racks, cabinets and counters.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TSP-2835-120
Supplied on 5 m or 10 m rolls, so installers cover racking and counters with fewer joints.
CRI 80 at 85 lm/W in 3500K, 4100K or 6000K, so goods on shelves and counters look natural.
12V DC, dimmable, IP20, rated 30,000 hours. Minimum order 10 m; add drivers and switches to the same order.
TSP-2835-120 is a flexible SMD2835 strip with 120 LEDs per metre on an 8 mm FPCB, suited to long runs in warehouses, shelving and cabinets. It uses Sanan chips at 85 lm/W with CRI 80, in 3500K warm white, 4100K neutral white or 6000K daylight. The listing shows 12V DC input, IP20, dimmable operation, 5 m or 10 m rolls and a rated life of 30,000 hours.
Key features
- 120 SMD2835 LEDs/m on 8 mm FPCB
- 12V DC input
- Sanan LED chips, 85 lm/W, CRI 80
- 3500K, 4100K or 6000K
- 5 m or 10 m rolls
- Dimmable, IP20, working temperature -25 to 40 °C
Specifications
| Model | TSP-2835-120 |
| Input voltage | 12V DC |
| IP rating | IP20 |
| Material | Fpc |
| Colour temperature | 3500K (Warm White), 4100K (Neutral White), 6000K (Daylight Alert) |
| CRI | 80 |
| LED chip | Sanan |
| Dimmable | Yes |
| Lifespan | 30,000 hours |
| Working temperature | -25 - 40 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Warehouse shelving and racking
- Kitchen and wardrobe cabinets
- Display counters
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is a 24V version available?
The title mentions 12V and 24V, while the specifications list 12V. Tell us the voltage you need and we confirm it before quoting.
Which is better for long runs, 5 m or 10 m rolls?
Use 10 m rolls to cut joints on long runs, and feed power from both ends on 12V to keep brightness even.
Is it dimmable?
Yes. Use a 12V single-colour dimmer rated above the total strip load, and tell us the run length so we size it.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 10 m for this model. Ask us about samples for testing before a volume order.
