TS-F-03 / TS-F-04 Mirror Switch with Anti-Fog and Clock, 12V 60W
Light, anti-fog, clock and temperature from one module behind the mirror. TS-F-03 / TS-F-04 let your hotel and home bathroom mirrors offer the full feature set, in single-colour or three-colour versions.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TS-F-03
Two buttons plus a clock and temperature display in one 143 x 47.5 x 10.5 mm module, so you wire one part.
One version gives on/off and dimming, the other adds three-colour adjustment; both include anti-fog control.
Both run on 12V DC at 5A / 60W through 1-5 mm glass, so one mirror design serves both versions. MOQ 2 pcs.

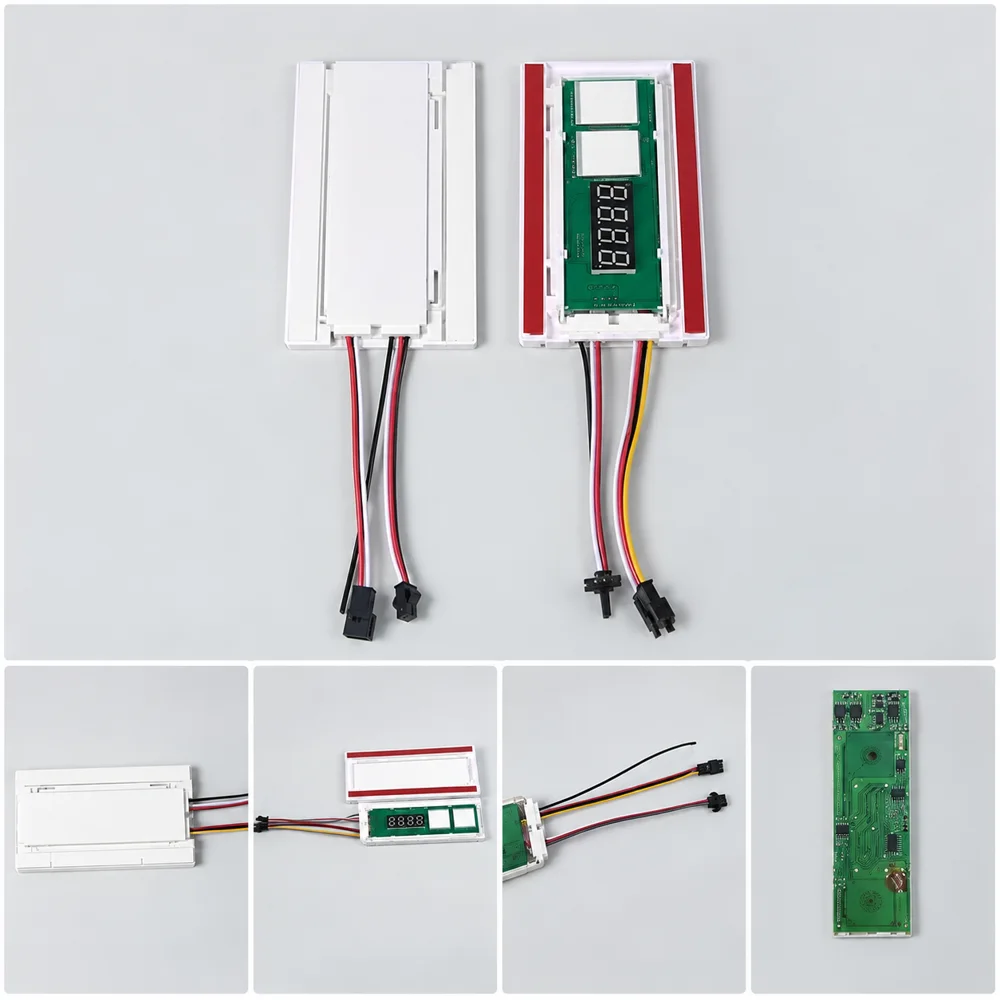

TS-F-03 and TS-F-04 are dual-button mirror touch switches with anti-fog control and a clock and temperature display, built into one 143 x 47.5 x 10.5 mm module. One version gives single-colour on/off plus dimming, the other adds three-colour adjustment for tunable-white mirrors. Both run on 12V DC, are rated 5A / 60W, and read touch through 1-5 mm of mirror glass.
Key features
- Two function sets: on/off + dimming + anti-fog, or three-colour + dimming + anti-fog
- Clock and temperature display
- 12V DC, rated 5A / 60W
- Supports mirror glass 1-5 mm thick
- 143 x 47.5 x 10.5 mm ABS module, IP20
- White and blue indicator light, 20 cm lead
Specifications
| Model | TS-F-03/TS-F-04 |
| Type | Capacitive touch switch |
| Input voltage | 12V DC |
| Max load | 60W |
| Mirror thickness | 1-5 mm |
| IP rating | IP20 |
| Material | Abs |
| Dimensions | 143 x 47.5 x 10.5 mm |
| Cable length | 20 cm |
| Indicator | White light / Blue light |
| Housing colour | White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used

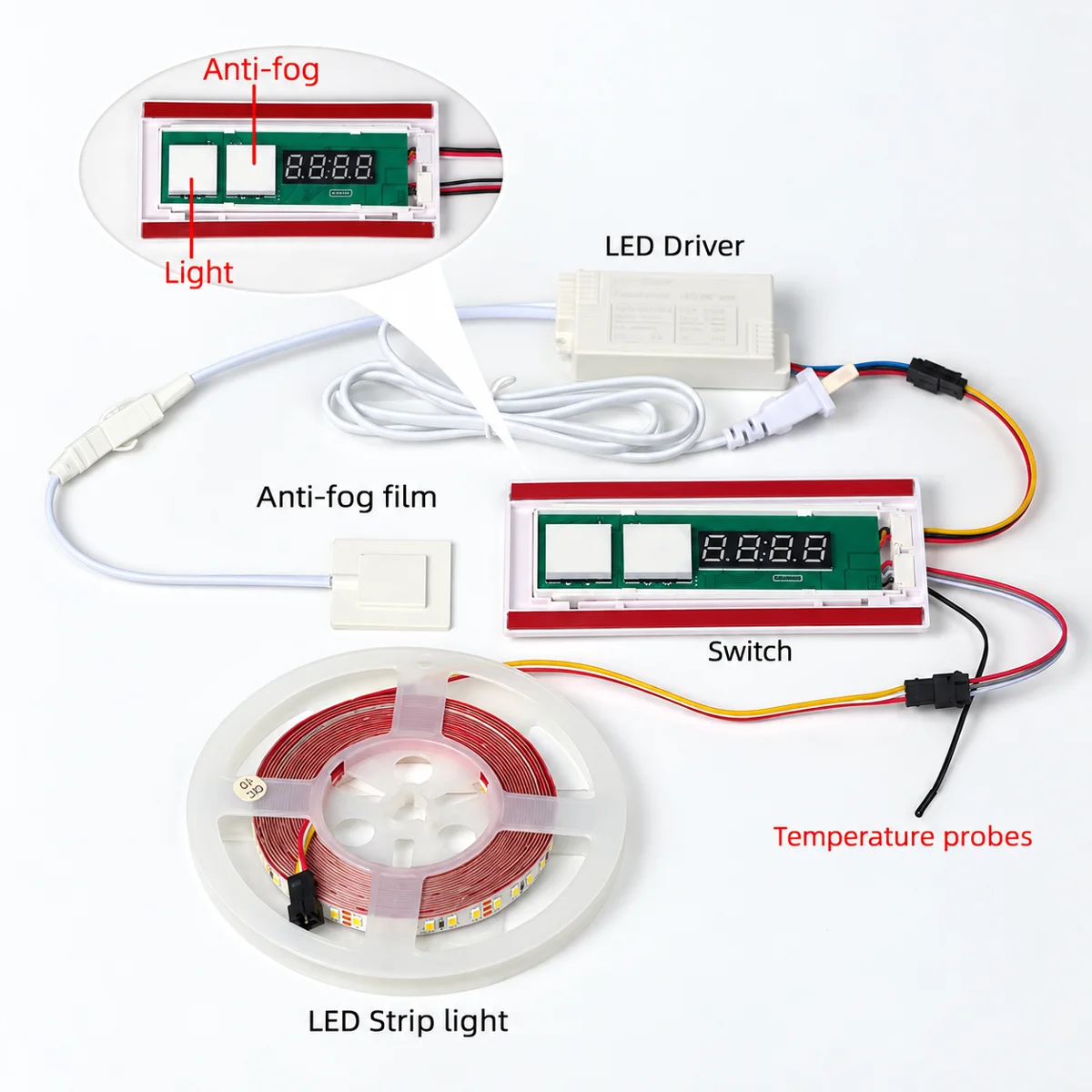

- LED bathroom mirrors with defogger pads
- Tunable-white (CCT) vanity mirrors
- Hotel bathroom mirrors with time display
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Which version do I need?
Choose the three-colour version if the mirror has a CCT (tunable white) strip; otherwise choose the single-colour dimming version. Tell us your strip type and we confirm the matching model code.
How much load can it take?
It is rated 5A / 60W at 12V DC. Keep the LED strip and defogger pad within that total.
Can it run on other voltages?
This model is listed for 12V DC only. Tell us your mirror voltage and we suggest a matching switch.
Other mirror touch switches
Featured▶ VideoTD100TD100 / TD100D Mirror Touch Dimmer Switch, 12-24V DC
FeaturedTD102DTD102D 3-Colour Mirror Touch Dimmer, 12V 36W IP22
TD103TD103 / TD103D Mirror Touch Switch with Defogger, 12V 60W
TD102TD102 / TD102D Aluminium Mirror Touch Dimmer, 12-24V 36W
Ask about TS-F-03
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
