Shinechip
Three-Colour Mirror Touch Dimmer with SM Connector, 12-24V 36W
Peel, stick and plug: this low-profile touch dimmer lets your line fit mirror light control in seconds. The adhesive back and SM connector cut assembly steps, and the TD102D version adds three-colour switching for your CCT mirrors.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose this model
Adhesive back mounting and an SM connector on both versions mean no screws and no soldering behind the mirror.

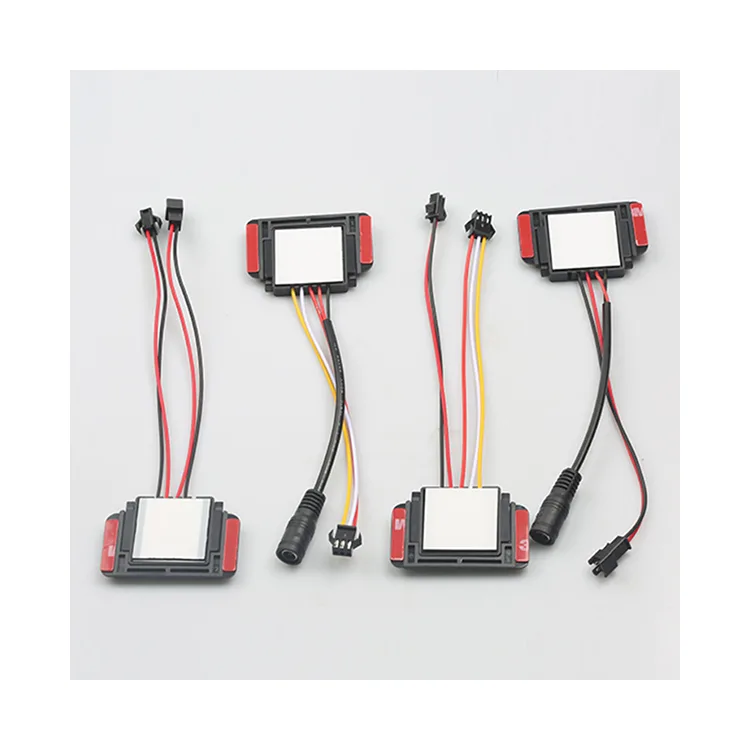

TD102 handles single-colour on/off and dimming; TD102D adds three-colour adjustment. Both share the 42 x 33 x 8 mm black housing and 20 cm lead.
At 8 mm deep and about 0.1 kg it sits flat on the mirror back and still handles up to 3A / 36W of strip.

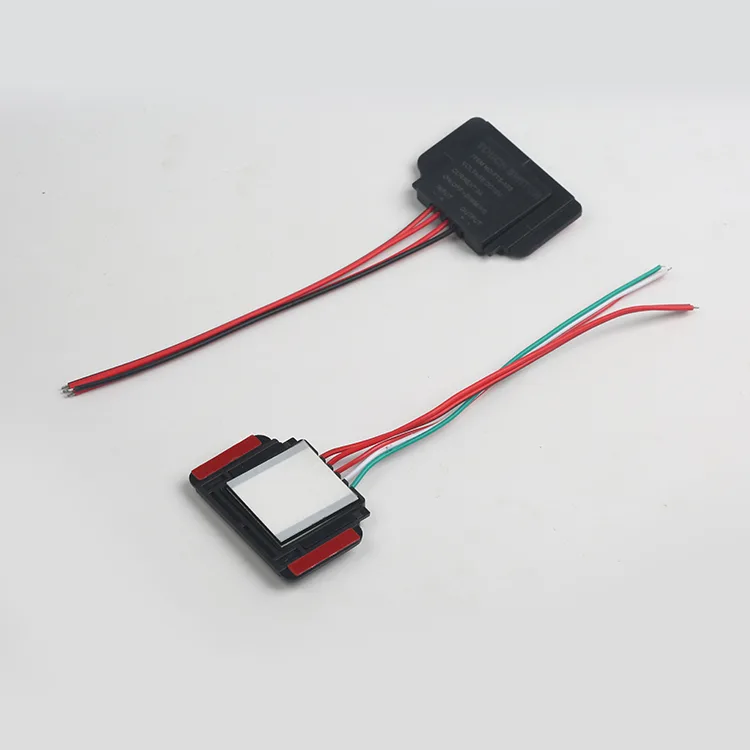

This adhesive-backed touch dimmer for bath mirrors comes in two versions with an SM connector: TD102 for single-colour strips and TD102D for three-colour adjustment plus dimming. It handles 3A / 36W, with a 12-24V DC rating in the store title. The black unit measures 42 x 33 x 8 mm, weighs about 0.1 kg and has a 20 cm lead.
Key features
- TD102: on/off and dimming; TD102D: three-colour adjustment plus dimming
- SM connector on both versions
- Adhesive back installation
- Up to 3A / 36W load
- 42 x 33 x 8 mm black housing, about 0.1 kg
- 20 cm lead; white and blue indicator light
Specifications
| Function | On/off + dimming |
| Type | Mirror touch sensor switch |
| Input voltage | 12V DC |
| Max load | 36W |
| Mirror thickness | 1-5 mm |
| Dimensions | 42 x 33 x 8 mm |
| Cable length | 20 cm |
| Indicator | White light / Blue light |
| Housing colour | Black |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Bathroom LED mirrors
- Slim mirrors with little depth behind the glass
- Make-up mirrors
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
How is it fixed to the mirror?
It has an adhesive back and sticks to the back of the glass. Clean the surface first; it works through 1-5 mm mirror glass.
Which connector does it use?
Both versions come with an SM connector. Tell us if your strip uses a different plug and we confirm options.
Which power supply do I need?
A DC supply matching your strip voltage, sized within 36W.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 2 pcs for this model. Ask us about samples for testing before your first order.
