TD100-I Single-Colour Mirror Touch Dimmer, 12-24V 60W
Give your single-colour LED mirrors on/off and dimming from one touch point, without cutting the glass. TD100-I mounts behind the mirror and works on 12V or 24V strips, so one switch covers both strip voltages.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TD100 - I
A single touch point handles on/off and dimming, so users learn the mirror in seconds and you mark only one point on the glass.
It reads a finger through 1-5 mm mirror glass from behind, and a white and blue indicator shows where to touch.

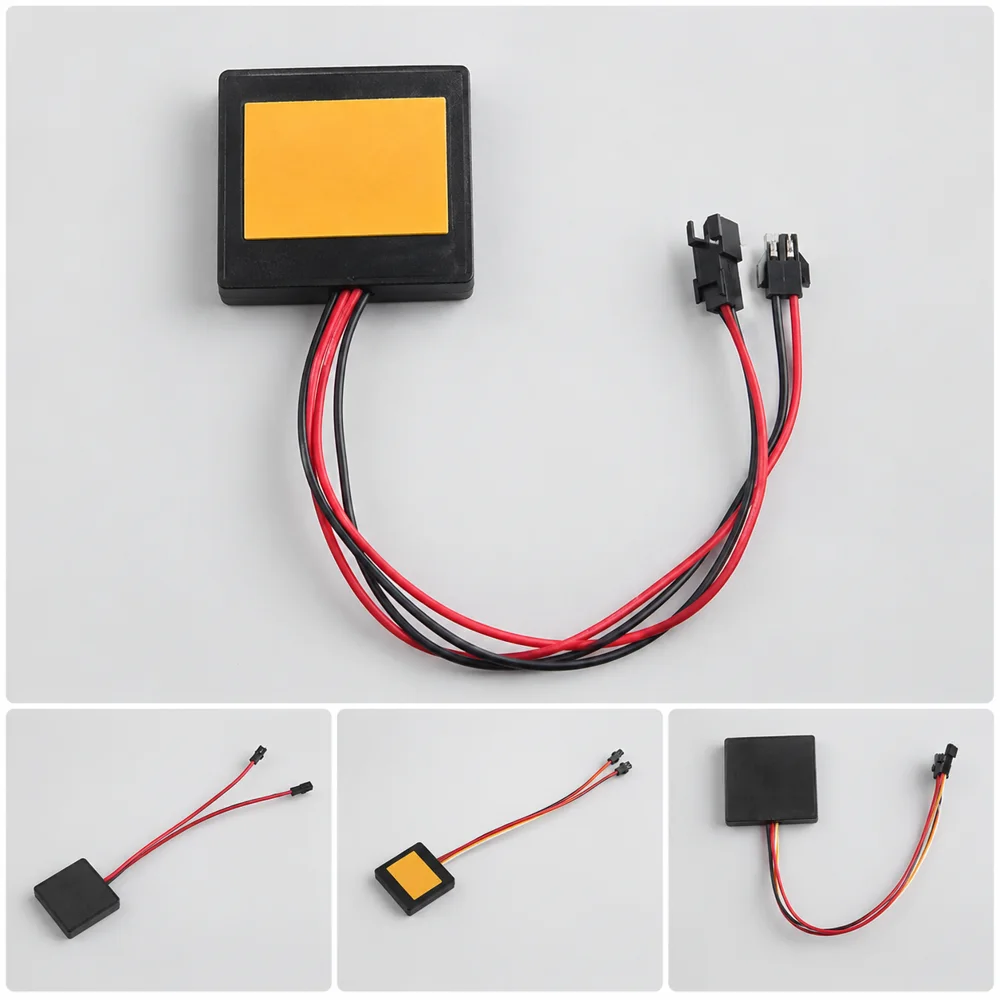

Black 50 x 49 x 10 mm module with a 15 cm cable, rated 5A / 60W on 12-24V DC. Order from 2 pcs.

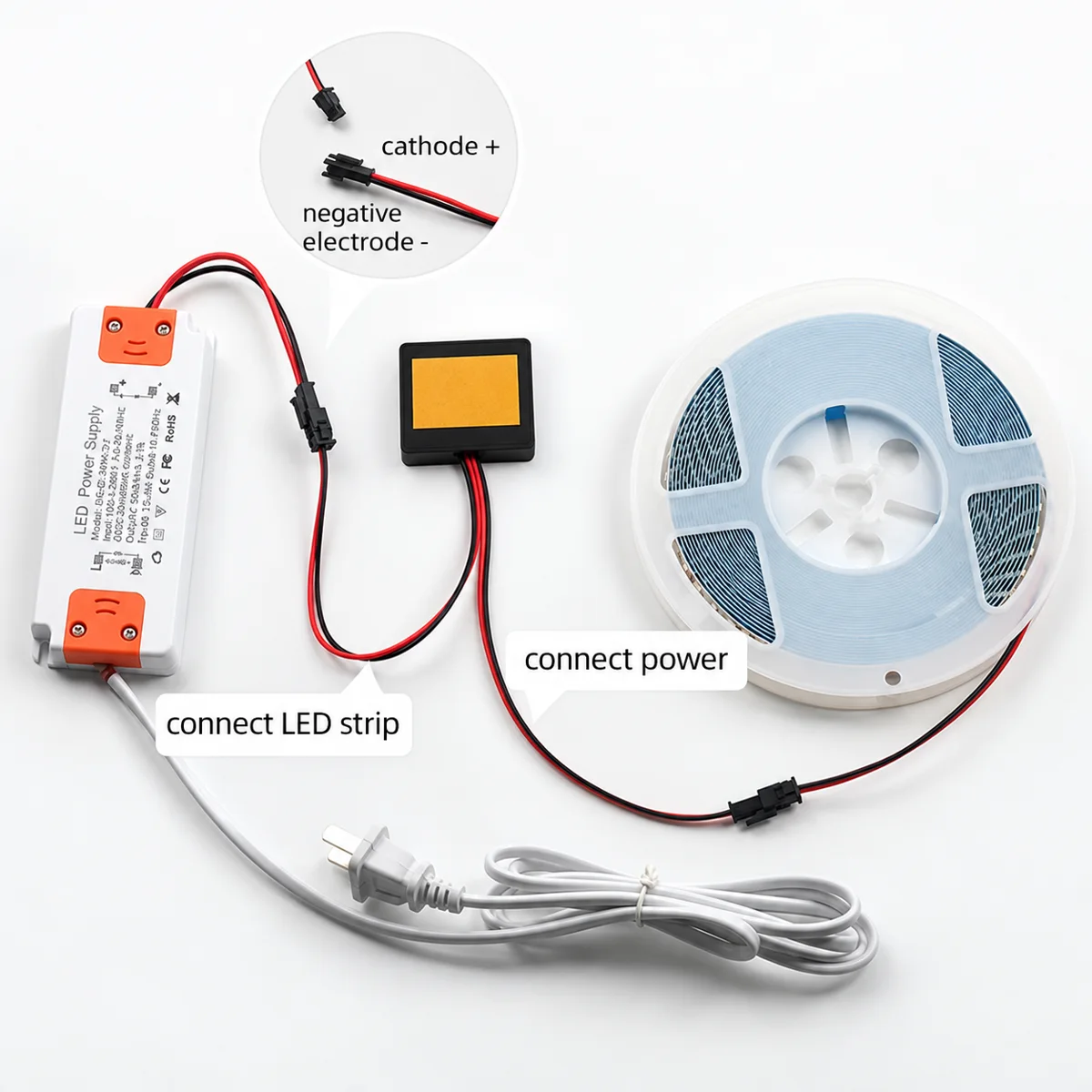

TD100-I is a single-button capacitive touch switch for bathroom mirrors lit by a single-colour LED strip. It mounts behind the glass and reads a finger through 1-5 mm of mirror, giving on/off and dimming from the same touch point. It runs on 12-24V DC with a maximum load of 5A / 60W, and the black 50 x 49 x 10 mm module comes with a 15 cm cable.
Key features
- One button handles both on/off and dimming
- Senses through mirror glass 1-5 mm thick, so no hole is cut in the mirror
- 12-24V DC input, maximum load 5A / 60W
- For single-colour LED strips; no colour temperature switching
- White and blue indicator light
- Black housing, 50 x 49 x 10 mm, with a 15 cm cable
Specifications
| Model | TD100 - I |
| Type | Capacitive touch switch |
| Input voltage | 12V-24V DC |
| Max load | 60W |
| Mirror thickness | 1-5 mm |
| Dimensions | 50 x 49 x 10 mm |
| Cable length | 15 cm |
| Indicator | White light / Blue light |
| Housing colour | Black |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used

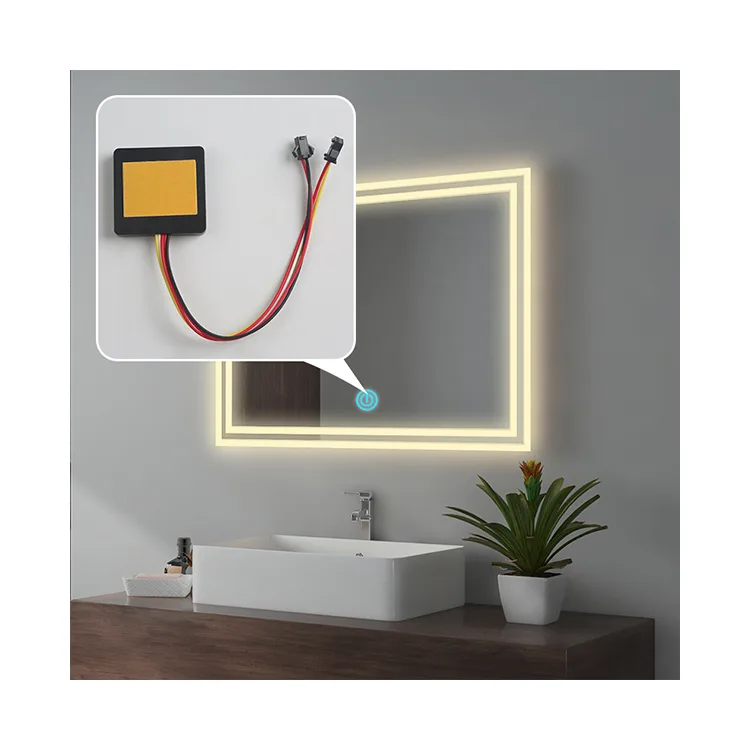

- Front-lit and back-lit bathroom mirrors with one LED colour
- Vanity and make-up mirrors
- Mirror cabinets with a single-colour strip
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is this the same as TD100D?
No. TD100-I only switches and dims a single-colour strip. If your mirror uses a tunable white (CCT) strip, ask for the TD100D version instead.
Will it work through my mirror glass?
It is specified for glass 1-5 mm thick. For thicker glass or a heavy back coating, send us the thickness and we confirm.
Can I get a longer cable?
The standard cable is 15 cm and the listing marks the switch as customisable. Tell us the length and connector you need and we confirm it for this model.
What is the MOQ?
Our Alibaba.com store starts from 2 pcs for this model, which suits sample and pilot orders.
