Shinechip
SYSK-CQ21LD-01 Mirror Switch, Time/Temp Display, Anti-Fog, 12V
Sell a smart mirror without integrating three separate parts. SYSK-CQ21LD-01 puts light dimming, anti-fog control and a time and temperature display in one white module behind the glass.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose SYSK-CQ21LD-01
Dimming, defogger control and the display share one unit, so your assembly has one switch to mount and wire.
The time and temperature display gives your mirror a visible selling point next to plain touch-switch models.
White Single and White Double versions, 12V DC, up to 5A / 60W, through 1-5 mm glass. Order from 2 pcs.

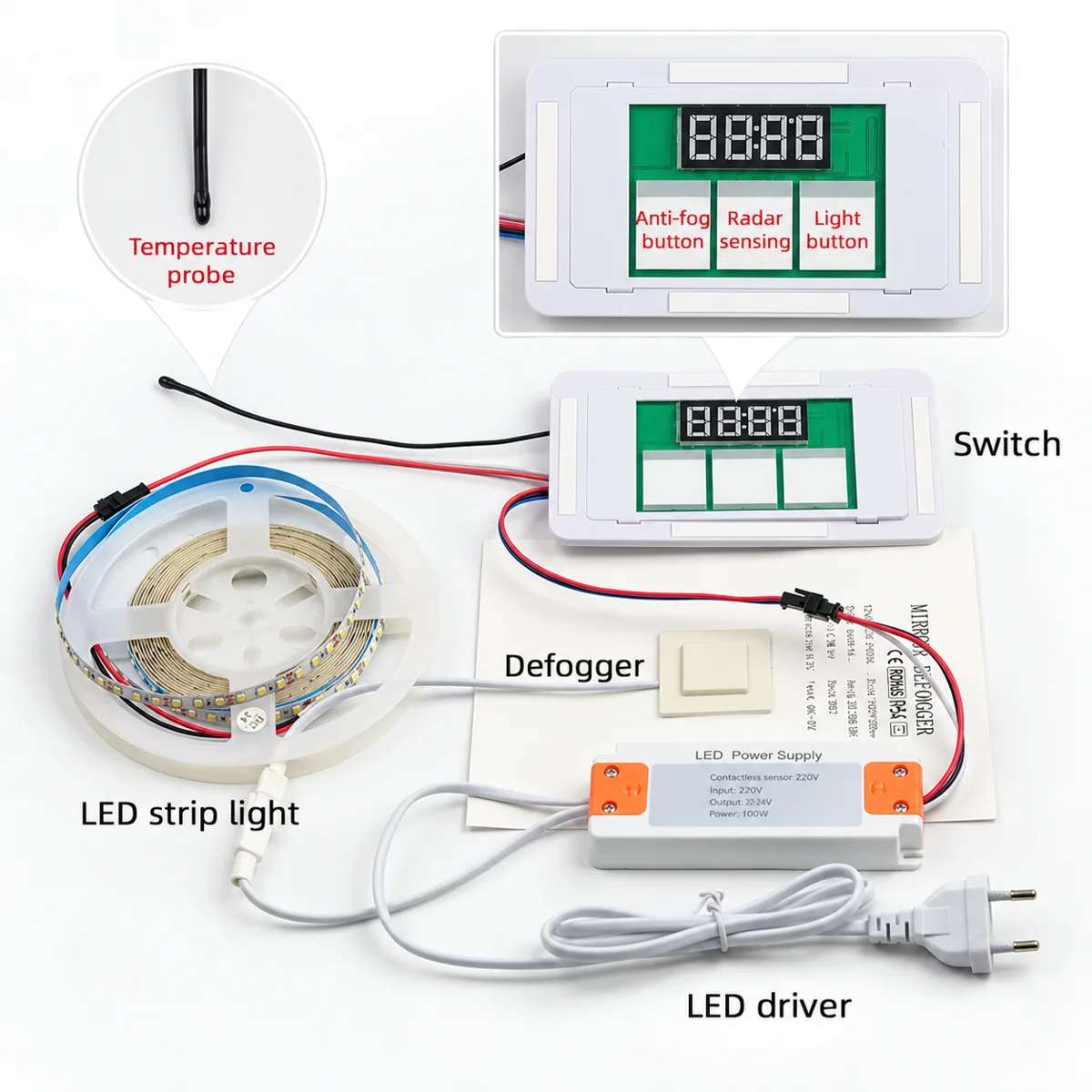

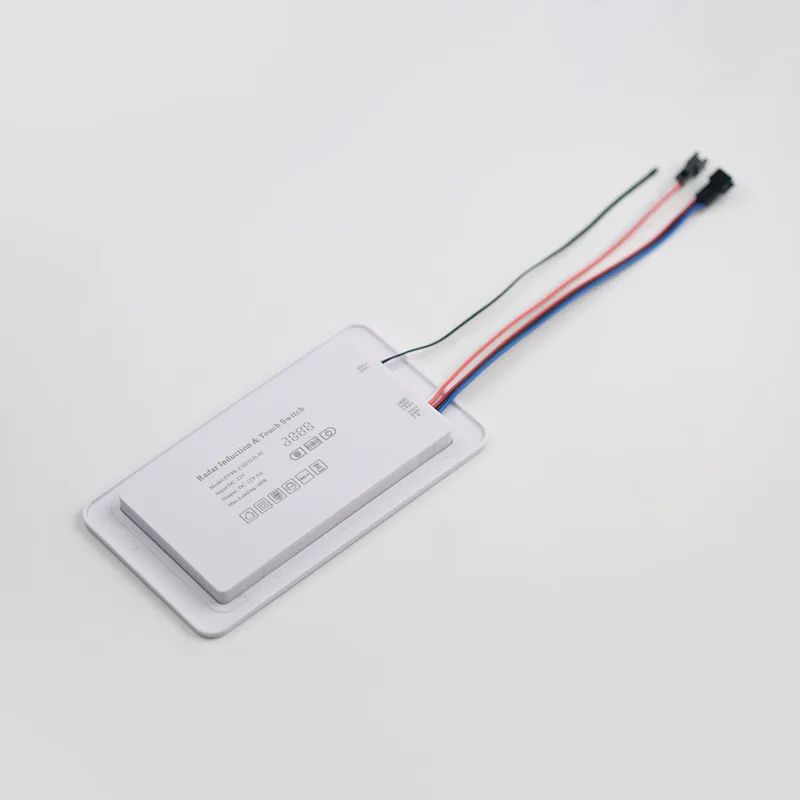

SYSK-CQ21LD-01 is a mirror touch sensor switch that combines LED dimming, an anti-fog (defogger) control and a time and temperature display in one white module behind the glass. It works through mirror glass 1-5 mm thick and runs on 12V DC, with a maximum load of 5A, or 60W. Two versions are listed under this model: White Single and White Double.
Key features
- Touch on/off and dimming for the mirror light
- Anti-fog control for a mirror defogger pad
- Time and temperature display
- Senses through mirror glass 1-5 mm thick
- 12V DC input, maximum load 5A / 60W
- White housing; White Single and White Double versions
Specifications
| Model | SYSK-CQ21LD-01 |
| Type | Mirror touch sensor switch |
| Input voltage | 12V DC |
| Max load | 60W |
| Sensing range | 1-5 mm |
| Housing colour | White |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used

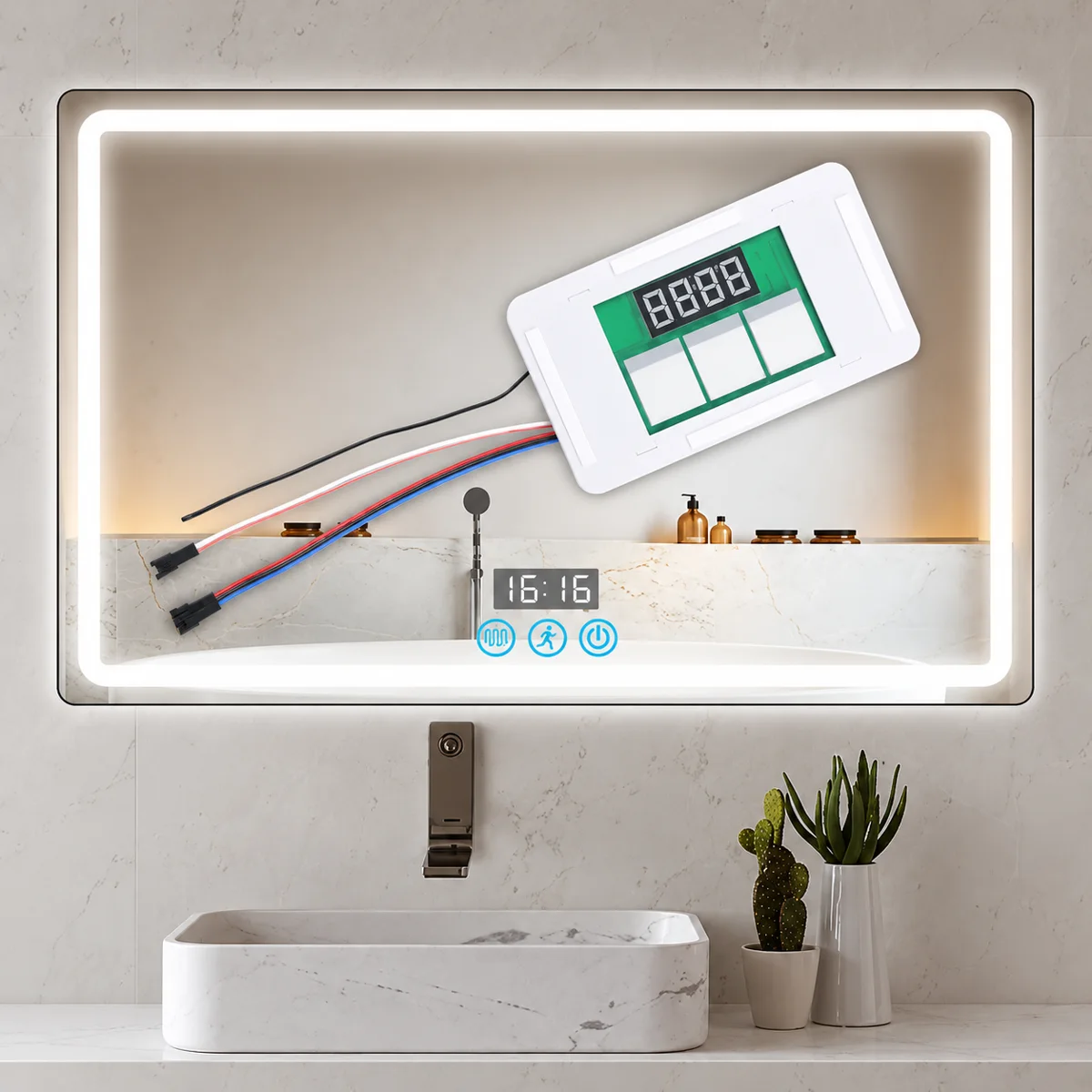

- Bathroom LED mirrors fitted with a defogger pad
- Hotel bathroom mirrors
- Smart mirrors that show the time and room temperature
OEM options for this model
- Logo on the module or packaging
- Lead length and connector type
- Single-colour or 3-colour (CCT) function
- Button icons and indicator colour
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Does the 60W limit include the defogger pad?
The listing gives one maximum load of 5A / 60W at 12V. Tell us your LED strip and defogger pad wattage and we confirm whether this switch covers both.
What is the difference between White Single and White Double?
Both are listed under this model. Send us your mirror layout and the functions you need and we confirm which version fits.
Which power supply do I need?
A 12V DC supply sized for the mirror's total load. If your mirror runs on another voltage, tell us before ordering.
What is the MOQ?
Standard orders start from 2 pcs.
