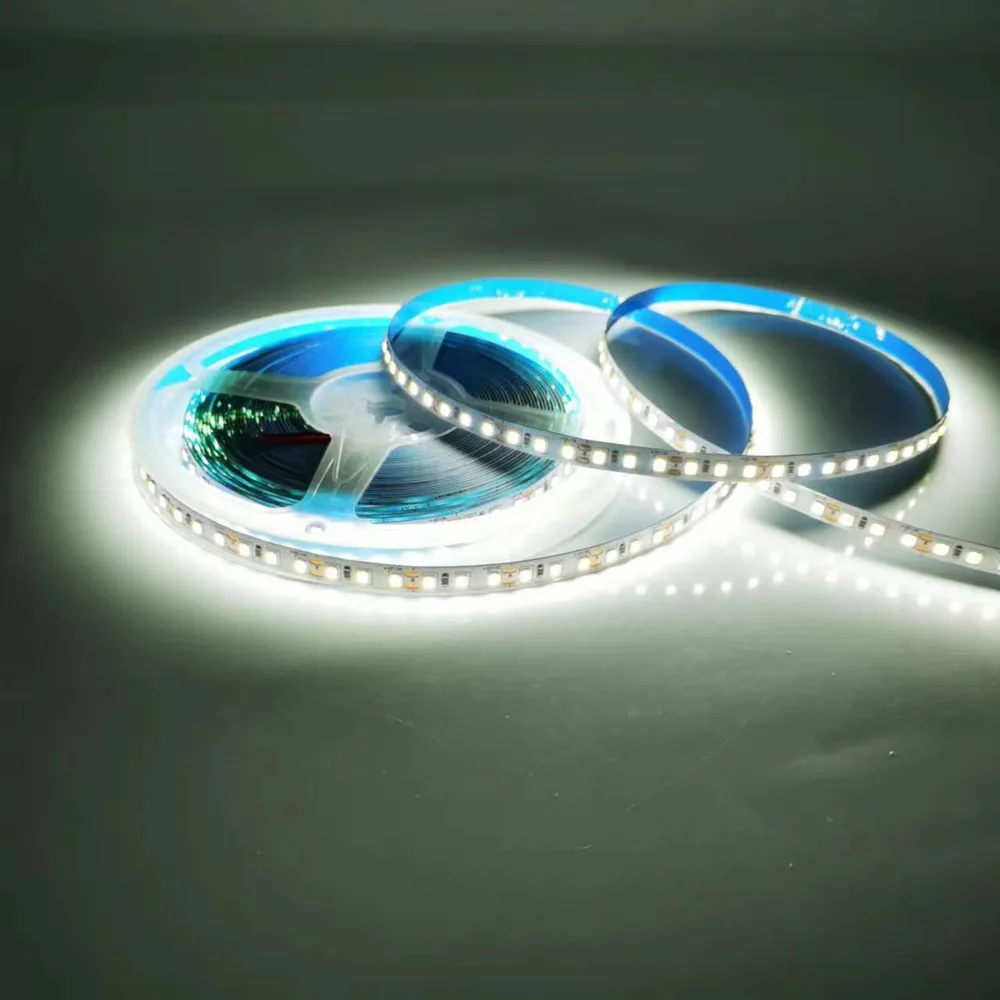

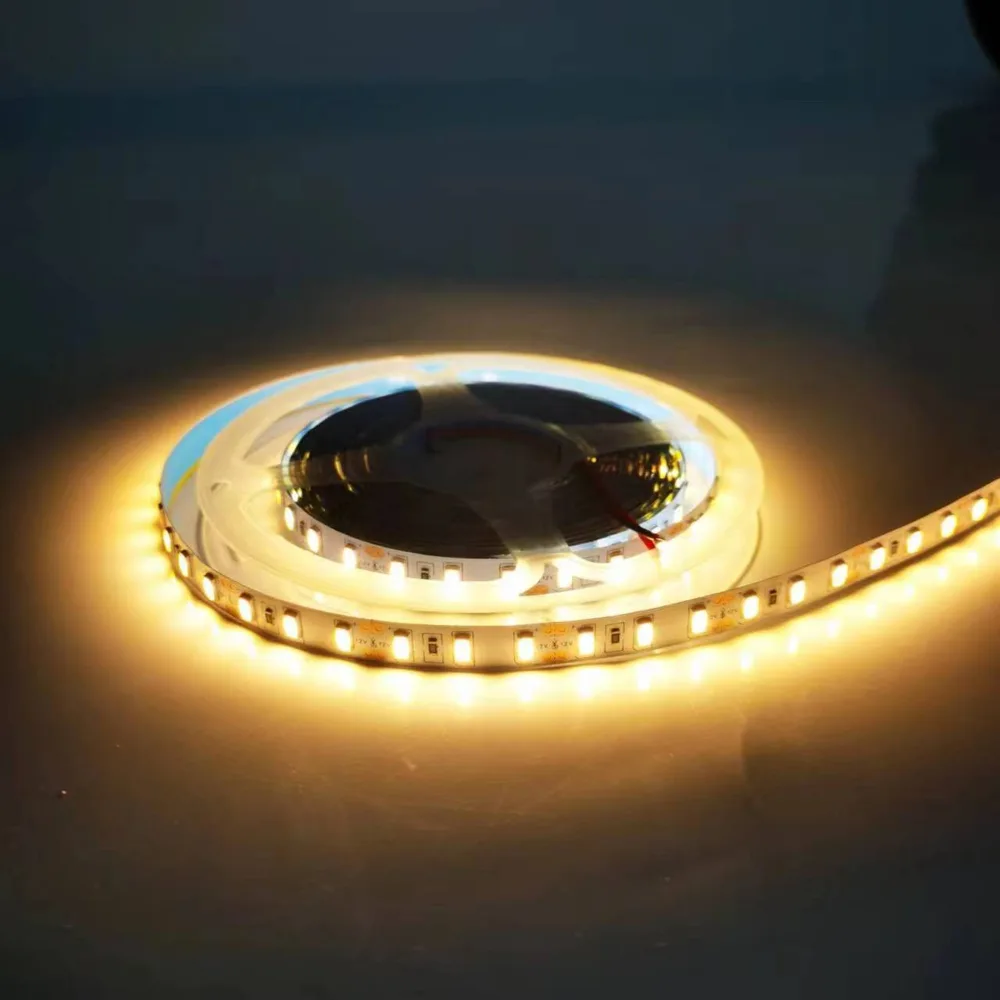

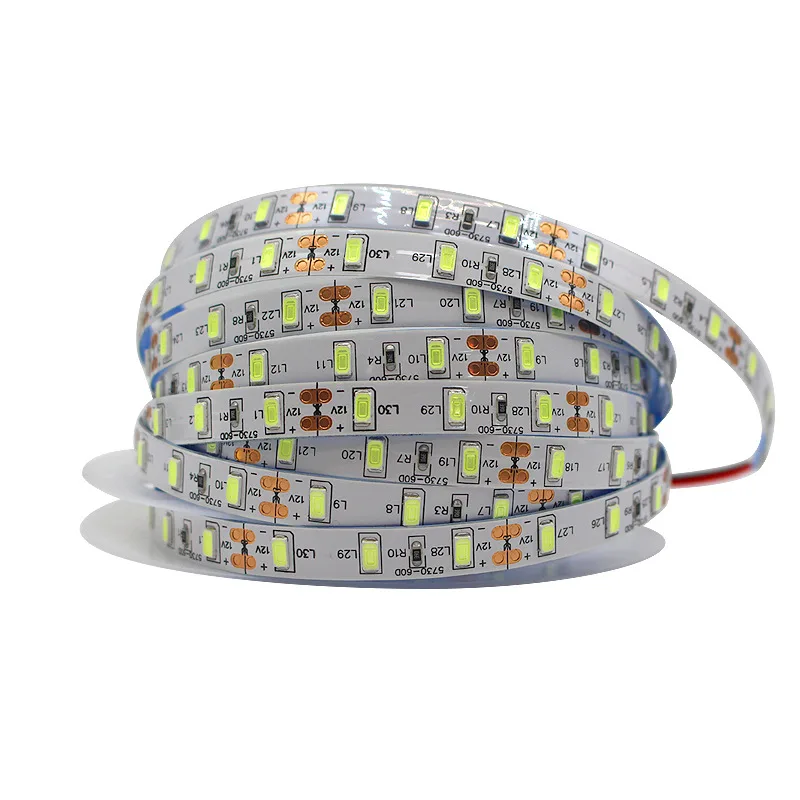

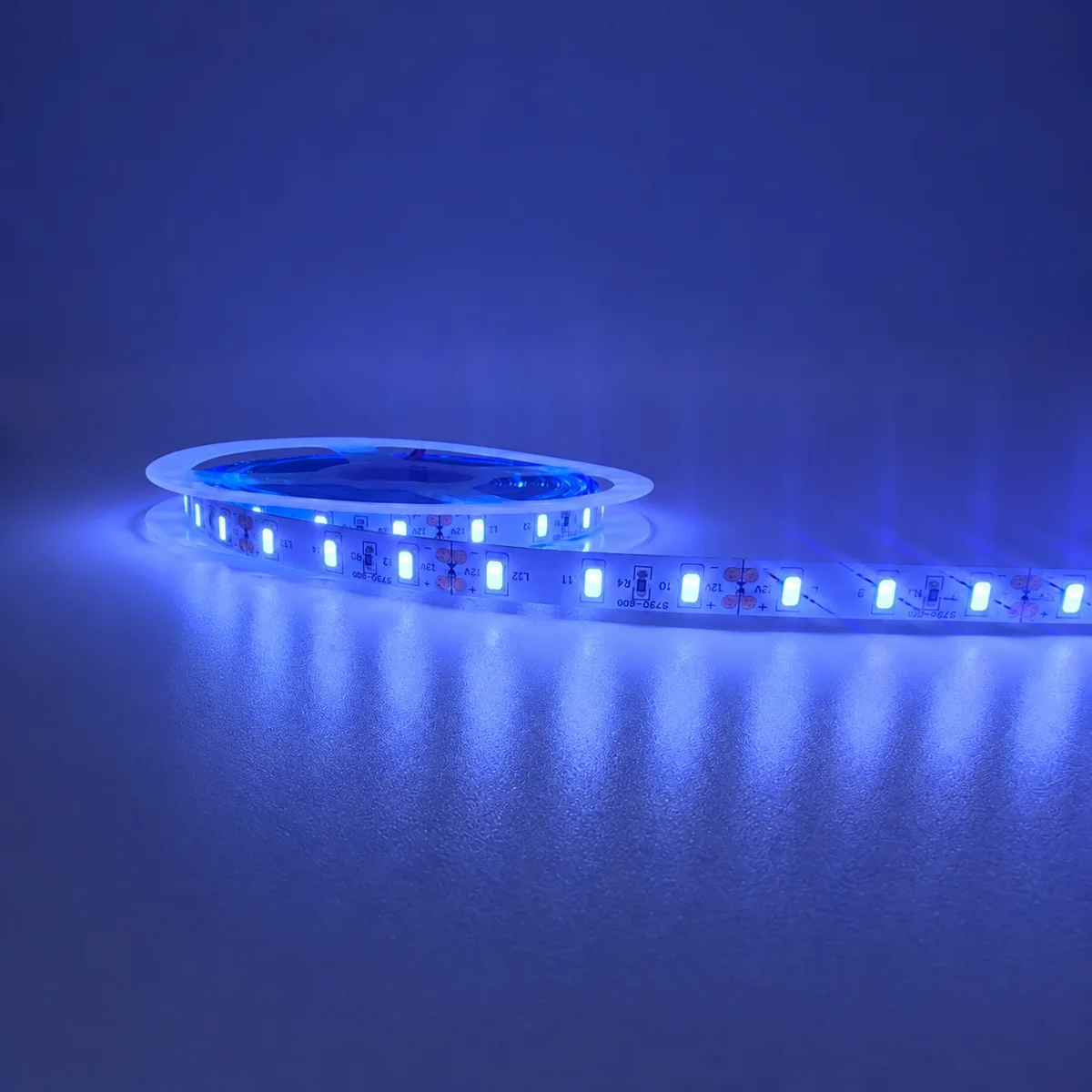

SMD5730 LED Strip, 60 LEDs/m, 12V, 10 mm
A bright 12V strip for general home lighting where you want plenty of light from fewer LEDs. Larger SMD5730 chips on a 10 mm board give your cove, pantry and utility lighting strong output at an easy 12V.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose 12V 5730-60
60 SMD5730 LEDs per metre at 12W with a 120° beam, for coves, shelving and storage rooms.
Choose 3000K, 4000K, 6500K, 10000K or 15000K, CRI 80, to match warm homes or cool utility spaces.
Self-adhesive PVC strip, IP20, dimmable on 12V DC. MOQ 10 m.
12V 5730-60 is a 12V strip with 60 larger SMD5730 LEDs per metre on a 10 mm PCB, for brighter general and home lighting. It draws 12W, gives a 120° beam with CRI 80, and comes in 3000K, 4000K, 6500K, 10000K or 15000K. The PVC-bodied, self-adhesive strip is IP20, dimmable, rated for 50,000 hours and supplied in 5 m lengths.
Key features
- 60 SMD5730 LEDs/m on 10 mm PCB
- 12V DC, 12W
- 3000K, 4000K, 6500K, 10000K or 15000K, CRI 80
- 120° beam angle
- PVC body, self-adhesive, IP20
- Dimmable, 5 m lengths, rated life 50,000 hours
Specifications
| Model | 12V 5730-60 |
| Type | SMD5730 flexible LED strip |
| Input voltage | 12V DC |
| Max load | 12W |
| IP rating | IP20 |
| Material | Pvc |
| Colour temperature | 3000k/4000k/6500k/10000k/15000k/100000k |
| CRI | 80 |
| LED chip | SMD LED |
| PCB width | 10mm |
| Dimmable | Yes |
| Lifespan | 50,000 hours |
| Working temperature | -20 - 45 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Home ceiling coves
- Kitchen and pantry shelving
- Utility and storage room lighting
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Why choose a 5730 strip?
The 5730 LED is a larger package, so 60 LEDs/m on this strip give more light per LED. Tell us the brightness you need and we compare options.
Which power supply should I use?
A 12V DC constant-voltage supply sized above the total strip wattage.
Is it for indoor use only?
Yes, it is IP20 and suits dry indoor locations.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 10 m for this model. Ask us about samples for testing before a volume order.
