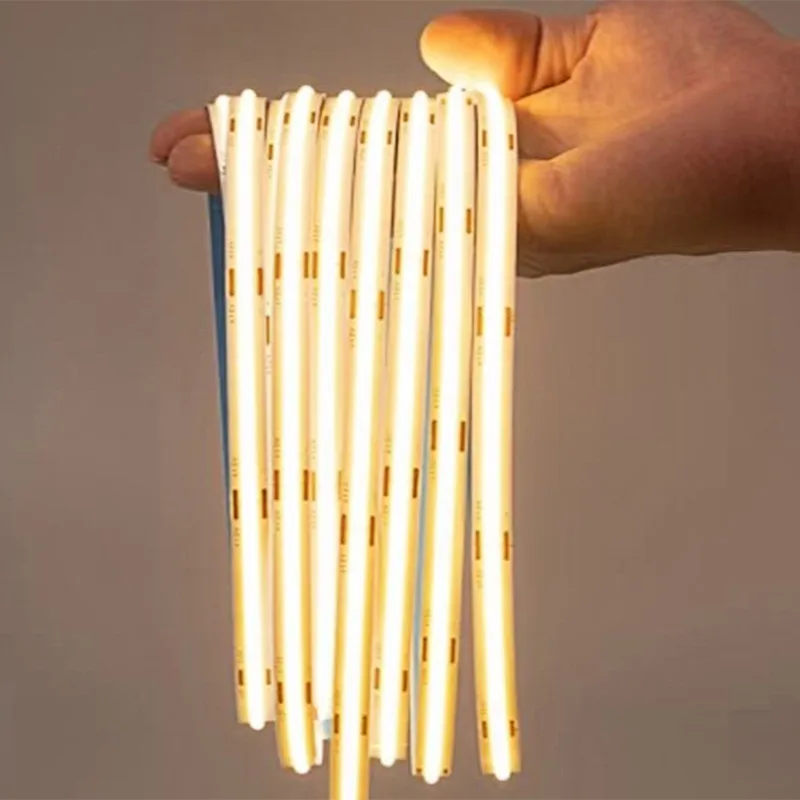

Linear COB LED Strip, 12V / 24V, 8 mm, Self-Adhesive
A slim COB strip that gives a continuous line of light with no visible dots. It suits wine cabinets, display cases and living room shelving where the light line itself is on show.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose COB Series
COB on an 8 mm white PCB gives a continuous light line in display cases and coves.
3000K, 4000K or 6500K with Sanan chips, CRI 80, listed at 90 lm/W.
Self-adhesive back with manual button control, dimmable, IP20. MOQ 50 pcs.
COB Series is a slim self-adhesive COB strip for continuous linear lighting in living rooms, wine cabinets and display areas. The 8 mm white PCB uses Sanan chips with CRI 80 and is listed at 90 lm/W, in 3000K warm white, 4000K neutral or 6500K white. The title gives 12V and 24V versions; the strip is IP20, dimmable with a manual button control and rated for 20,000 hours.
Key features
- COB strip on 8 mm white PCB, continuous light line
- 12V or 24V DC versions
- Sanan chips, CRI 80, listed at 90 lm/W
- 3000K, 4000K or 6500K
- Self-adhesive back, manual button control, dimmable
- IP20, working temperature -20 to 40 °C, rated life 20,000 hours
Specifications
| Model | COB Series |
| Input voltage | 12V DC |
| IP rating | IP20 |
| Material | Aluminum |
| Colour temperature | 2700k -6000k |
| CRI | 80 |
| LED chip | Sanan optoelectronics |
| PCB width | 8mm(0.31in) |
| Control | Manual button |
| Dimmable | Yes |
| Lifespan | 20,000 hours |
| Working temperature | -20 - 40 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Wine cabinets and display cases
- Living room coves and shelving
- Advertising light boxes
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Does it need an aluminium profile?
It can be stuck directly to a clean surface. For a finished look and better heat transfer, mount it in an aluminium profile with a diffuser.
Should I order 12V or 24V?
Match the voltage of your power supply and controller. 24V is better for longer runs.
Can it be used in damp areas?
It is rated IP20, so keep it in dry indoor locations.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 50 pcs for this model. Ask us about samples for testing before a volume order.
