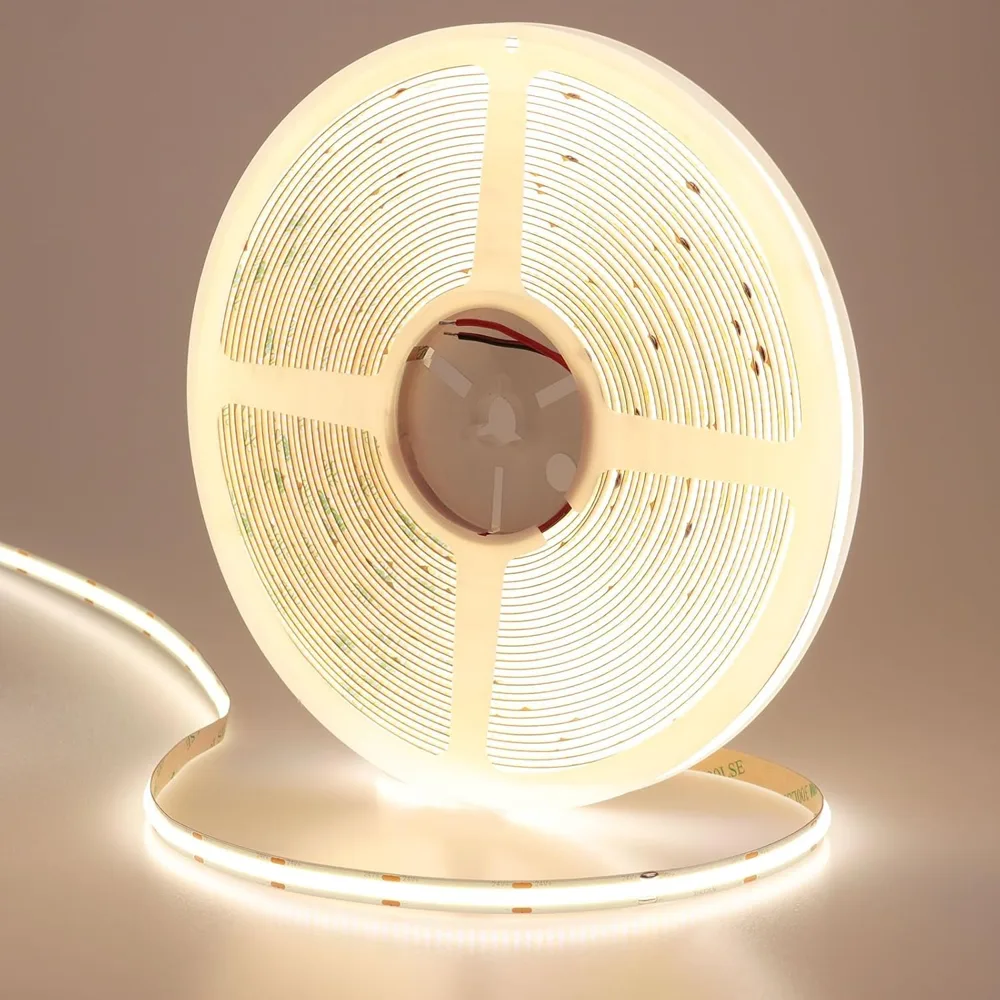

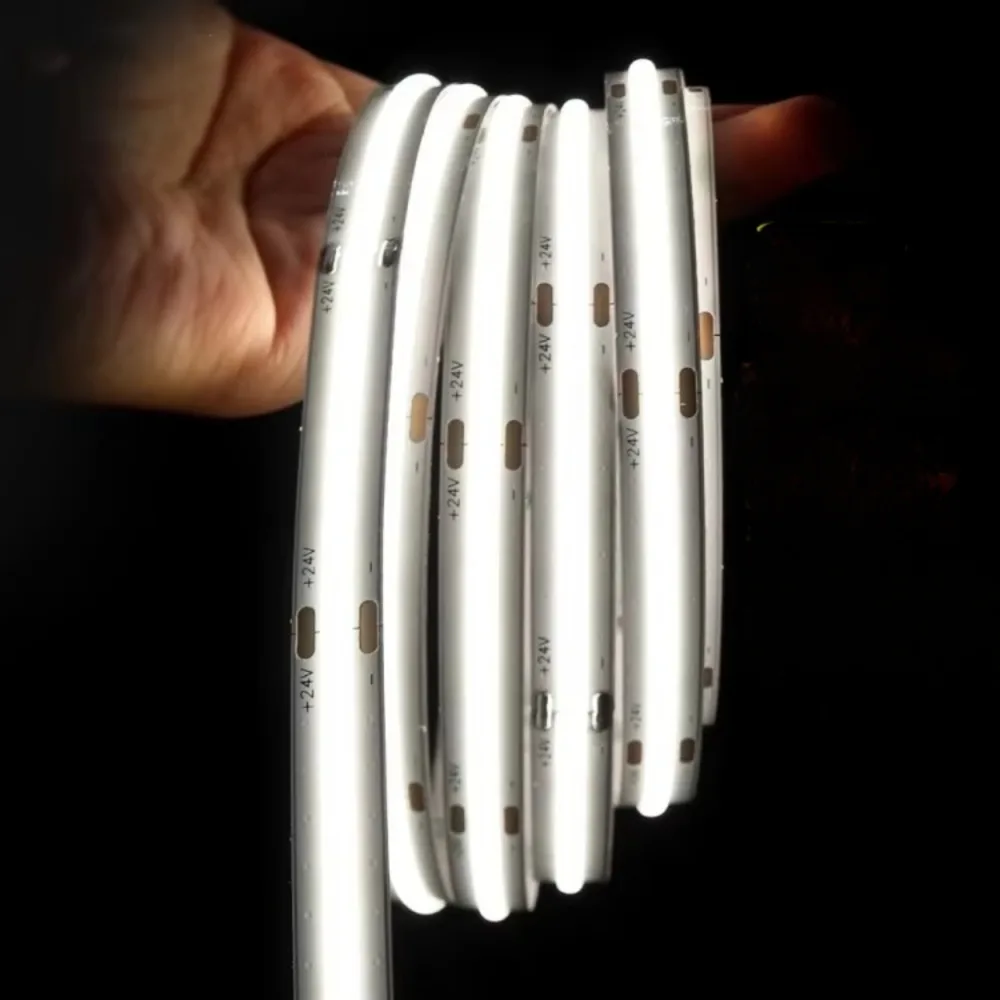

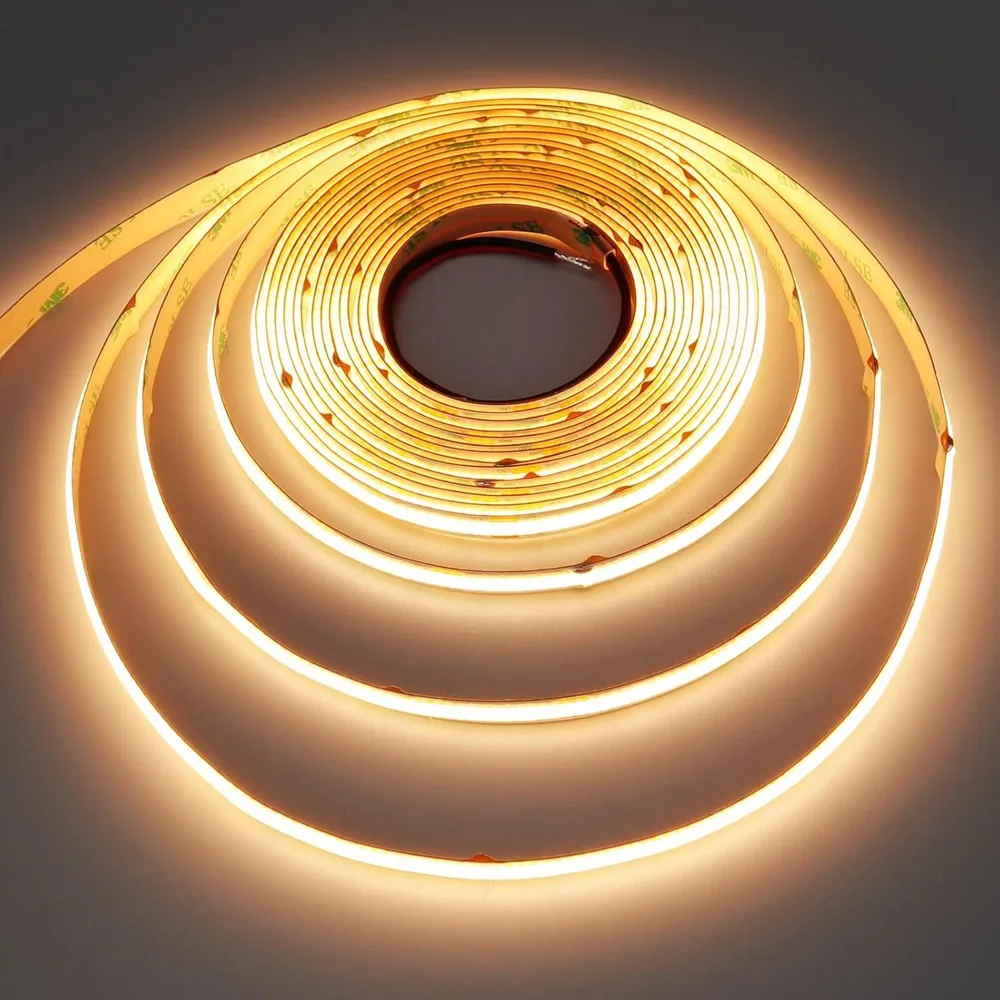

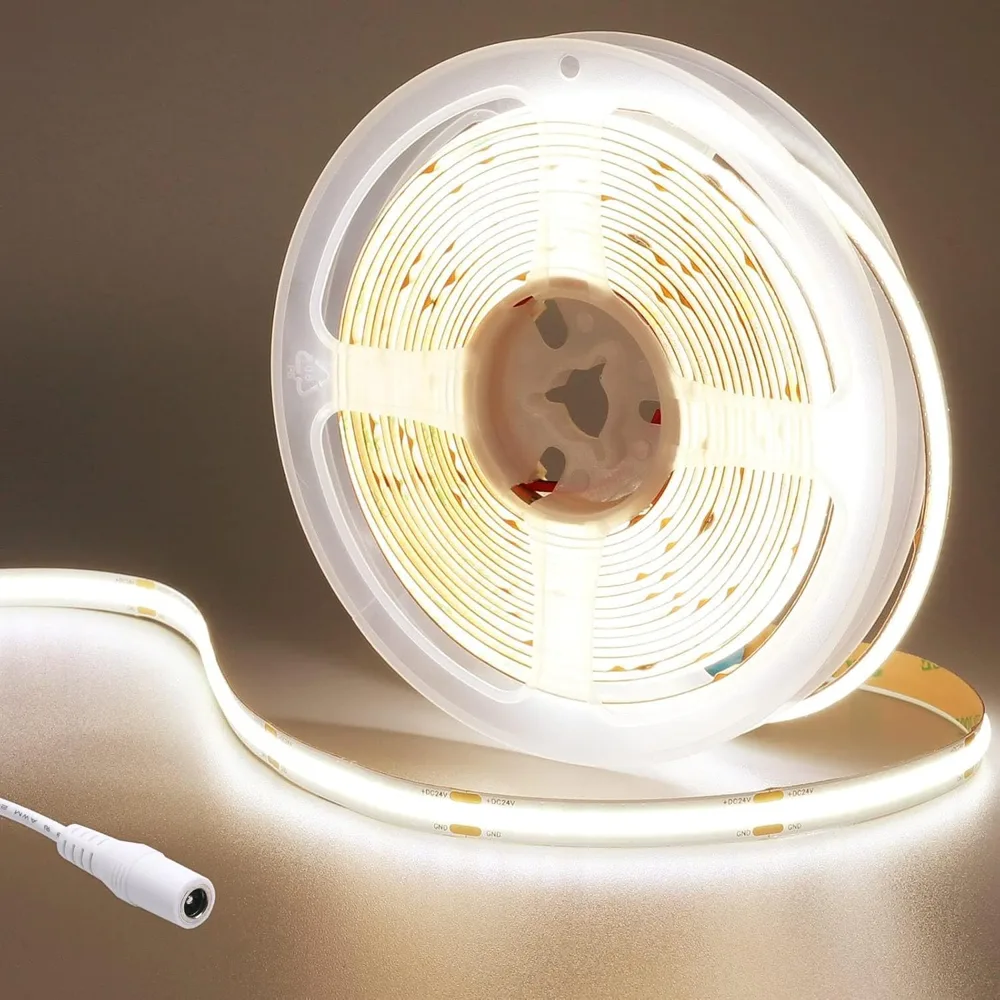

A5000-320 COB LED Strip, 320 LEDs/m, CRI 90, 12V / 24V
Give your mirrors and display cabinets a dense, even line of light with accurate colour. A5000-320 packs 320 LEDs per metre at CRI 90, so wood, fabric and skin look natural under it.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose A5000-320
CRI 90 on Epistar chips, which matters on vanity mirrors and display furniture where the customer judges colour.
IP20 and IP65 versions in 3000K, 4000K or 6500K let one strip family cover dry cabinets and damper spaces.
8W/m at 12V on an 8 mm copper PCB, listed at 100 lm/W, supplied on 5 m rolls. MOQ 50 pcs.
A5000-320 is a high-density COB strip with 320 LEDs per metre and CRI 90, for lighting where colour accuracy matters. It runs on 12V or 24V DC and draws 8W/m at 12V on an 8 mm copper PCB with Epistar chips. Choose 3000K, 4000K or 6500K, with IP20 or IP65 versions, supplied on 5 m rolls and rated for 50,000 hours.
Key features
- 320 LEDs/m COB, CRI 90
- 12V or 24V DC; 8W/m at 12V
- Epistar chips, listed at 100 lm/W
- 3000K, 4000K or 6500K
- IP20 or IP65 versions
- 8 mm copper PCB, 5 m per roll, working temperature -20 to 60 °C
Specifications
| Model | A5000-320 |
| Input voltage | 12V / 24V DC |
| IP rating | IP65/IP20 |
| Material | Copper |
| Colour temperature | 3000K-6500K |
| CRI | 90 |
| LED chip | Epistar |
| PCB width | 8mm(0.31in) |
| Control | Remote Control |
| Dimmable | Yes |
| Lifespan | 50,000 hours |
| Working temperature | -20 - 60 |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Retail and jewellery display lighting
- Kitchen worktop task lighting
- Garden and covered outdoor areas with the IP65 version
OEM options for this model
- Colour temperature
- Reel length and cut points
- Lead and connector
- Reel label and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Why CRI 90?
A higher CRI shows colours of food, fabric and products more accurately, which matters in displays and kitchens.
Which version for a damp area?
Choose the IP65 version for damp or covered outdoor areas and IP20 for dry interiors.
Is an RGB version available?
The title mentions RGB, but the listed options are 3000K, 4000K and 6500K whites. Tell us if you need RGB and we confirm.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 50 pcs for this model. Ask us about samples for testing before a volume order.
