YTSMK001 IR Double-Door Sensor Switch, 12/24V 60W
Light a two-door cabinet with one switch instead of two. YTSMK001 sits in the frame and turns the light on when either door opens and off when both close, so you fit and wire one switch instead of two.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose YTSMK001
It covers both doors of a double-door cabinet, so there is one part to mount and one lead to run.
Infrared detection at 5-8 cm with no contact, so there is no mechanical button to stick or misalign.
12V or 24V DC, 5A / 60W, IP22 ABS in black or white. Order from 2 pcs.

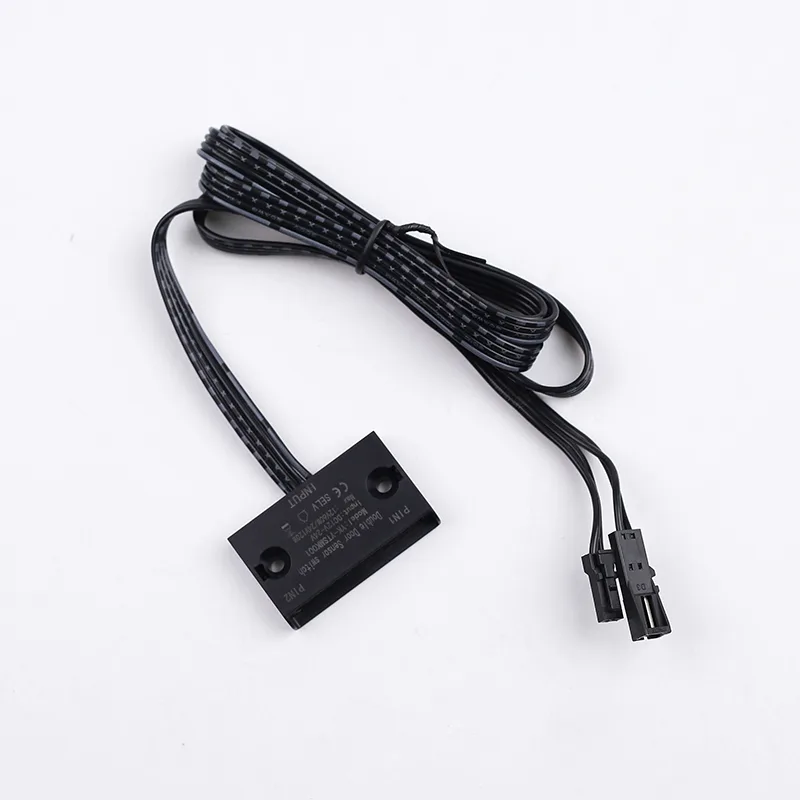

YTSMK001 is an infrared double-door sensor switch: fixed in the frame of a two-door cabinet, it turns the light on when either door opens and off when both close. It detects at 5-8 cm and runs on 12V or 24V DC with a 5A / 60W load. The IP22 ABS housing comes in black or white, and one unit replaces two separate door switches.
Key features
- Double-door sensing: one switch covers both doors
- Detection range 5-8 cm
- 12V or 24V DC, 5A / 60W
- IP22 ABS housing, black or white
- No contact, no mechanical plunger

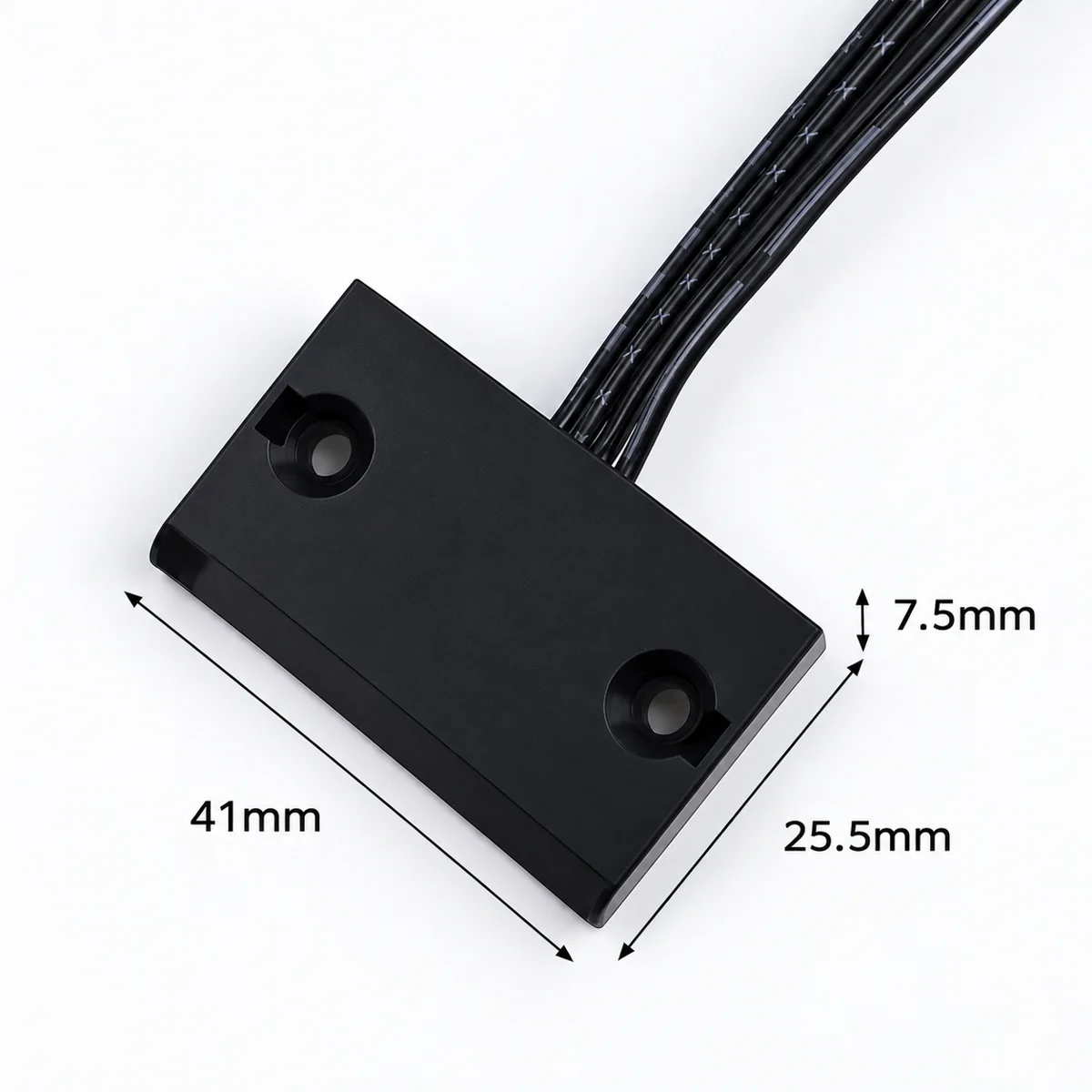

Specifications
| Model | YTSMK001 |
| Type | Double door sensor switch |
| Input voltage | 12V / 24V DC |
| Max load | 60W / 100W |
| Sensing range | 5-8 cm |
| IP rating | IP22 |
| Material | Abs |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.

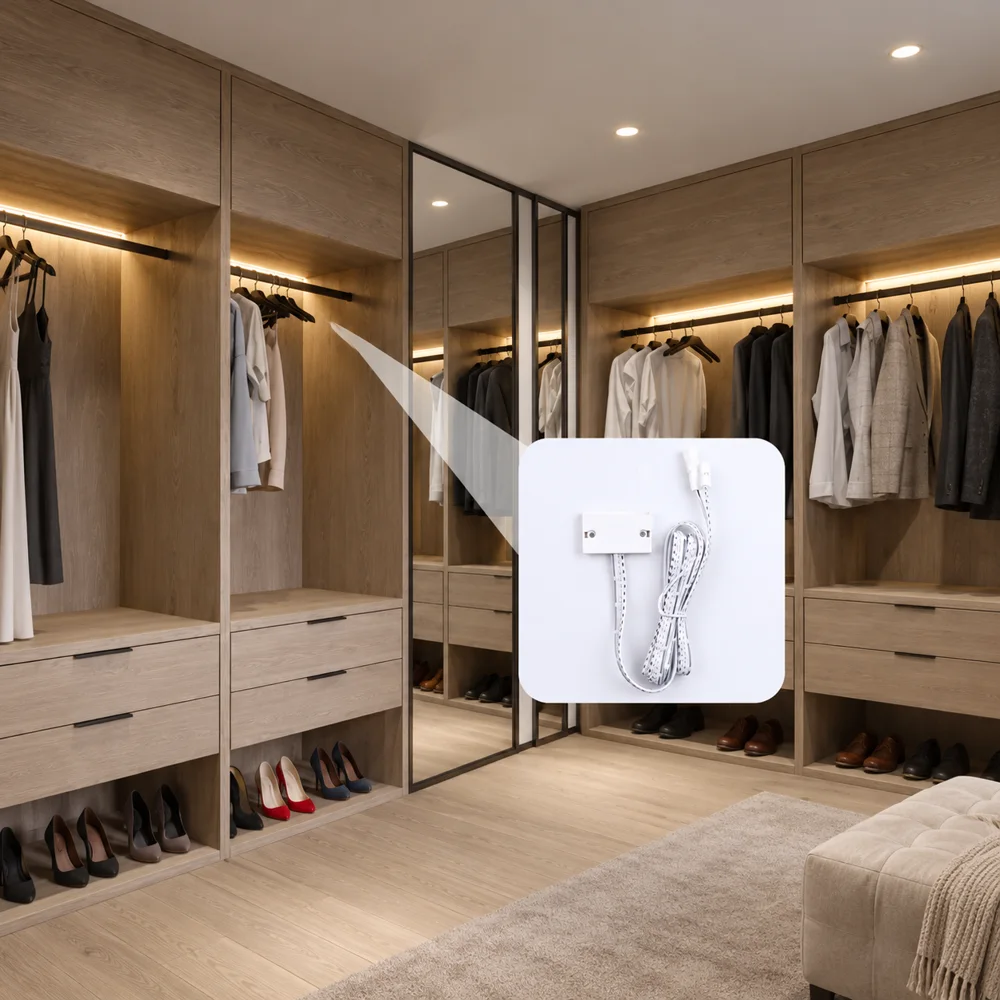

Where it is used
- Double-door kitchen cabinets
- Wardrobes
- Under-stair storage cupboards
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions

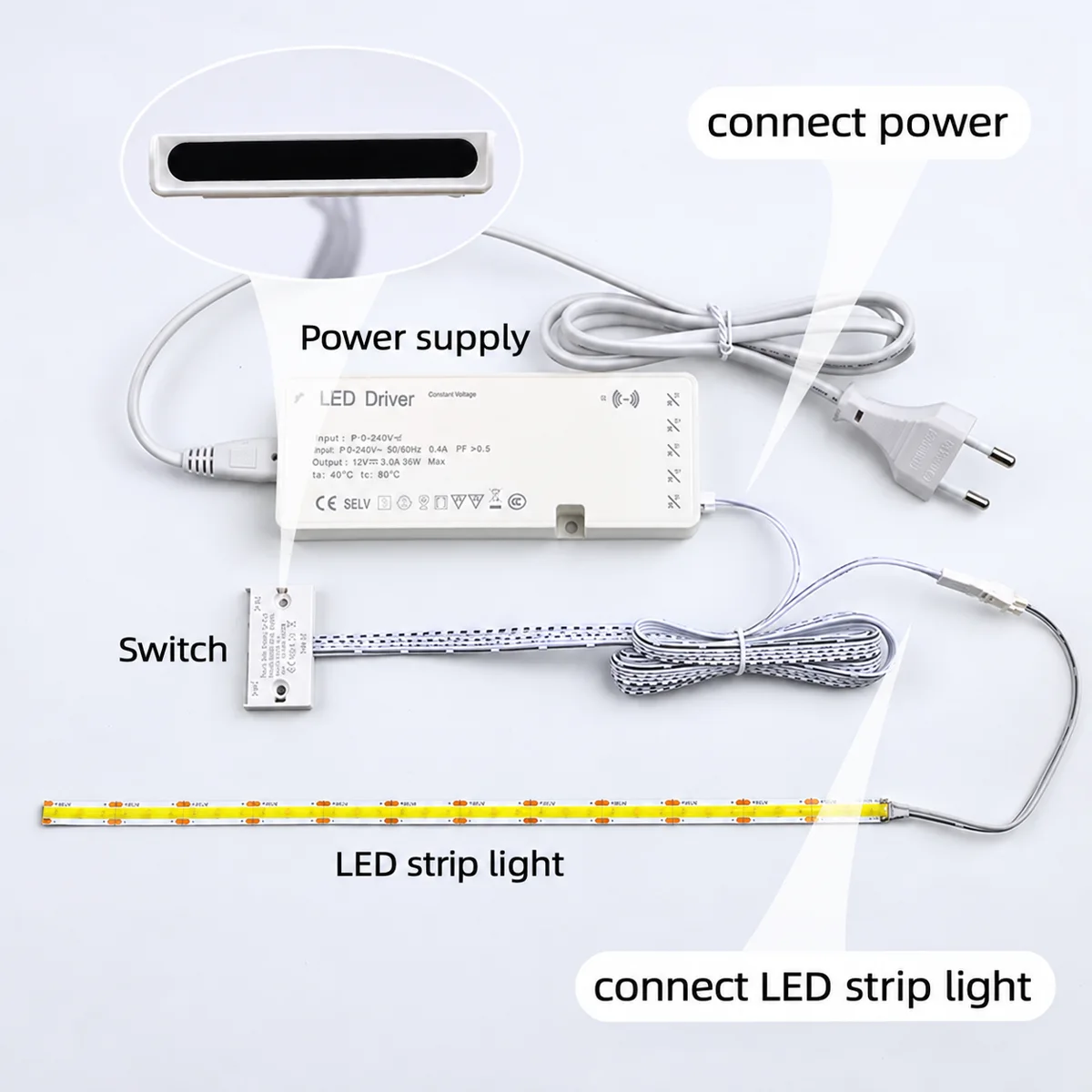

Where do I mount it?
On the cabinet frame between the two doors, facing them, within 5-8 cm of the closed doors.
What load can it handle?
It is listed at 5A / 60W on 12V or 24V DC. Send your strip spec if you are close to that figure.
Do you have a single-door version?
Yes, our range includes single-door infrared sensor switches. Tell us your door layout and we suggest one.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before your first order.
