Shinechip

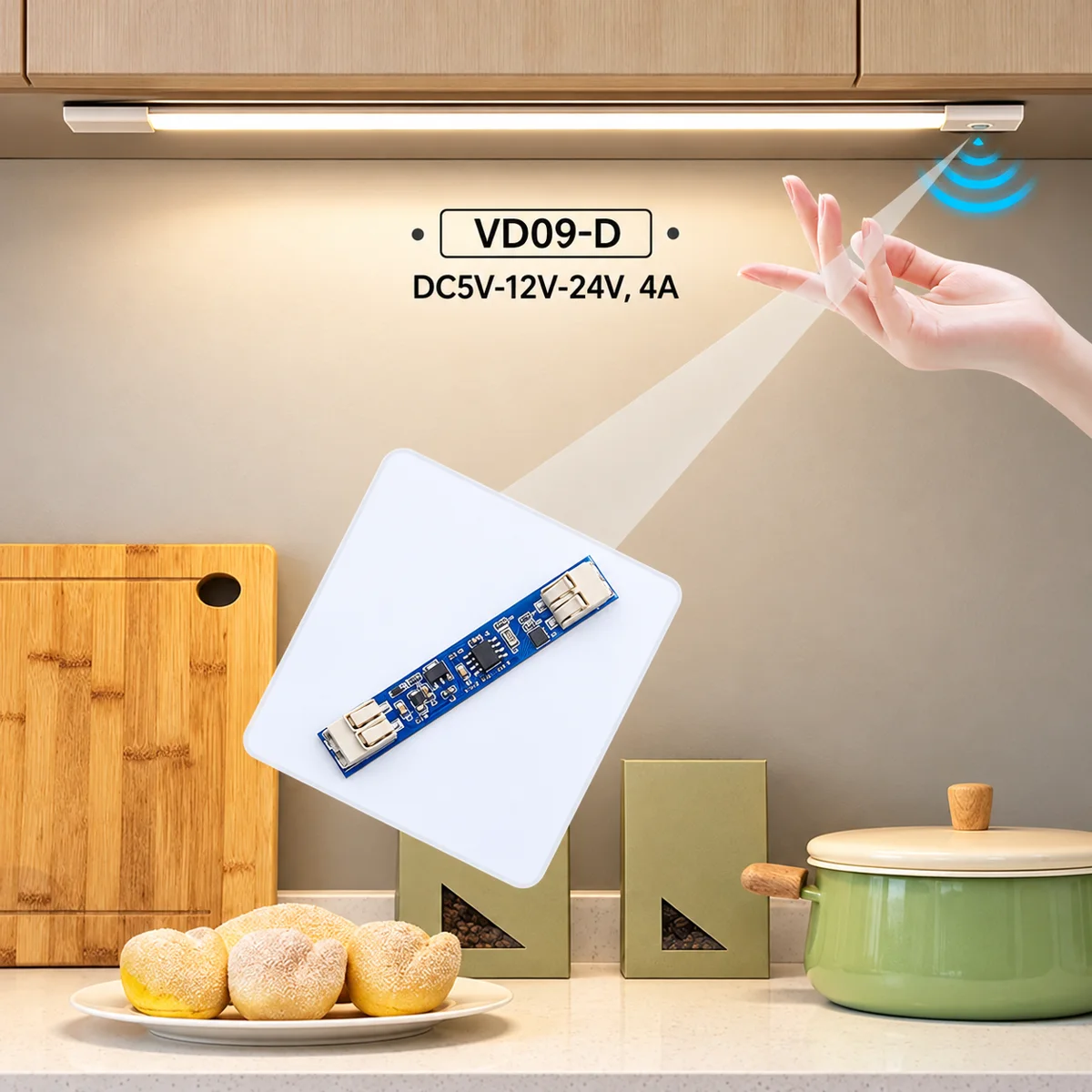

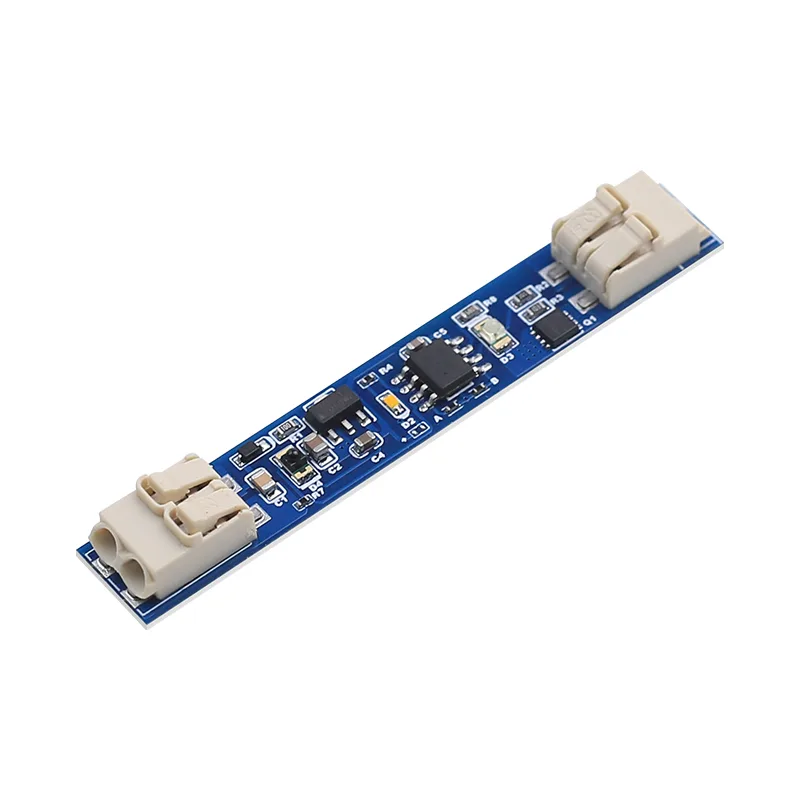

VD09-D Cabinet Touch Sensor Switch, 12V/24V 4A, 1-8 cm
Cover both basic and dimmable cabinet lights with one switch family. VD09-D is a stand-alone touch sensor in hard or fade switching, each with or without dimming, so you match the mode to each cabinet price point.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose VD09-D
Hard on/off, fade on/off and each of those with dimming, so entry and upgraded cabinet models use the same switch body.
It works as its own unit with a listed sensing range of 1-8 cm, so it pairs with the strip and channel you already use.
4A gives up to 48W on 12V or 96W on 24V strip, in IP20 ABS for dry cabinet interiors. Sample from 2 pcs.
VD09-D is a stand-alone touch sensor light switch for LED cabinet lighting, sold in four switching modes so one model family covers both simple and dimmable cabinets. It accepts 12V or 24V DC at 4A, which means up to 48W on a 12V strip or 96W on a 24V strip. Sensing range is listed as 1-8 cm, and the housing is IP20 ABS.
Key features
- Four modes: hard on/off, fade on/off, and each of those with dimming
- Up to 48W at 12V or 96W at 24V (4A)
- Listed sensing range 1-8 cm
- IP20 ABS housing for dry cabinet interiors
- Listed MOQ of 2 pcs makes sample testing simple
Specifications
| Model | VD09-D |
| Input voltage | 12V / 24V DC |
| Max load | 48W / 96W |
| Sensing range | 1-8 cm |
| IP rating | IP20 |
| Material | Abs |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Kitchen wall cabinets
- Bookshelves and display cabinets
- Bedroom wardrobes
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Do I need the dimming version?
Choose dimming if users should set the brightness; choose on/off only for simple lights. Fade versions ramp the light rather than switching instantly.
How much LED strip can one switch run?
Divide the switch rating by your strip's watts per metre: up to 48W at 12V or 96W at 24V. Send us the strip spec and we check it.
Which power supply should I pair it with?
A 12V or 24V DC constant-voltage driver that matches your strip. Size the driver for the strip; the switch limit is 4A.
Can I order a sample?
Our Alibaba.com store lists an MOQ of 2 pcs for VD09-D, so a small test order is possible.
Other cabinet sensor switches
FeaturedFTS-04FTS-04 Round Hidden Touch Dimmer for Cabinets, 12V 60W
FTS-06FTS-06 Hidden Touch Dimmer for Furniture, 12-24V 60W
Featured▶ VideoSTD01STD01 Hidden Proximity Hand-Wave Dimmer for Cabinets, 12/24V
FTM01-AFTM01-A Touch Dimmer Switch for Cabinet LED Strips, 12-24V
Ask about VD09-D
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
