VD05F Hand-Sweep IR Sensor Module, 12/24V 8A, 0-7 cm
Build hand-sweep switching into your own lamps, profiles or furniture parts. VD05F is a bare PCBA sensor board, so the switch disappears inside your product and users wave a hand within 0-7 cm to switch the light.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose VD05F
The bare PCBA module fits inside a lamp, profile or furniture part, so there is no external switch housing.
Infrared hand-sweep triggering within 0-7 cm, with no contact with the light.
8A: 96W at 12V or 192W at 24V, IP22. MOQ is 1 pcs, so you can prototype with a single board.

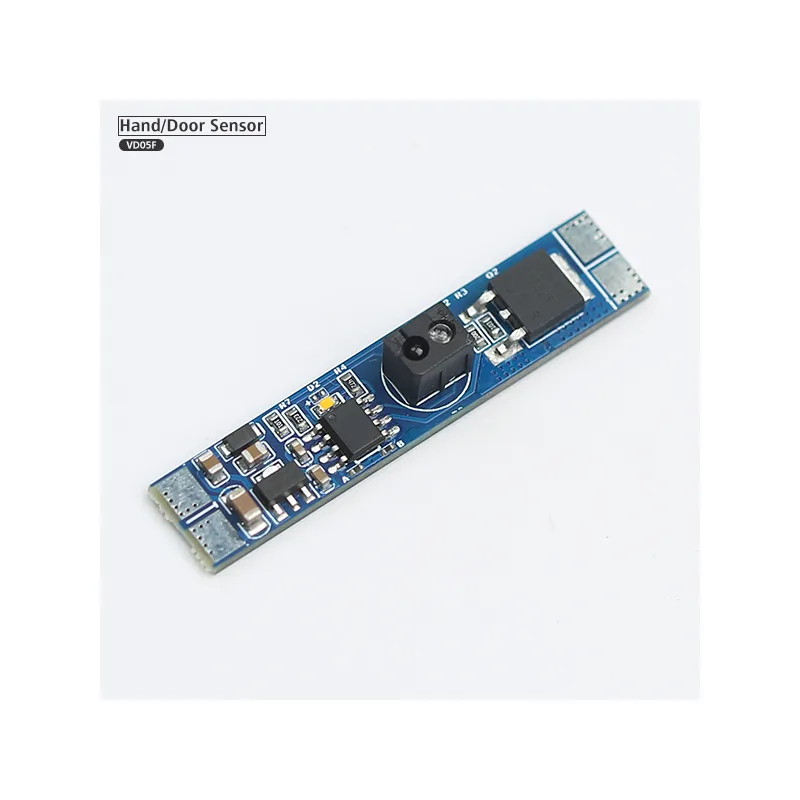

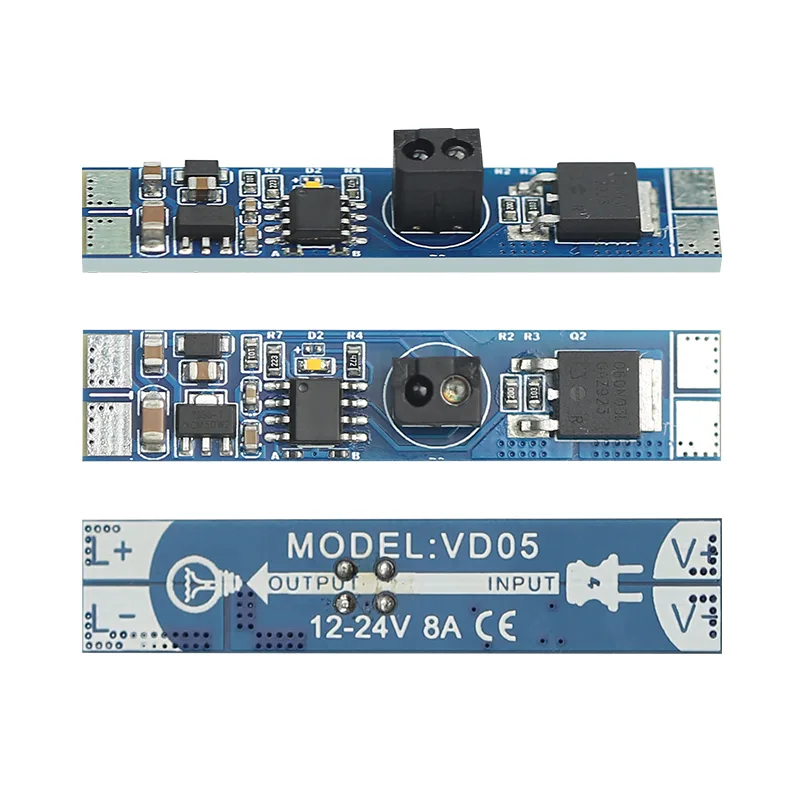

VD05F is a built-in infrared hand-sweep sensor module for LED cabinet and wardrobe lights: a wave of the hand within 0-7 cm switches the light. It is a bare PCBA board, meant to be built into a profile, lamp or furniture part. Rated at 8A, it handles 96W on 12V DC or 192W on 24V DC, and the store title also lists DC5V. Protection is IP22.
Key features
- Hand-sweep infrared triggering, no contact
- 0-7 cm sensing range
- 8A rated: 96W at 12V, 192W at 24V
- Store title lists DC5V, 12V and 24V
- Bare PCBA module for building into lamps or profiles
- IP22
Specifications
| Model | VD05F |
| Type | Proximity switch |
| Input voltage | 12V / 24V DC |
| Max load | 96W / 192W |
| Sensing range | 0-7 CM |
| IP rating | IP22 |
| Material | Pcba |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Wardrobe lights
- Kitchen under-cabinet lights
- LED profile lamps with a built-in sensor
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Can it run at 5V?
The title lists DC5V, but load ratings are given only for 12V and 24V. Tell us your 5V load and we confirm.
Does it need a housing?
Yes. It is a PCBA board, so your lamp, profile or furniture part provides the enclosure and keeps the sensor window clear.
How far does it sense?
Up to 7 cm. Place it where the hand passes close to the sensor, for example at the front edge of a shelf or profile.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 1 pcs for VD05F, so a single sample can be ordered.
