Shinechip
V1-T Single-Colour LED Dimmer, RF, Push-Dim & 0/1-10V, 20A
Handle projects where one strip needs a remote, a wall push switch and a 0/1-10V control signal. V1-T accepts all three, so installers wire one receiver instead of choosing between control systems.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose this model
RF remote, push-dim wall switch and 0/1-10V signal on one receiver.
20A output and a listed 720W maximum on 12-24V DC suit long single-colour runs.
Wired terminals in a black plastic housing, about 0.254 kg. MOQ 55 pcs.

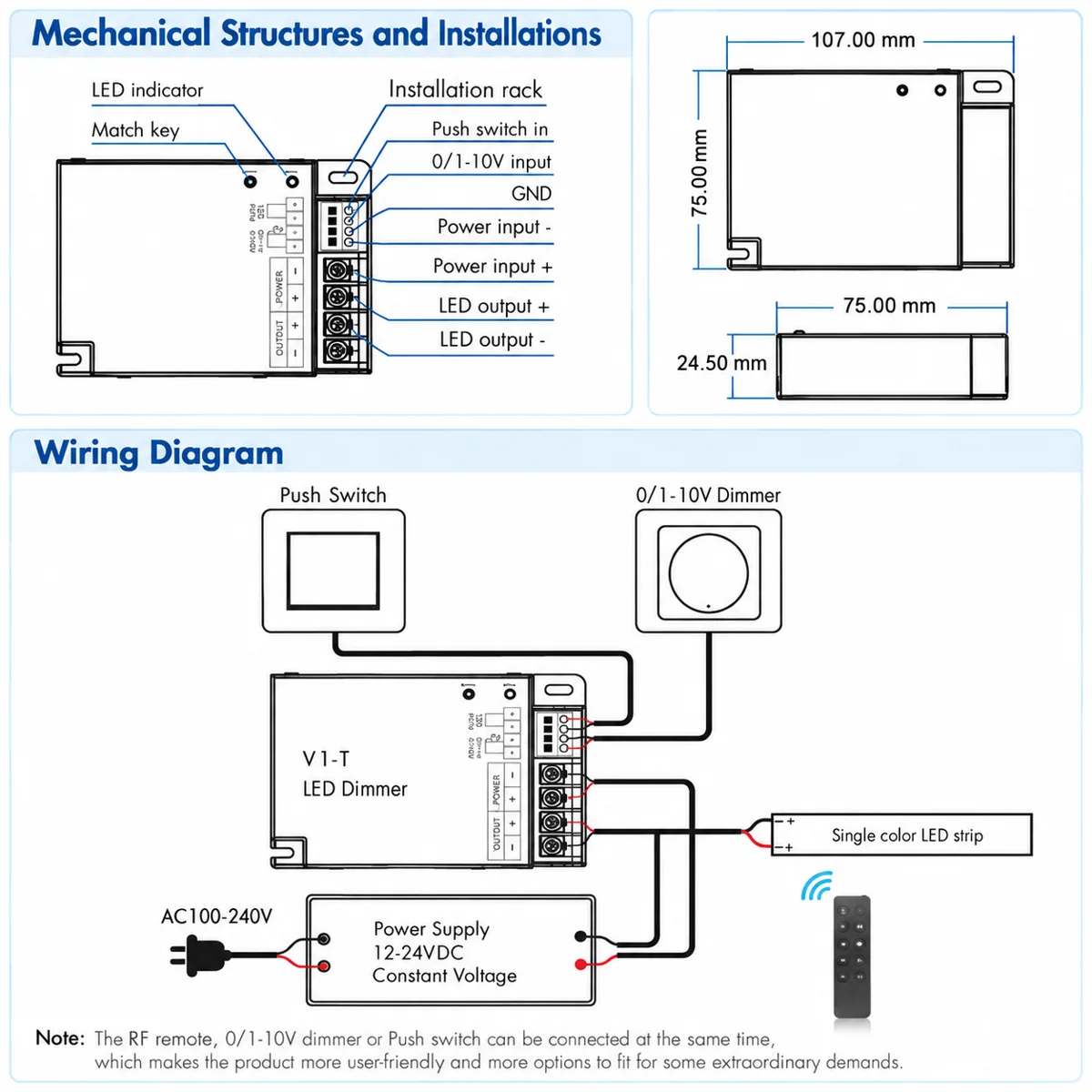

V1-T is a 1-channel receiver for single-colour LED strips that takes three control inputs: an RF remote, a wall push switch (push-dim) and a 0/1-10V signal. It is listed at 12-24V DC with 20A output and a maximum load of 720W. The black wired unit weighs about 0.254 kg, which suits projects where one strip needs both wireless and wall control.
Key features
- 3-in-1 control: RF remote, push-dim switch input, 0/1-10V signal
- 1 output channel, 20A
- 12-24V DC input
- Maximum load listed at 720W
- Wired terminals, black plastic housing, about 0.254 kg
Specifications
| Max load | 720 |
| Material | Plastic |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Kitchen and cabinet strips with a wall push switch
- Commercial strips on a 0/1-10V building system
- Ceiling cove lighting with remote control
OEM options for this model
- Remote key layout
- Logo on remote and box
- Packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Can I use an ordinary wall push button?
Yes, the push-dim input takes a momentary push switch: short press for on/off, hold to dim. Tell us your switch type and we confirm the wiring.
Does it accept a 0-10V or 1-10V signal?
Yes, the 0/1-10V input lets it follow a dimming signal from a building control system.
What load can it drive?
Up to 20A on one channel, listed at 720W maximum. Send us your strip wattage and voltage and we check the run.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 55 pcs for this model. Ask us about samples for testing before a volume order.
