TD03M Touch Switch with 3-Step CCT and Dimming, 12/24V
Give your cabinet and furniture lights three colour temperatures and dimming that come back exactly as the user left them. TD03M remembers its last setting after power-off and carries up to 192W on 24V.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose TD03M
Power-off memory keeps the last setting, so users do not reset colour and brightness every time the supply is cut.
The metal body senses a touch through 3-6 mm of material and is rated IP22.
TD03M-B4 switches hard on/off, TD03M-A4 fades. 96W at 12V or 192W at 24V. Order from 2 pcs.

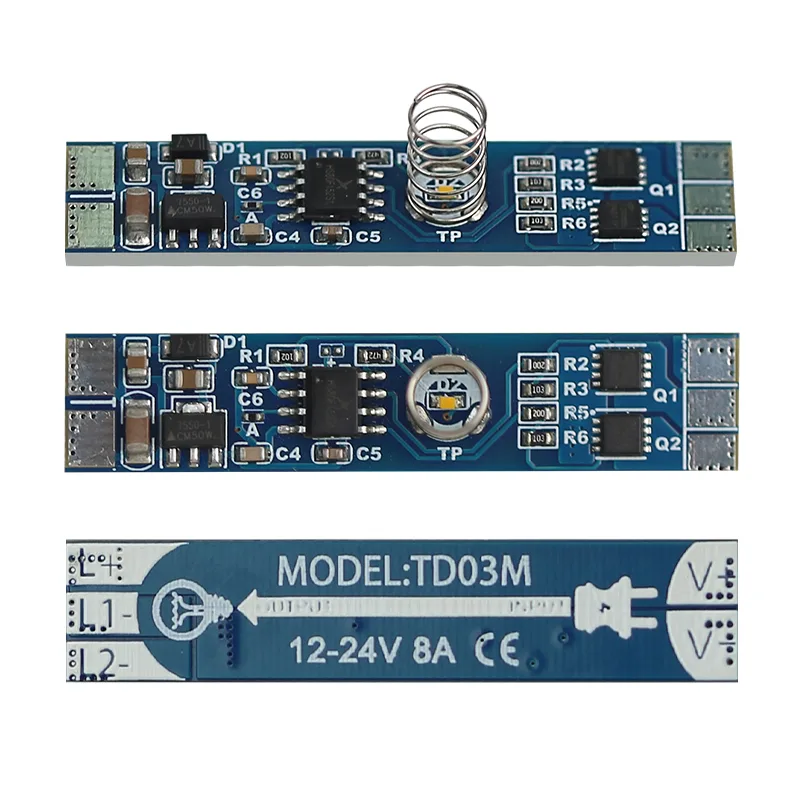

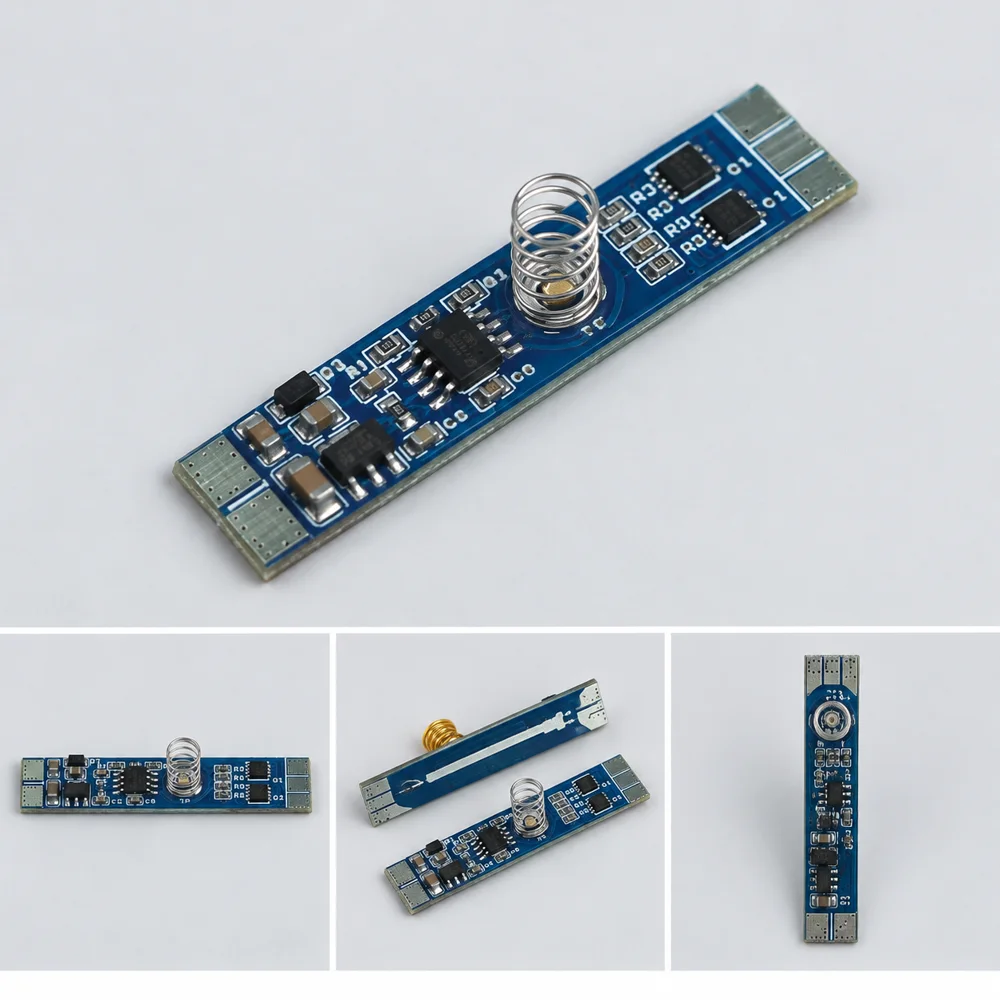

TD03M is a metal touch sensor switch that controls dimming and 3-step colour temperature (CCT) for LED strips, and remembers its last setting after power-off. It senses a touch through 3-6 mm of material, runs on 12V or 24V DC, and is rated 96W at 12V or 192W at 24V. Two versions are listed: TD03M-B4 with hard on/off and TD03M-A4 with fading on/off.
Key features
- 3-step colour temperature adjustment plus dimming
- Power-off memory keeps the last setting
- Senses through 3-6 mm
- 96W at 12V, 192W at 24V
- Metal body, IP22
- TD03M-B4: hard on/off; TD03M-A4: fading on/off
Specifications
| Model | TD03M |
| Input voltage | 12V / 24V DC |
| Max load | 12V96W; 24V192W |
| Sensing range | 3-6 mm |
| IP rating | IP22 |
| Material | Metal |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Kitchen cabinets with tunable white strips
- Mirror lights
- Corridor and staircase lighting
- Hotel rooms
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Do I need a CCT LED strip?
Yes. The colour temperature steps only work with a tunable white (CCT) strip. With a single-colour strip you would use dimming only.
What is the difference between TD03M-B4 and TD03M-A4?
Both have dimming and 3-step CCT. B4 switches the light on and off instantly; A4 fades it on and off.
Can you customise it?
The listing marks TD03M as customisable. Tell us the change you need, such as lead length or connector, and your quantity, and we confirm.
What is the MOQ?
Our Alibaba.com store starts from 2 pcs for TD03M.
