SZR-01 Metal Push Button Switch, 12-22 mm, IP67, 3A
Standardise on one sealed metal push button across your panels. SZR-01 comes in 12 to 22 mm sizes, momentary or latching, with an LED matched to your circuit voltage.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose SZR-01
12, 16, 19 and 22 mm versions let you use one switch style across panels with different cut-outs.
Self-reset or self-locking versions with 1NO1NC contacts at 3A, in IP67 with a round silver head.
LED versions for 3-6V, 12-24V or 110-220V, with mechanical life listed at 50000 times. From 2 pcs.
SZR-01 is a general-purpose metal push-button switch with a round head and LED, offered in momentary self-reset or fixed self-locking versions. It is rated IP67 and 3A with 1NO1NC contacts, and the LED comes in 3-6V, 12-24V or 110-220V versions. Sizes are 12, 16, 19 and 22 mm, the finish is silver, and the listed mechanical life is 50000 times.
Key features
- Momentary self-reset or fixed self-locking versions
- IP67, round head, silver finish
- 1NO1NC contacts, 3A

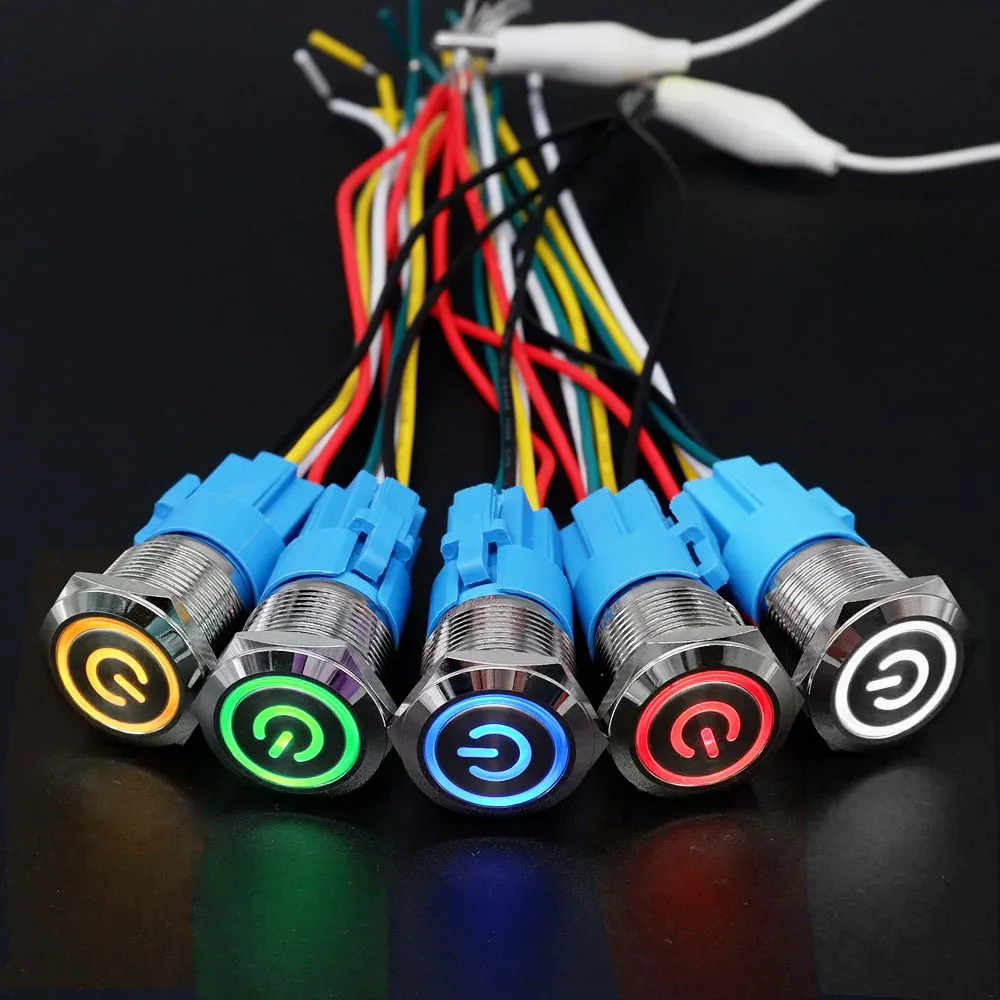

- LED versions for 3-6V, 12-24V or 110-220V

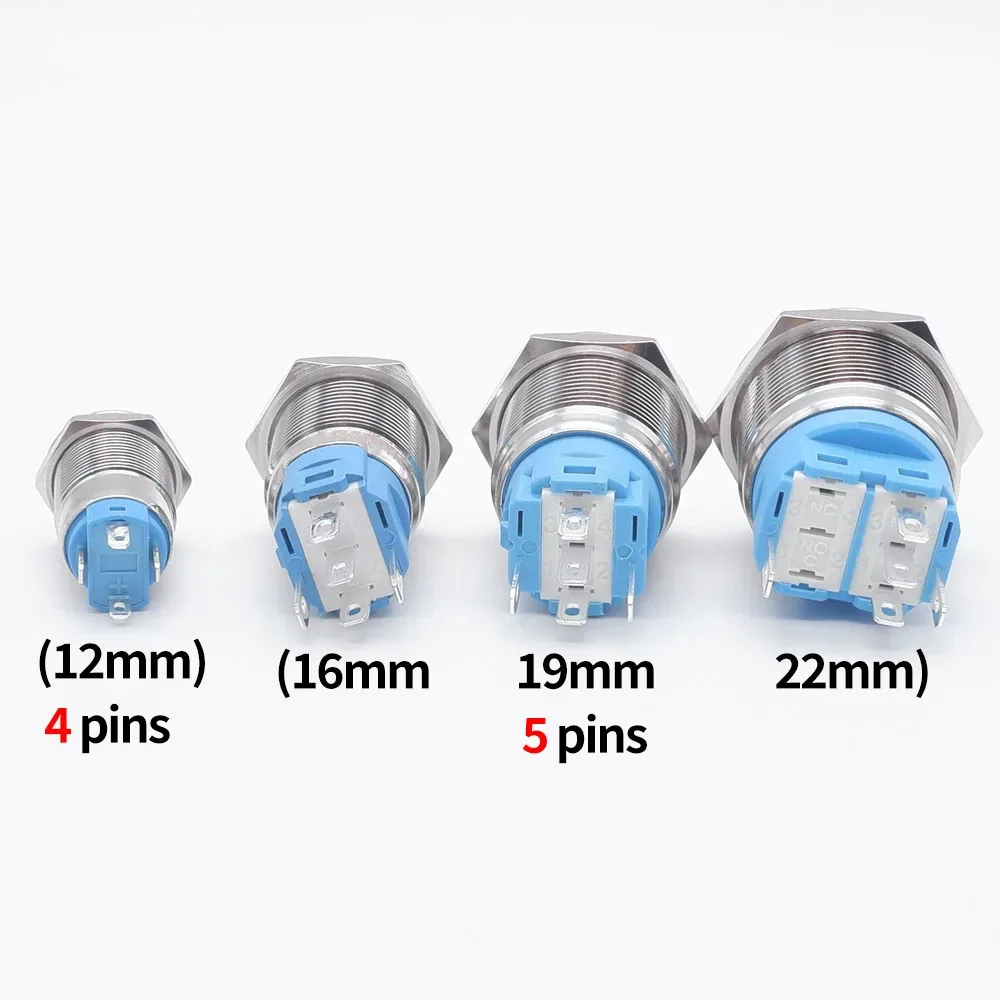

- 12, 16, 19 or 22 mm sizes
- Mechanical life listed at 50000 times
Specifications
| Model | SZR-01 |
| Max load | 3A |
| IP rating | Ip67 |
| Mechanical life | 50000 Times |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Vehicle and marine dashboards
- Kitchen appliances and furniture lighting switches
- Control panels
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Momentary or self-locking?
Momentary returns after each press, for signals to a controller. Self-locking stays on until pressed again, for switching a circuit directly.
Which LED voltage should I order?
Match your control circuit: 3-6V, 12-24V or 110-220V.
How do I wire it?
The listing gives screw terminals. Tell us your circuit and we confirm the wiring for the NO and NC contacts.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before a volume order.
