Shinechip
HY-YSN-D Latching Selector Switch with LED Ring, 16-22 mm
Give your equipment a lit rotary selector that shows its position at a glance. HY-YSN-D latches in 2 or 3 positions and is rated 5A, for mode and power selection on panels and machines.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose HY-YSN-D

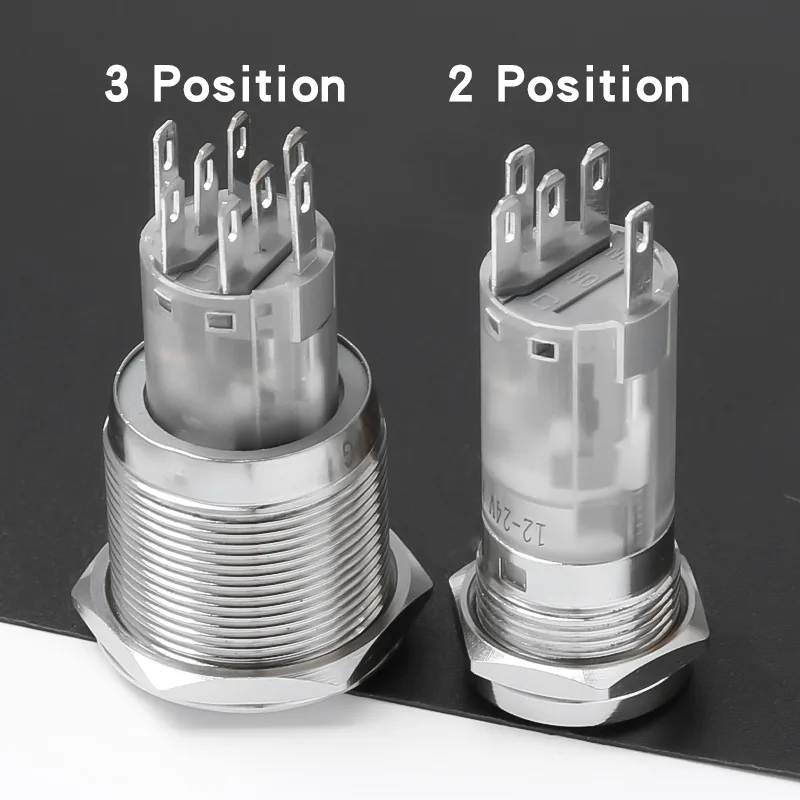

2-position or 3-position latching versions, with 1NO1NC or 2NO2NC contacts at 5A.
16, 19 or 22 mm sizes in a copper body rated IP65, with pin terminals.

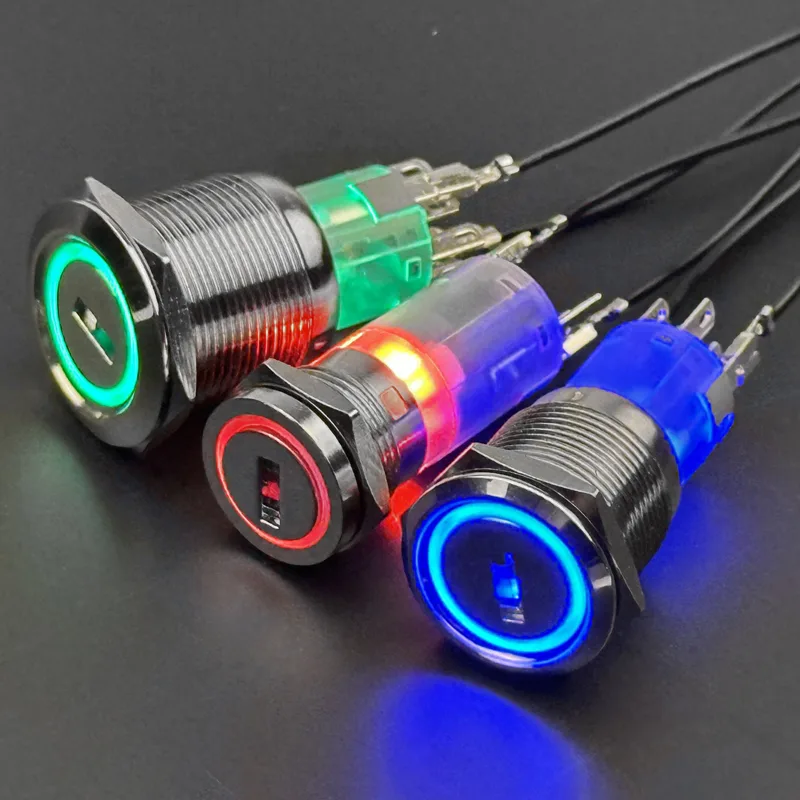

Red, white, blue, green or yellow LED ring for 3-6V, 12-24V or 110-220V circuits. From 2 pcs.
HY-YSN-D is a self-locking metal selector switch with a rotary knob head and LED ring, listed in the push-button switch range. It comes in 2-position or 3-position latching versions, in 16, 19 and 22 mm sizes, with 1NO1NC or 2NO2NC contacts rated 5A. It is IP65 with a copper body and pin terminals, and the LED ring comes in five colours for 3-6V, 12-24V or 110-220V.
Key features
- Rotary knob head, 2-position or 3-position latching
- 16, 19 or 22 mm sizes
- 1NO1NC or 2NO2NC contacts, 5A
- IP65, copper body, pin terminals
- LED ring in red, white, blue, green or yellow
- LED versions for 3-6V, 12-24V or 110-220V
Specifications
| Model | HY-YSN-D |
| Max load | 5A |
| IP rating | IP65 |
| Material | Copper |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Mode selection on control panels
- Electrical equipment and machine fronts
- Kitchen appliance and lighting mode switches
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is this a push button or a knob?

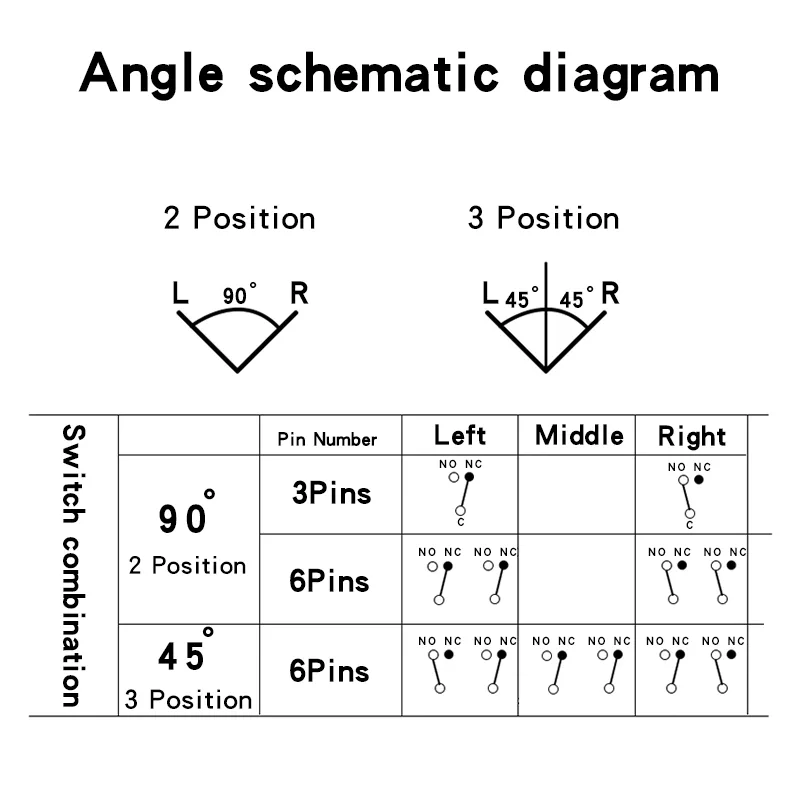

It has a rotary knob head and latches in each position. Choose 2-position for on/off or 3-position for two modes plus off.
Which contacts should I order?
1NO1NC suits a single circuit with one normally open and one normally closed contact; 2NO2NC gives two of each.
Which LED voltage do I need?
Match your control voltage: 3-6V, 12-24V or 110-220V.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before a volume order.
Other cabinet sensor switches
FeaturedFTS-04FTS-04 Round Hidden Touch Dimmer for Cabinets, 12V 60W
FTS-06FTS-06 Hidden Touch Dimmer for Furniture, 12-24V 60W
Featured▶ VideoSTD01STD01 Hidden Proximity Hand-Wave Dimmer for Cabinets, 12/24V
FTM01-AFTM01-A Touch Dimmer Switch for Cabinet LED Strips, 12-24V
Ask about HY-YSN-D
Send the switch type, voltage, load and quantity, or a photo of the switch you use today. We reply with model options, MOQ, price and lead time.
