HY-19MM-CD-RGB 19 mm IP67 Metal Push Button, 1NO, Black
Give low-voltage appliances a sealed, illuminated control in a black finish. HY-19MM-CD-RGB is a 19 mm metal button with ring or power-symbol lighting and pin terminals for easy wiring into your control board.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose HY-19MM-CD-RGB

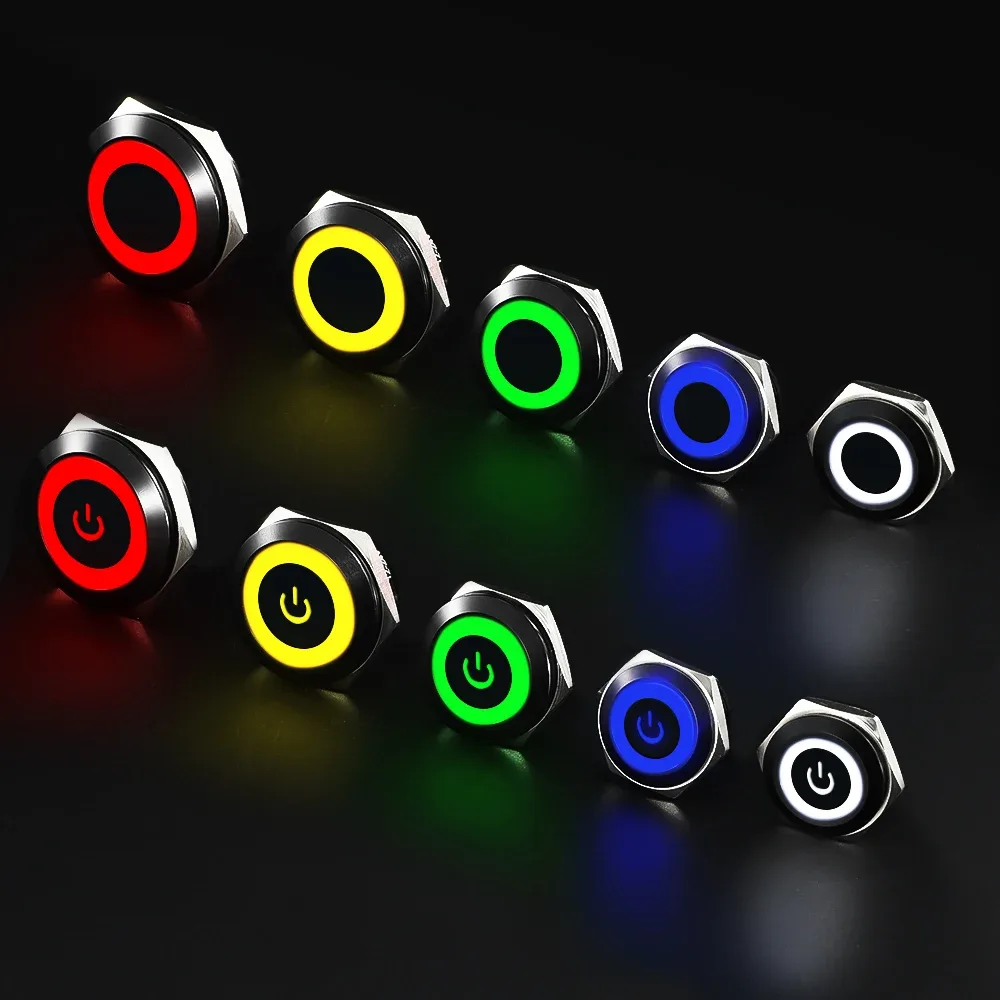

Ring or power-symbol illumination on a black metal body helps users find the button on dark appliance panels.
Pin terminals make it easy to wire into a control board on low-voltage appliances.
Flat or high head, LED for 3-6V or 12-24V, IP67, 1NO contact for 0.5A at up to 24V. From 2 pcs.

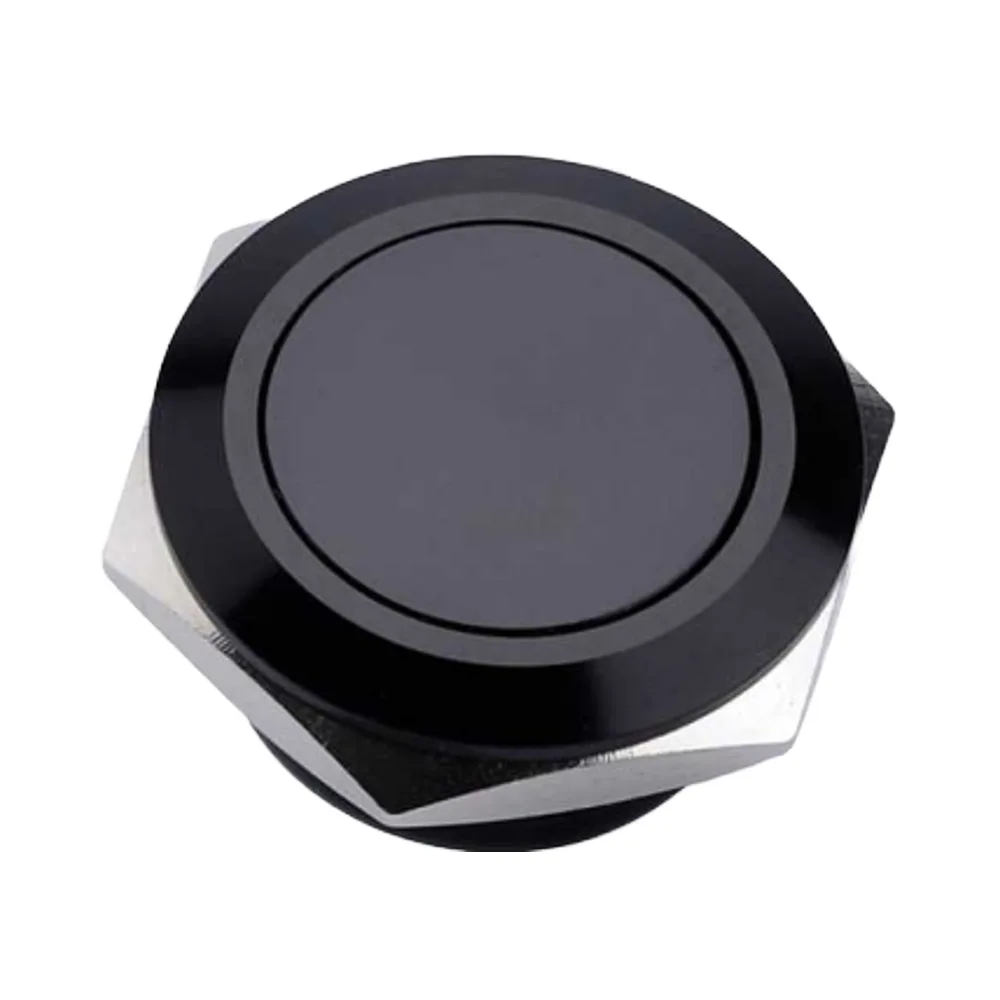

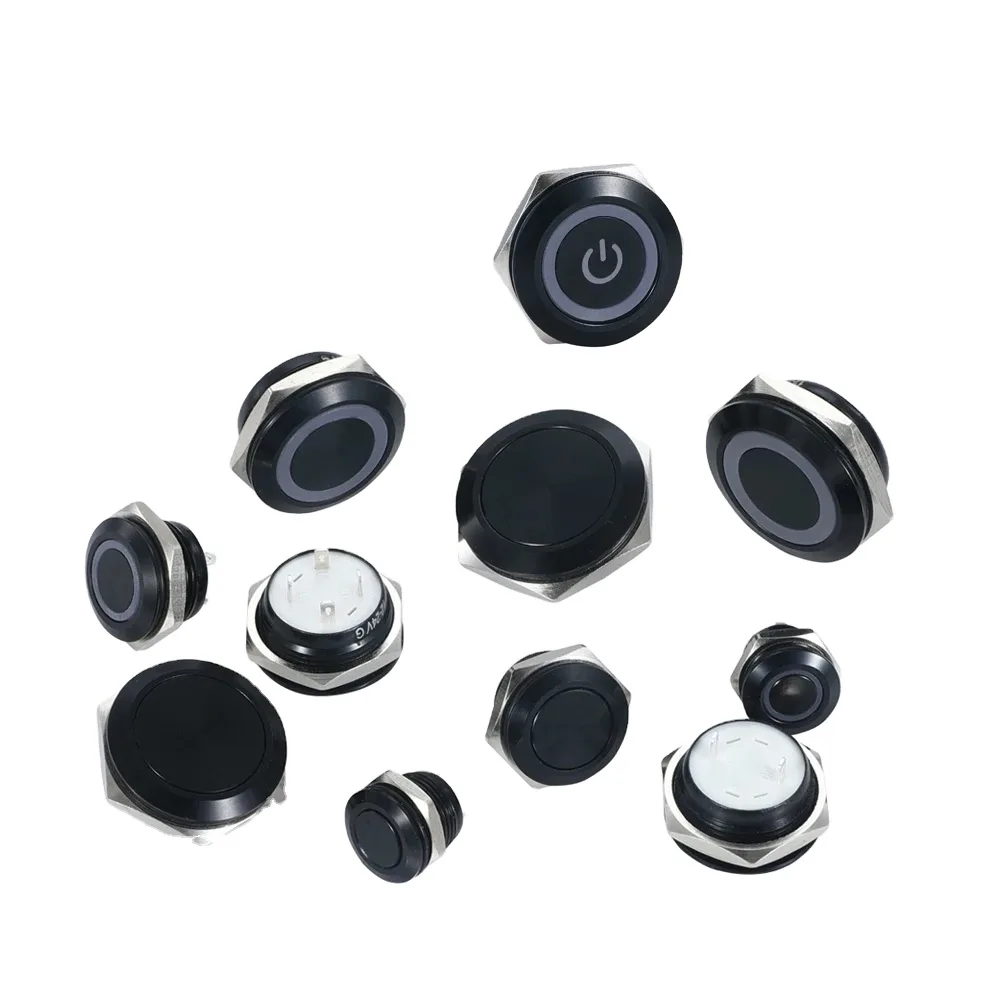

HY-19MM-CD-RGB is a 19 mm metal push-button switch with a black housing and LED illumination, for low-voltage home appliance controls. It is rated IP67 with a single 1NO contact for up to 0.5A at 24V. It comes with a flat or high head, ring or power-symbol illumination, LED versions for 3-6V or 12-24V, and pin terminals for easy wiring into a control board.
Key features
- 19 mm mounting size, black metal housing
- IP67
- 1NO contact, 0.5A, up to 24V
- Flat head or high head
- Ring or power-symbol illumination; LED for 3-6V or 12-24V
- Pin terminals
Specifications
| Model | HY-19MM-CD-RGB |
| Max load | 0.5A |
| IP rating | Ip67 |
| Material | Metal |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Home appliance control panels
- Kitchen and furniture LED lighting switches
- Low-voltage DIY and electronics projects
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Can it switch an LED strip directly?
Its contact is rated 0.5A at up to 24V, so use it as a signal switch for a dimmer or relay rather than switching a large strip load.
Flat head or high head?
The flat head sits nearly flush with the panel; the high head stands out for easier pressing. Tell us your panel design.
Which LED voltage do I need?
Order 3-6V or 12-24V to match your control circuit.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before a volume order.
