Shinechip
HSUS22F-10 22 mm Anti-Damage Push Button Switch, IP65
Put a tough button on exposed panels that get pressed and knocked all day. HSUS22F-10 has an ultra-short stainless steel body and anti-damage design, so it suits public-facing equipment and shallow enclosures.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose HSUS22F-10
The ultra-short stainless body needs little depth behind a 22 mm mounting hole.
Anti-damage design and IP65 suit panels that are touched and wiped often.
Ring LED, power LED or no LED in five colours, for 3-6V, 12-24V or 220V; 1NO contact, 1A. From 2 pcs.

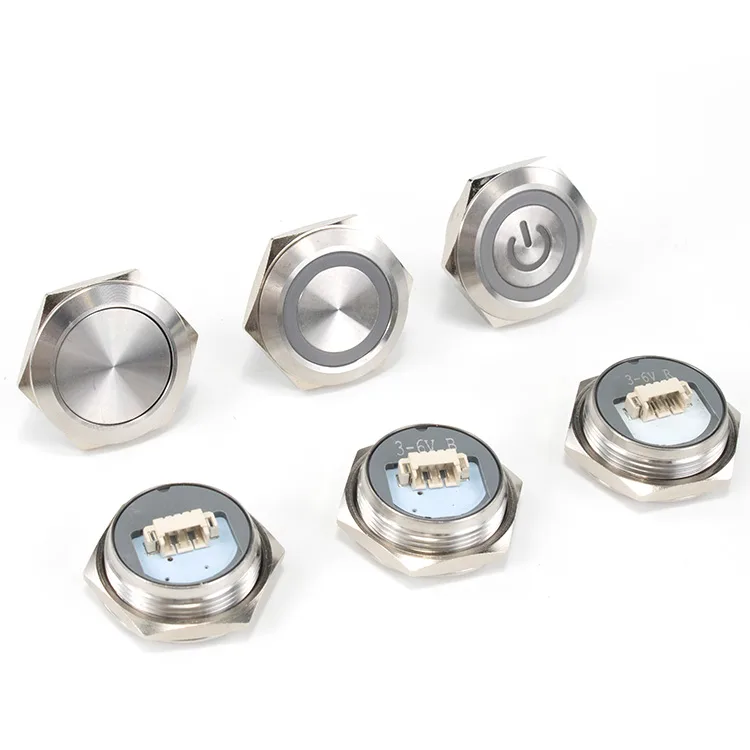

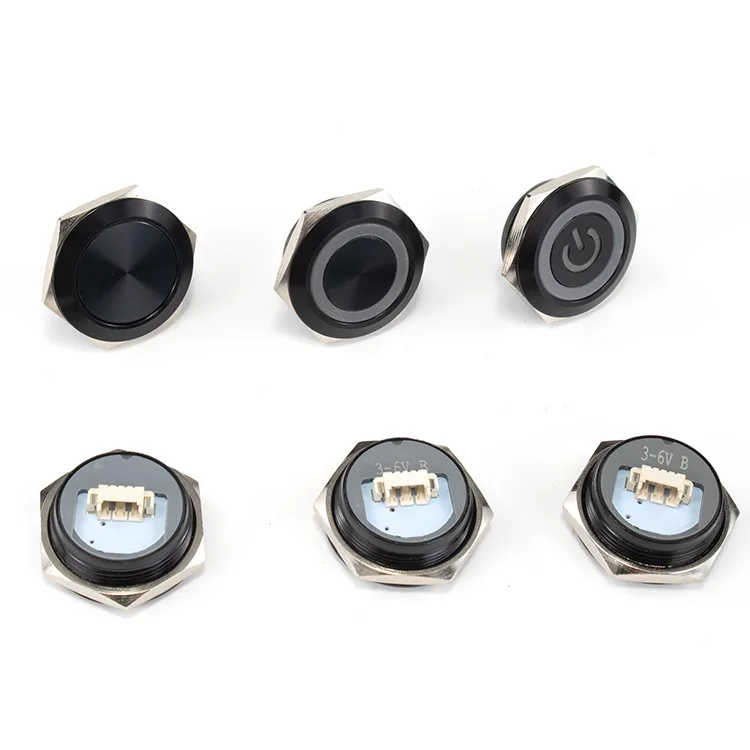

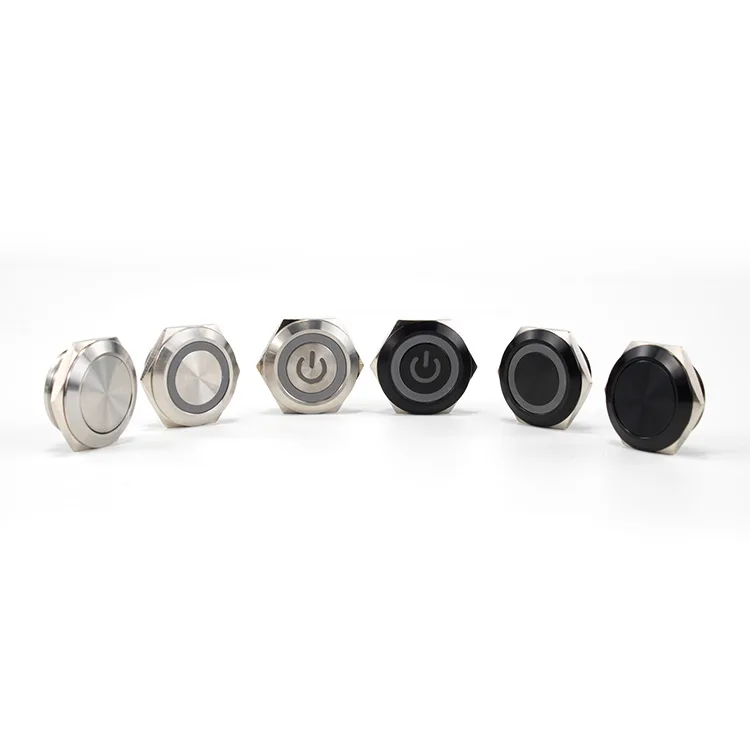

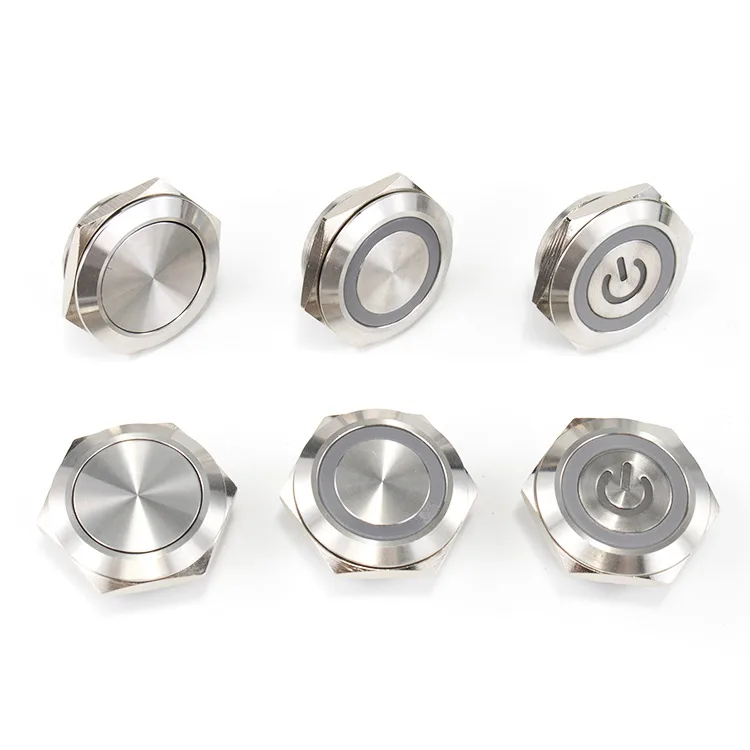

HSUS22F-10 is a 22 mm momentary (instantaneous) push-button switch with an ultra-short stainless steel body and an anti-damage design for exposed panels. It is rated IP65 with a 1NO contact for up to 1A at 220V. It is offered with ring LED, power-symbol LED or no LED, LED voltages of 3-6V, 12-24V or 220V, five LED colours, and plug terminals.
Key features
- 22 mm momentary push button, flat head
- Ultra-short stainless steel body, anti-damage design
- IP65
- 1NO contact, 1A, up to 220V
- Ring LED, power LED or no LED; LED for 3-6V, 12-24V or 220V
- Yellow, white, red, blue or green LED; plug terminals
Specifications
| Model | HSUS22F-10 |
| Max load | 1A |
| IP rating | IP65 |
| Material | Stainless Steel |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Industrial control panels
- Public and commercial equipment fronts
- Kitchen appliance and furniture switches
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Will it fit a shallow panel?
Yes, it has an ultra-short body for installations with little depth behind the panel.
Can I order it without an LED?
Yes, a version without LED is listed alongside ring and power LED versions.
How is it different from HSUS22F-10E?
HSUS22F-10 has a stainless steel body, plug terminals, a no-LED option and a 220V LED option; the 10E version uses an aluminium body with pin terminals.
What is the MOQ?
Standard orders start from 2 pcs. Ask us about samples for testing before a volume order.
