Shinechip

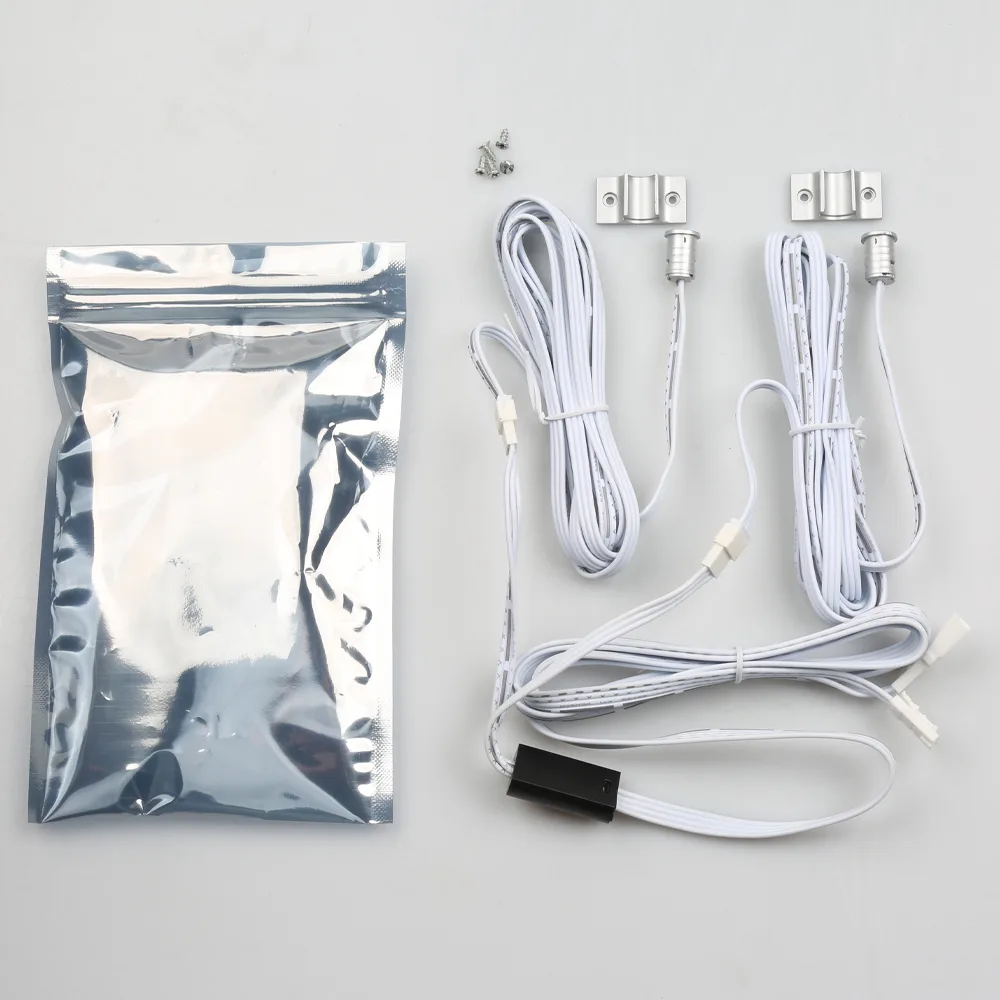

FVD03-B-V1 IR Door Sensor Switch for Double Doors, 12/24V 5A
Light double-door cabinets automatically as the doors open. FVD03-B-V1 reads the doors by infrared from 6-10 cm, so nothing touches the door, and the light goes off again when they close.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose FVD03-B-V1
It is built for cabinets with double doors: light on when the doors open, off when they close.
Infrared detection at 6-10 cm gives you mounting freedom inside the carcass, with no part for the door to hit.
12V or 24V DC, 5A rated with listed loads of 60W / 100W, in a white IP20 ABS housing. Sample from 2 pcs.
FVD03-B-V1 is an infrared door sensor switch for cabinets with double doors: the LED light comes on when the doors open and goes off when they close. It detects the door at 6-10 cm and runs on 12V or 24V DC. The rated current is 5A, with listed loads of 60W and 100W, and the housing is white ABS rated IP20.
Key features
- Made for cabinets with double doors
- Infrared detection, no contact with the door
- 6-10 cm sensing distance
- 12V / 24V DC input, 5A rated
- Listed loads 60W / 100W
- White ABS housing, IP20
Specifications
| Model | FVD03-B-V1 |
| Type | IR door sensor switch |
| Input voltage | 12V / 24V DC |
| Max load | 60W / 100W |
| Sensing range | 6-10 cm |
| IP rating | IP20 |
| Material | Abs |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.

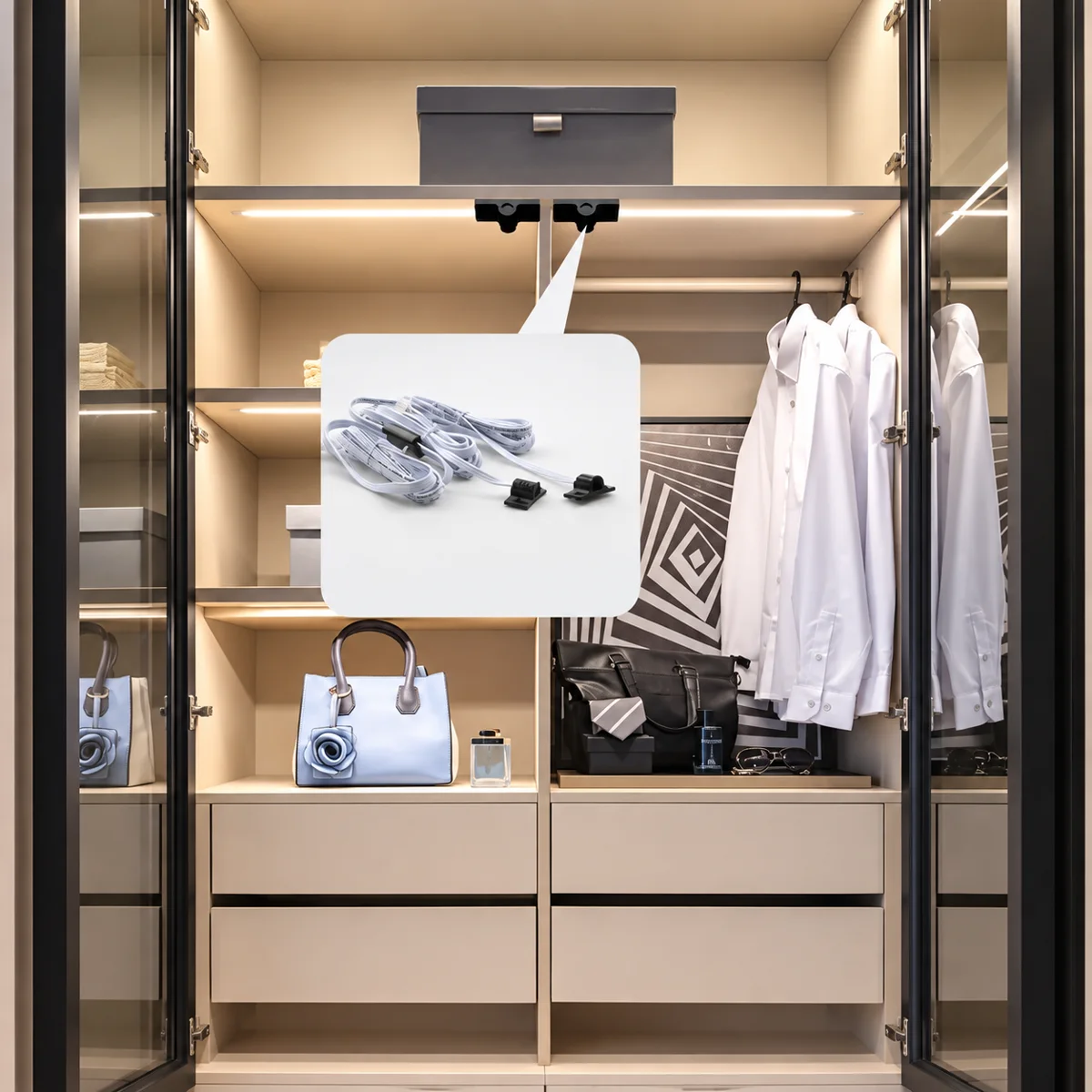

Where it is used
- Double-door kitchen wall cabinets
- Double-door wardrobes
- Sideboards and TV cabinets with double doors
OEM options for this model
- Lead length and connector (DC, Dupont, SM)
- Housing colour
- Sensing distance within the model's range
- Logo and packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Where do I mount it?
Fix it inside the cabinet facing the back of the doors, so the closed doors sit within 6-10 cm of the sensor.
Can I use it on a single door?
This version is listed for double doors. For single-door cabinets, ask us about the FVD03-A versions.
Which power supply do I need?
A 12V or 24V DC constant-voltage supply matching your LED strip, with the strip load kept within the listed 60W / 100W.
What is the MOQ?
Our Alibaba.com store starts from 2 pcs for FVD03-B-V1.
