1-Channel 30A Stair Step LED Controller with RF Remote, 12/24V
Drive a whole staircase strip from one compact controller and let the owner set brightness and effect speed from a remote. The 30A output handles long step runs at 12V or 24V.
Wholesale orders welcome: standard models from 2 pcs, shipped in 7-15 days. We confirm price, lead time and custom options in the quote.
Why buyers choose this model
30A output gives up to 360W at 12V or 720W at 24V, from a black 87 x 63 x 20 mm housing that is easy to hide.

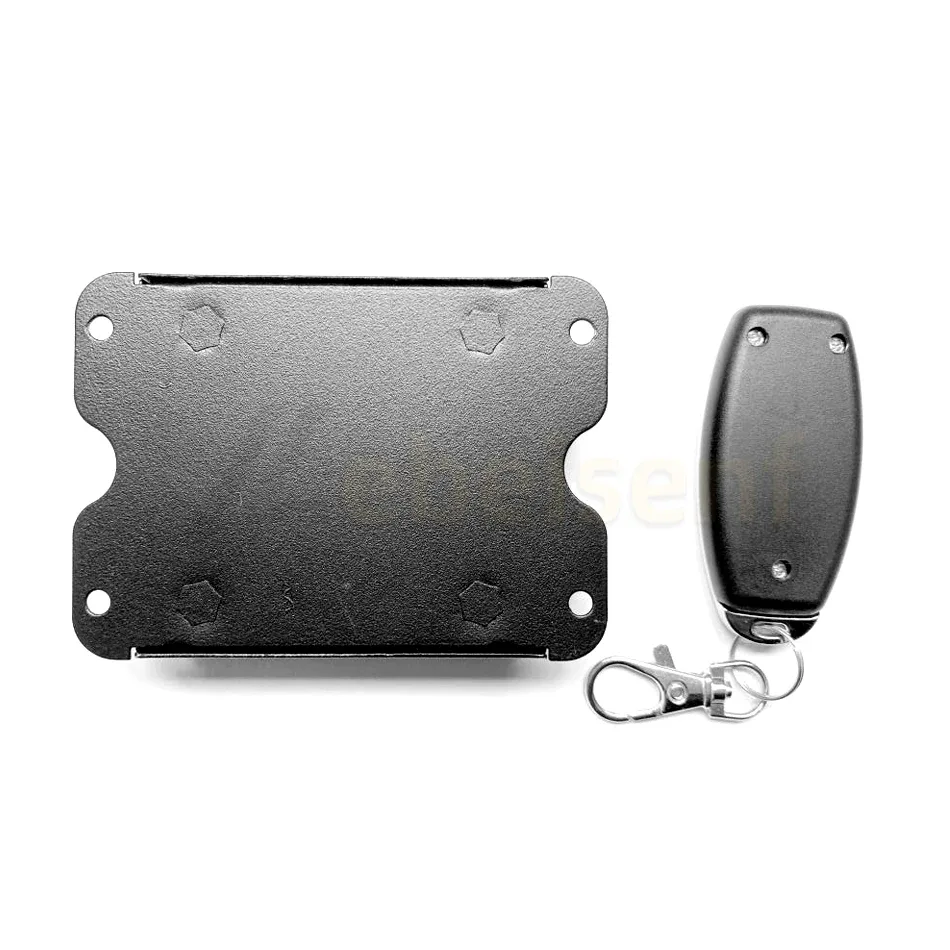

The 3-key RF remote sets brightness and speed from 0-100%, so end users adjust the stairs without reaching the controller.
MOQ is 1 pcs, so you can try it on one staircase before quoting a project. For single-colour constant-voltage strip.
This single-channel controller drives a constant-voltage PWM LED run on stairs and steps, with a 3-key RF remote to set brightness and effect speed. It runs on DC12V-24V with 30A output, which the listing gives as up to 360W at 12V and 720W at 24V. The remote works at up to 50 m, and the black housing measures 87 x 63 x 20 mm.
Key features
- 1 output channel for single-colour, constant-voltage LED
- 3-key RF remote, range listed at 50 m
- Adjusts brightness and speed from 0-100%
- DC12V-24V input, 30A output
- Load: up to 360W at 12V, up to 720W at 24V

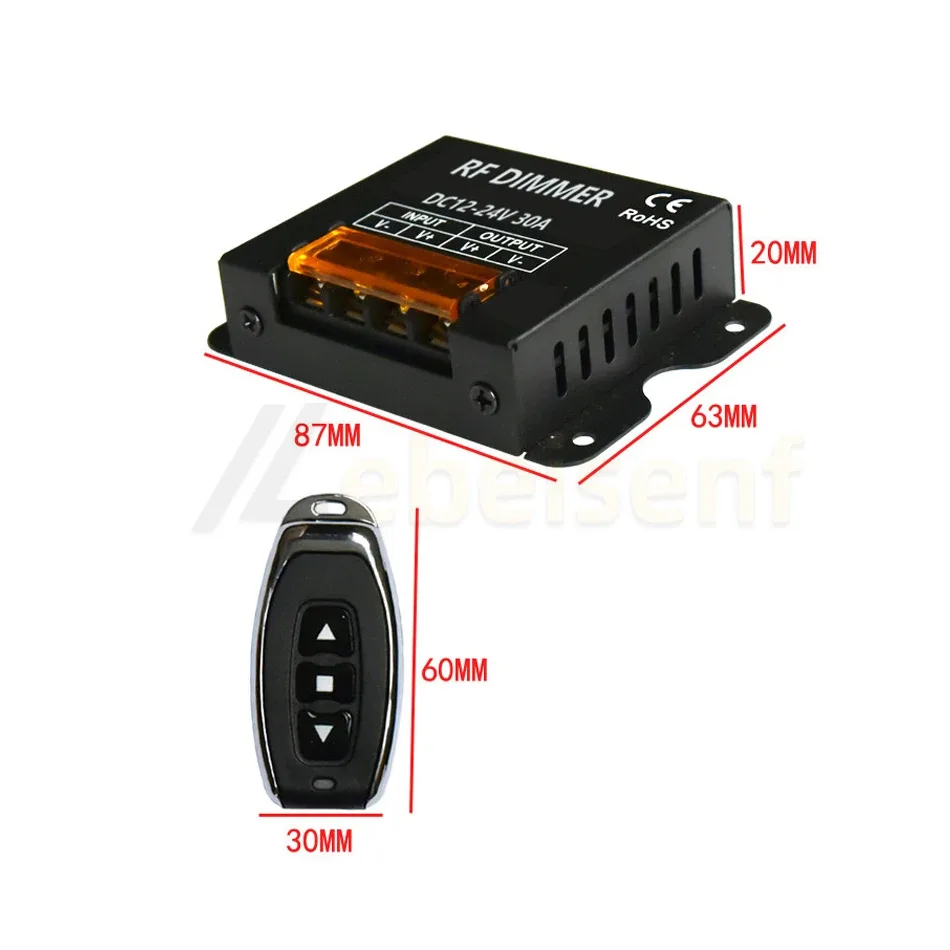

- Black housing, 87 x 63 x 20 mm
Specifications
| Input voltage | 12V-24V DC |
| Max load | 12V≤360W; 24V≤720W |
| Material | Plastic |
Specifications from our Alibaba.com product listing. Confirm the version you need before ordering.
Where it is used
- Stair step and ladder lighting on one LED run
- Corridor and landing strips
- Indoor single-colour strip runs needing remote dimming
OEM options for this model
- Remote key layout
- Logo on remote and box
- Packaging
Options depend on order quantity; we confirm what can change for this model in the quote.
Frequently asked questions
Is this a step-by-step controller for each stair?
It has one output channel, so all connected lights respond together. For tread-by-tread sequencing, ask us about our multi-channel stair controllers.
How much LED can I connect?
Up to 360W on 12V or 720W on 24V. Send us your strip wattage and length and we confirm the load.
Which strips does it work with?
Single-colour constant-voltage PWM LED strips on 12V or 24V DC.
What is the MOQ?
Our Alibaba.com store lists an MOQ of 1 pcs for this model. Ask us about samples for testing before a volume order.
